Mimosa B5-Lite, 750Mbps PtP backhaul (complete link)
We are sorry, this product is no longer in our offer.
Mimosa B5-Lite, 750Mbps PtP backhaul (complete link)
×
0/0
Sale
PCU5E-1YW-MS
0.61 EUR excl. VAT
0.74 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.69 EUR excl. VAT
4.46 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Wireless features
Sensitivity [dBm]:
-93
Cross-Pol Isolation [dB]:
20
Wireless frequency:
5 GHz
WiFi standards:
802.11ac
Transmission speed - 5GHz [Mb/s]:
866
Security:
128bit AES, 256bit AES
Elevation beam width (-6dB) [°]:
14
Azimuth beam width (-6dB) [°]:
14
5GHz MIMO:
2 x 2
Type of antenna:
Built-in
Antenna gain [dBi]:
20
Connectors and Interfaces
LAN speed:
(1) 10/100/1000Mbps
Gigabit LAN:
Yes
Power
Power over Ethernet:
48 .. 56V DC
PoE type:
PoE-Out (only)
Max. power consumption [W]:
15
Physical characteristics
Purpose:
Outdoor
Collar:
Yes
Buttons:
Reset
Operating temperature [°C]:
-40 up to 55
Weight [g]:
720
Width [mm]:
260
Height [mm]:
260
Depth [mm]:
153
Software
Operating mode:
Client, Access Point
IPv6 support:
Yes
Default IP address:
192.168.1.20
Default login and password:
Is set by the user at the first startup
Product description

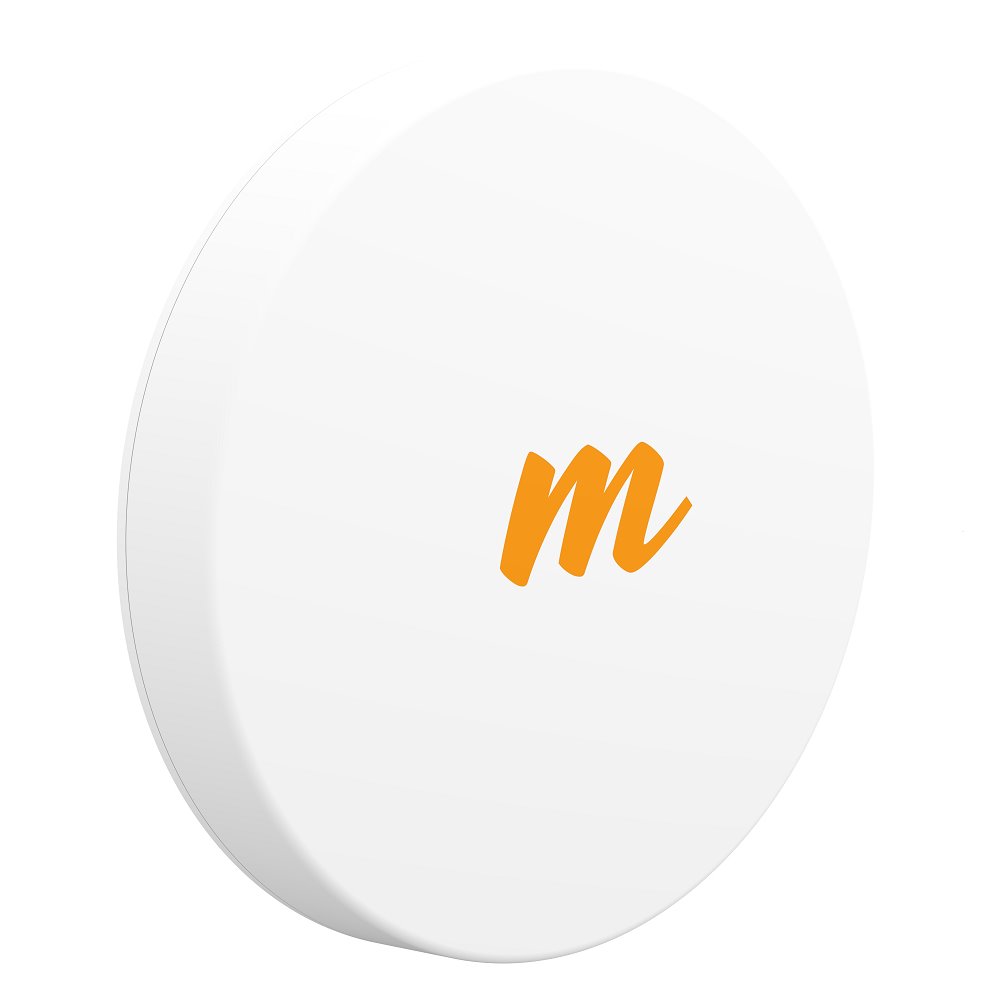

The award winning Mimosa B5-Lite is the easiest, fastest, and most affordable wireless bridge kit available on the market. This complete kit provides everything anyone needs to easily deliver up to 750 Mbps of bandwidth for short range link applications*. *Approximately 0 to 5 km, distances and speeds may vary due to local regulatory restrictions.
Rugged and Affordable
Outdoor rugged designs typically come at significant cost. The B5-Lite challenges this norm by handling extreme outdoor conditions with incredible affordability.
Just Mount and Go

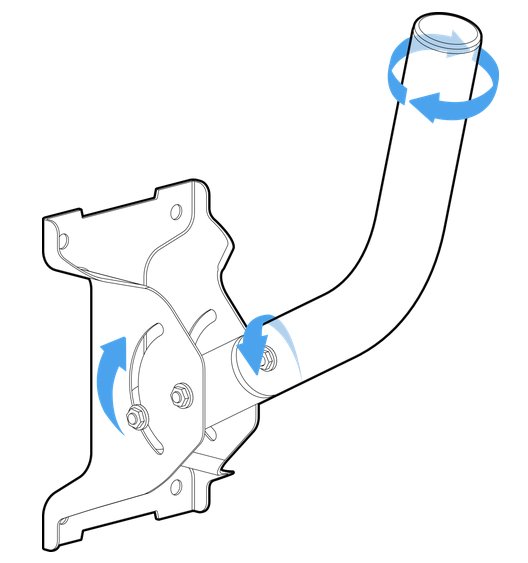

A complete kit with super compact integrated antennas and wall mounts, makes it incredibly easy to get connected quickly. With an optional pole mounting kit, the B5-Lite easily can be mounted on street poles (horizontal or vertical), great for any public safety and security camera application.
Incredibly Fast. Incredibly Affordable.
Part of the award winning Mimosa backhaul product family, the B5-Lite is an incredibly flexible way to deliver high performance, low latency fixed wireless connectivity at an unprecedented cost. Simple, affordable, rock solid. This is Real Big Wireless at a really low price.

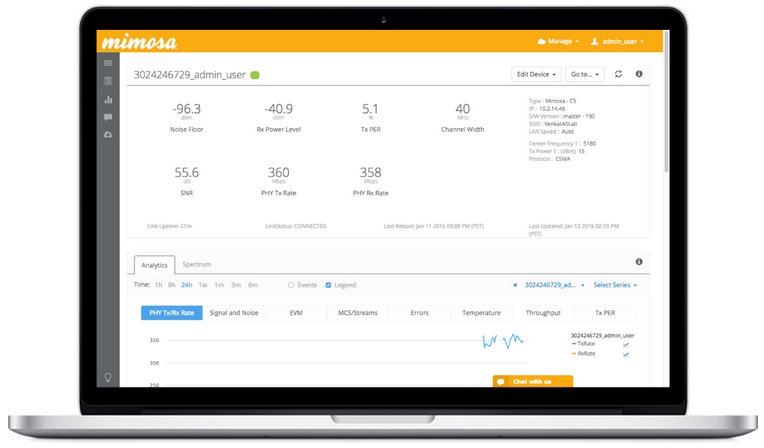

Monitor With Ease, and So Much More
Immediately after install, your links are ready to be monitored via the free Mimosa Cloud service. With vast data collection and analysis, assessing link health and identifying potential problems has never been easier.

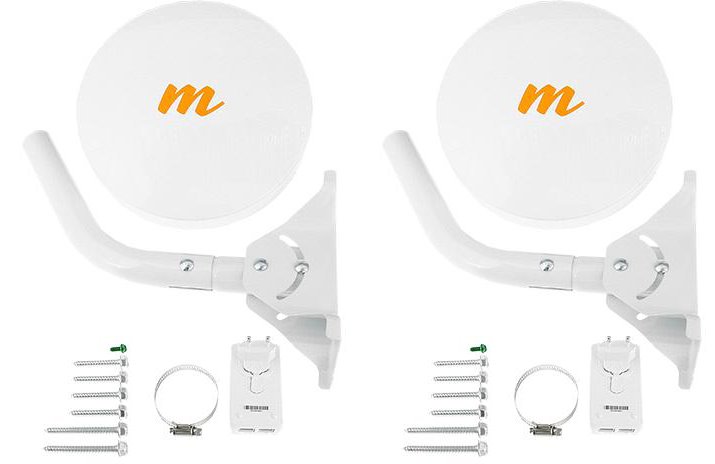

Package contains
Download
DatasheetGPSR
