Mimosa B6x - Bazar
Mimosa B6x - Bazar
×
0/0
Unpacked
Your price excl. VAT
553.27 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 553.34 EUR |
| Your price incl. VAT (21%) | 669.54 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Mimosa |
|
|---|---|---|
| Code | B10160102 | |
| Part No. | B-100-00116(B6x) | |
| Warranty | 24 months | |
You have a choice of 2 variantscompare all
B-100-00116(B6x)
Unpacked
553.27 EUR
100-00088(N5-X20)
76.39 EUR excl. VAT
92.67 EUR incl. VAT
Not in stock
100-00089(N5-X25)
102.30 EUR excl. VAT
124.02 EUR incl. VAT
Expected 11.7.2025
100-00127(X2C Adapter/M)
32.36 EUR excl. VAT
39.40 EUR incl. VAT
Expected 20.12.2025
PCU5E-1YW-MS
0.62 EUR excl. VAT
0.75 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.71 EUR excl. VAT
4.49 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Wireless features
Sensitivity [dBm]:
-56
Frequency range [MHz]:
5150 - 6425
Maximum modulation:
1024 QAM
Wireless frequency:
5 GHz, 6 GHz
WiFi standards:
Mimosa SRS, WiFi Interop
Transmission speed - 5GHz [Mb/s]:
4300
Transmission speed - 6GHz [Mb/s]:
4300
Tx power 5GHz [dBm]:
24
Tx power 6GHz [dBm]:
24
Security:
128bit AES
5GHz MIMO:
4 x 4
6GHz MIMO:
4 x 4
Type of antenna:
Built-in, Detachable
Antenna gain [dBi]:
8
Connectors and Interfaces
RF connectors:
Twist-on port (Mimosa)
LAN speed:
(1) 10/100/1000Mbps
Gigabit LAN:
Yes
Optical interfaces:
(1) 10Gbps
GPS modul:
Yes
Power
Power over Ethernet:
48 .. 56V DC
PoE type:
PoE-In (only)
Max. power consumption [W]:
30
Power via connector/terminal:
48 .. 56V DC
Physical characteristics
Protection class:
IP67
Purpose:
Outdoor
Buttons:
Reset
Operating temperature [°C]:
-40 up to 55
Weight [g]:
1700
Width [mm]:
167
Height [mm]:
290
Depth [mm]:
89
Software
Operating mode:
Bridge
Default IP address:
Dynamic from DHCP, 192.168.1.10
Default login and password:
Is set by the user at the first startup
Product description
The goods have been unpacked, may not be in the original packaging, or the packaging may be damaged. However, the goods are complete and without any damage.
The product is only unpacked and it was shown on the exhibition.

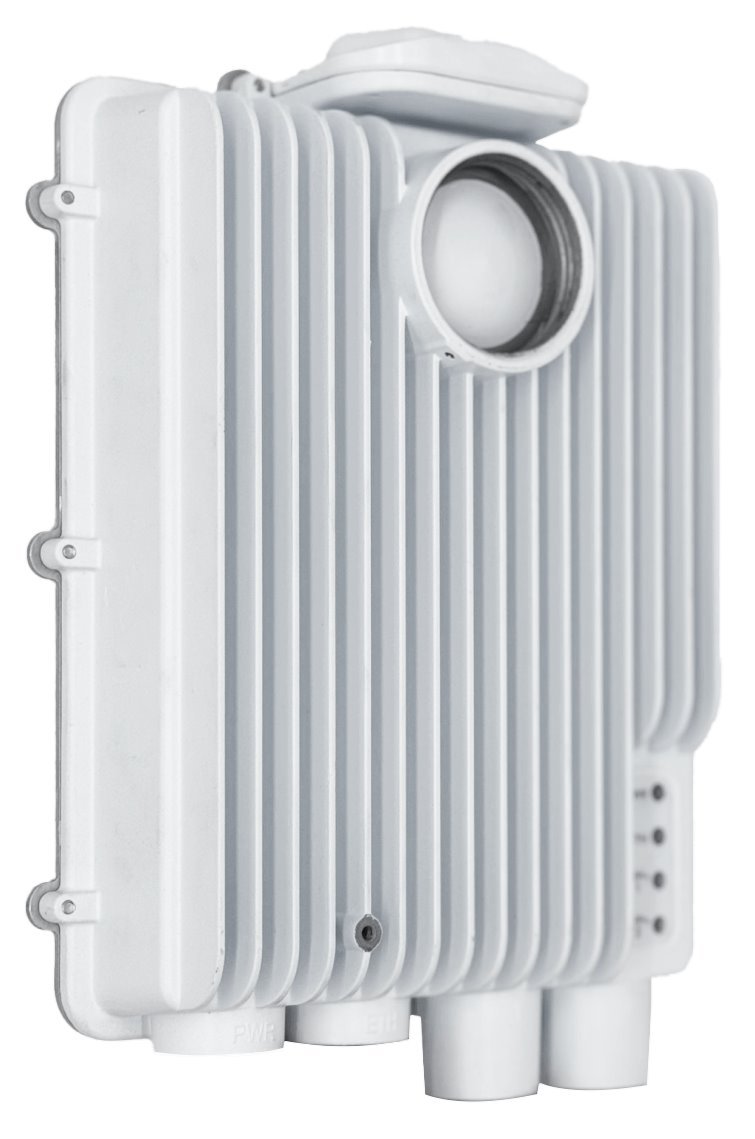

Mimosa B6x is an outdoor PtP unit. It operates in the 5.15 to 6.425 GHz band. The unit can be connected to N5-X twist on compatible antennas (antenna not included). It has the new Wi-Fi 6E technology with OFDMA. With access to the 6 GHz band, the B6x achieves extremely low latency (1ms) with speeds up to 3.14 Gbps. The transmit power is 24 dBm. The advantage is also higher reliability due to new anti-noise features. High resistance is guaranteed by IP67 certification.
Key features:
Package Contents:
Download
DatasheetGPSR
