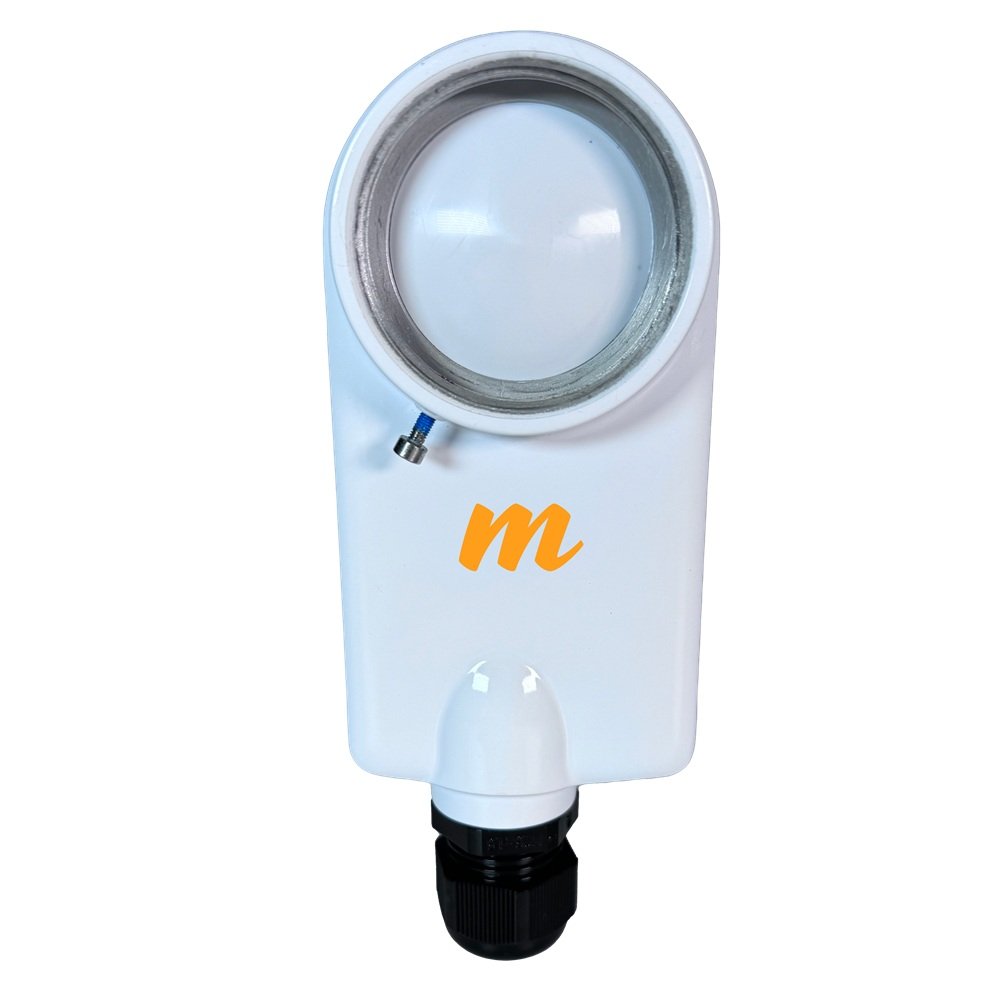

Mimosa C5x, modular radio for PtP and PtMP (uses with N5-X** antennas)
Your price excl. VAT
102.76 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 102.83 EUR |
| Your price incl. VAT (21%) | 124.42 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Mimosa |
|
|---|---|---|
| Code | 10160052 | |
| Part No. | 100-00101(C5x IP67) | |
| Warranty | 24 months | |
100-00086(N5-X12)
16.58 EUR excl. VAT
20.30 EUR incl. VAT
In Stock
100-00087(N5-X16)
28.28 EUR excl. VAT
34.46 EUR incl. VAT
In Stock
100-00088(N5-X20)
76.72 EUR excl. VAT
93.07 EUR incl. VAT
Not in stock
100-00089(N5-X25)
102.76 EUR excl. VAT
124.58 EUR incl. VAT
Expected 27.10.2025
100-00039(NID)
13.00 EUR excl. VAT
15.81 EUR incl. VAT
In Stock
100-00091(N5-X25)
387.57 EUR excl. VAT
469.20 EUR incl. VAT
Expected 27.10.2025
STD-21-UM
33.97 EUR excl. VAT
41.35 EUR incl. VAT
In Stock
STD-24-UM
39.17 EUR excl. VAT
47.64 EUR incl. VAT
In Stock
STD-27-UM
39.17 EUR excl. VAT
47.64 EUR incl. VAT
In Stock
TPA-AMU-V2
13.04 EUR excl. VAT
15.85 EUR incl. VAT
In Stock
B-100-00089(N5-X25)
84.48 EUR excl. VAT
102.46 EUR incl. VAT
In Stock
100-00090(N5-X20)
297.85 EUR excl. VAT
360.64 EUR incl. VAT
Not in stock
100-00124(N5-X30)
429.09 EUR excl. VAT
519.44 EUR incl. VAT
Expected 27.10.2025
100-00127(X2C Adapter/M)
32.51 EUR excl. VAT
39.58 EUR incl. VAT
Expected 27.10.2025
B-100-00087(N5-X16)
22.51 EUR excl. VAT
27.48 EUR incl. VAT
In Stock
TPA-C5x
13.04 EUR excl. VAT
15.85 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.62 EUR excl. VAT
0.75 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.74 EUR excl. VAT
4.53 EUR incl. VAT
In Stock
Parameters
Download
Video
GPSR
Technical parameters
Wireless features
Sensitivity [dBm]:
-93
Wireless frequency:
5 GHz
WiFi standards:
Mimosa SRS, WiFi Interop
Transmission speed - 5GHz [Mb/s]:
866
Tx power 5GHz [dBm]:
27
Security:
WPA2 PSK & Enterprise 802.1x;Radius provisioning, COA, DM; 128-bit AESwith hardware acceleration
Elevation beam width (-6dB) [°]:
58
Azimuth beam width (-6dB) [°]:
58
5GHz MIMO:
2 x 2
Type of antenna:
Built-in
Internal antennas:
1

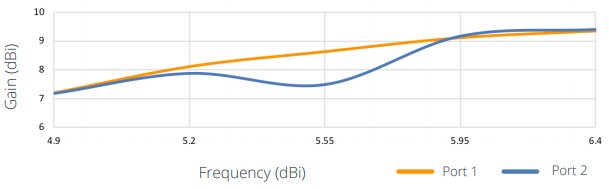

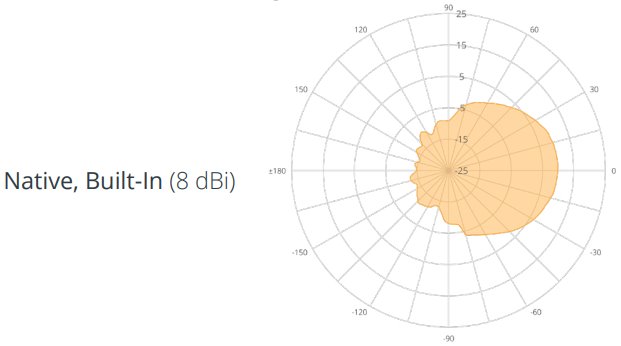

Antenna gain [dBi]:
8
Connectors and Interfaces
RF connectors:
Twist-on port (Mimosa)
LAN speed:
(1) 10/100/1000Mbps
Gigabit LAN:
Yes
Power
Power over Ethernet:
24 .. 56V DC
PoE type:
PoE-In (only)
Max. power consumption [W]:
12,9
Physical characteristics
Purpose:
Outdoor
Operating temperature [°C]:
-40 up to 55
Weight [g]:
370
Width [mm]:
70
Height [mm]:
175
Depth [mm]:
61
Software
Operating mode:
Bridge, Client
Video
Product description

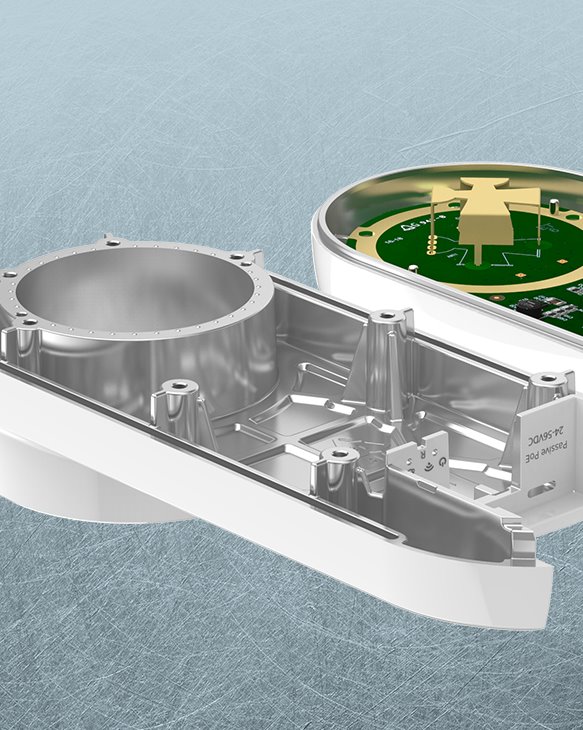

The Mimosa C5x is the industry’s most versatile, modular, radio solution with five gain options (8, 12, 16, 20 and 25dBi). The ultra-rugged solution provides extended frequency operation from 4.9–6.4 GHz, with best-in-class noise immunity. Delivering the ultimate in flexibility and value, the C5x is the go-to solution for 5 GHz deployments.

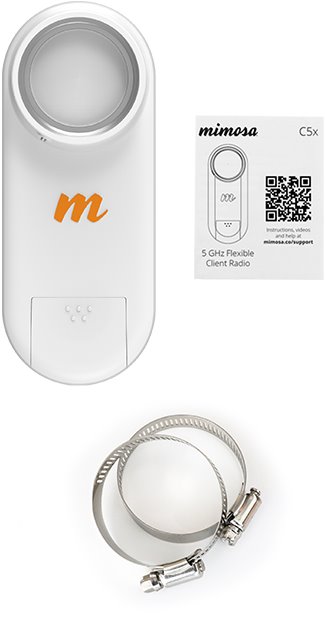

Package contains
Download
DatasheetGPSR
