Mimosa C6 - DEMO
Mimosa C6 - DEMO
×
0/0
Used
Your price excl. VAT
1 411.22 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 1 411.29 EUR |
| Your price incl. VAT (21%) | 1 707.66 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Mimosa |
|
|---|---|---|
| Code | D-10160106 | |
| Part No. | D-100-60223-02 (C6) | |
| Warranty | 24 months | |
PCU5E-1YW-MS
0.62 EUR excl. VAT
0.75 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.71 EUR excl. VAT
4.49 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Wireless features
F/B ratio [dB]:
30
Cross-Pol Isolation [dB]:
20
Frequency range [MHz]:
5150 - 6425
Maximum modulation:
1024 QAM
Wireless frequency:
5 GHz
WiFi standards:
Mimosa SRS, WiFi Interop
Transmission speed - 5GHz [Mb/s]:
2402
Tx power 5GHz [dBm]:
24
Elevation beam width (-6dB) [°]:
15
Azimuth beam width (-6dB) [°]:
90
5GHz MIMO:
4 x 4
Type of antenna:
Built-in
Antenna gain [dBi]:
14
Connectors and Interfaces
LAN speed:
(1) 10/100/1000Mbps
Gigabit LAN:
Yes
Power
Power over Ethernet:
50V DC
PoE type:
PoE-In (only)
Max. power consumption [W]:
35
Physical characteristics
Protection class:
IP67
Purpose:
Outdoor
Operating temperature [°C]:
-40 up to 55
Weight [g]:
2500
Width [mm]:
275
Height [mm]:
215
Depth [mm]:
80
Software
Operating mode:
Client
Product description

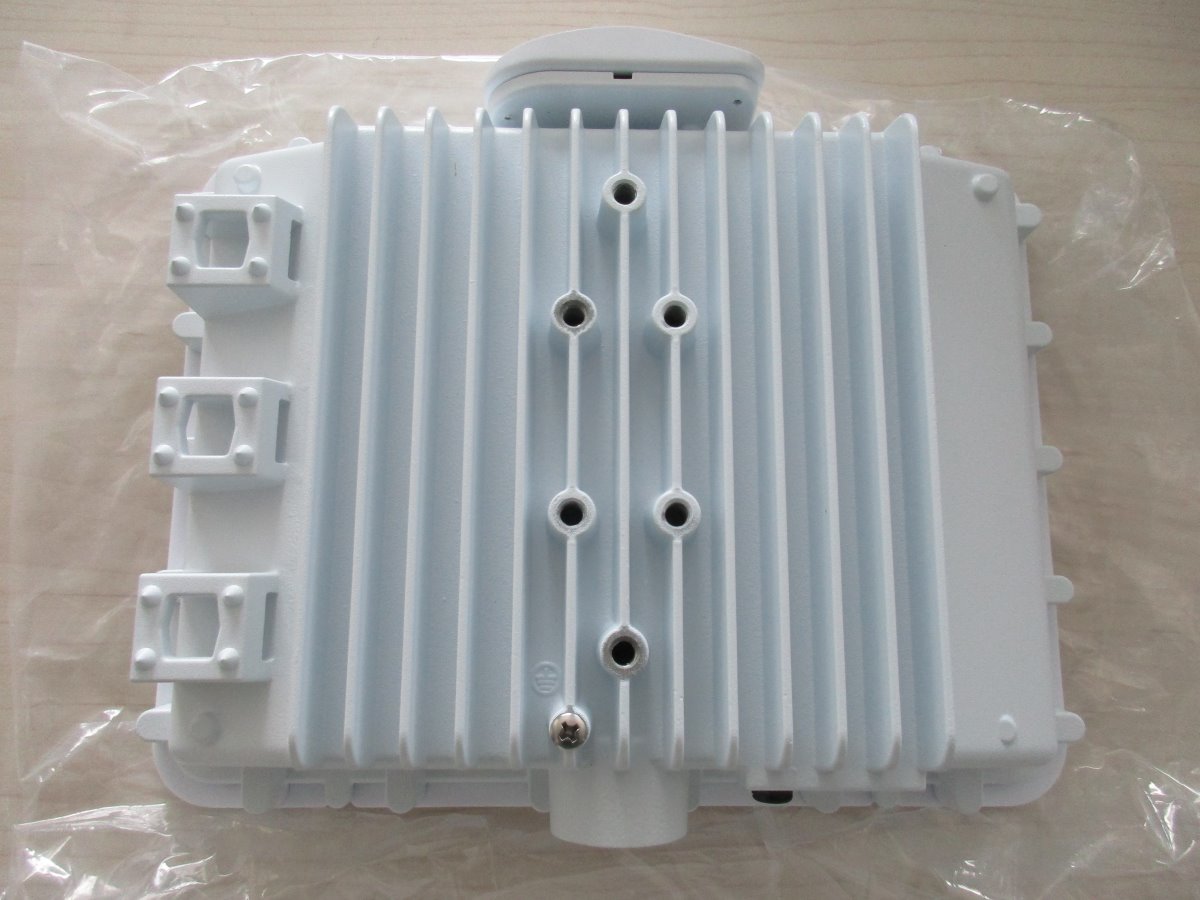

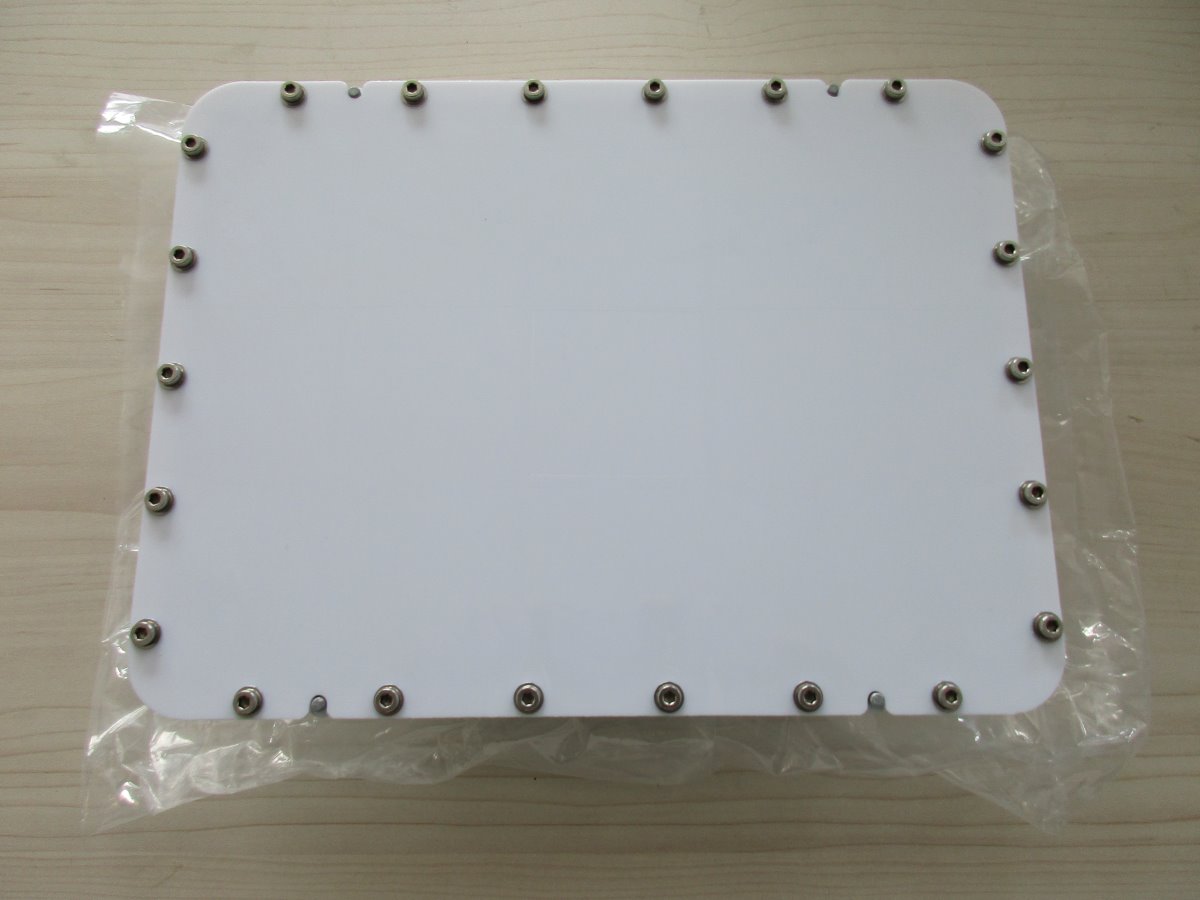

The product is fully functional and used at the exhibition. It may not contain complete accessories or original packaging.
The product has original package, it is complete, but it was used on the exhibition.

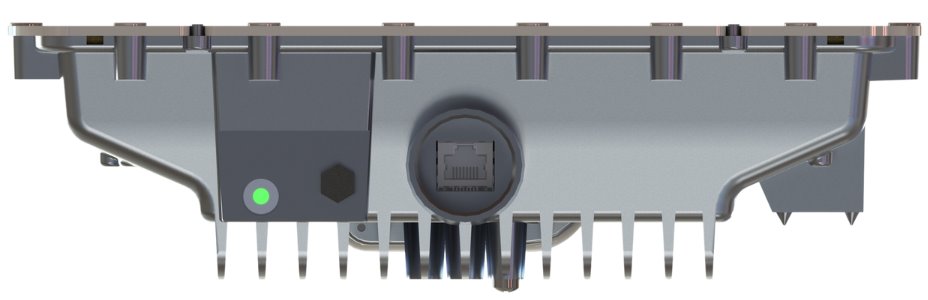

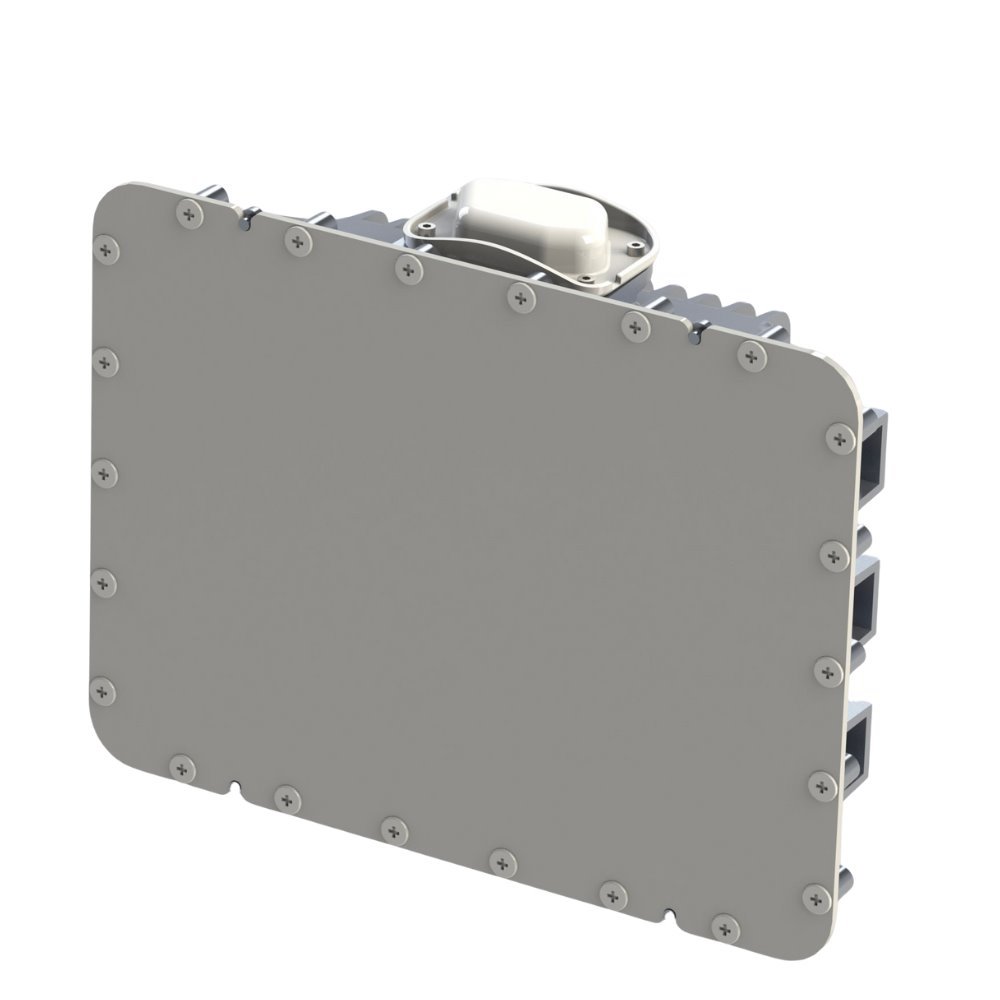

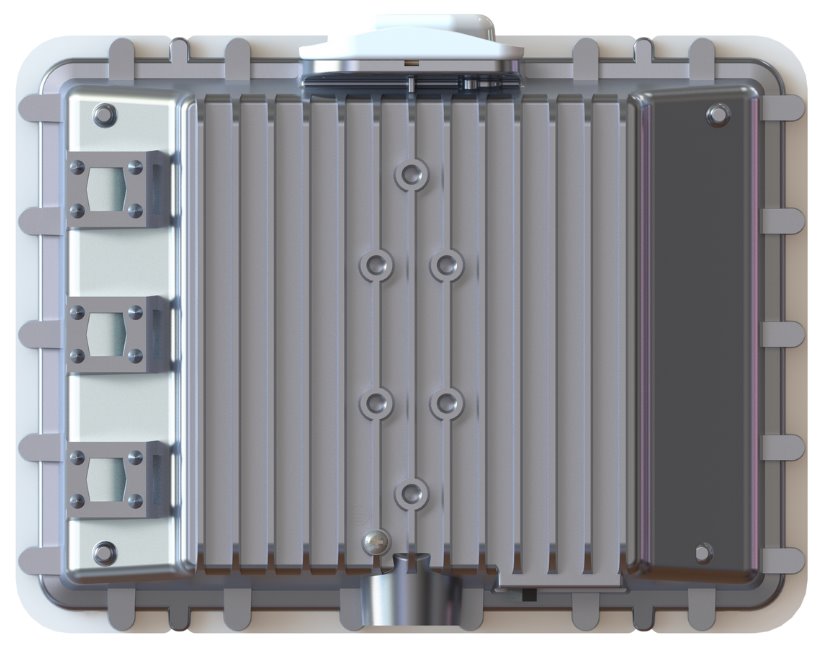

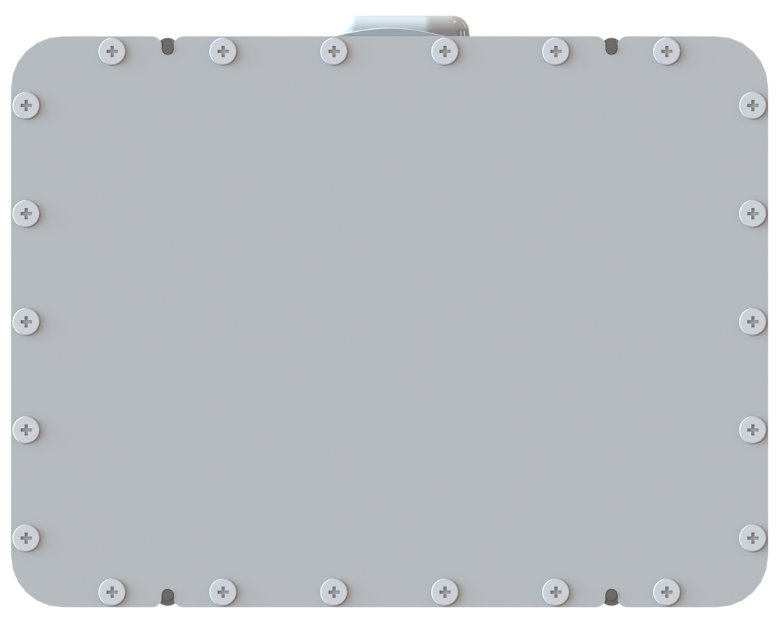

The Mimosa C6 is an outdoor client unit in a rugged chassis with high resistance to surrounding interference, IP67 rating, and an integrated 4x4 MIMO antenna with a 14 dBi gain (up to 20dBi with beamforming). The advanced antenna array with beamforming allows the unit to function even in challenging Non-Line-Of-Sight conditions. Thanks to these features, the unit can achieve speeds of up to 2500 Mbps at 160 MHz and operate in the frequency range of 5150 to 6425 MHz. For network connection, it is equipped with a Gigabit Ethernet port supporting passive PoE 50V. The maximum power consumption of the unit is 35W.
Key Features
Download
DatasheetGPSR
