Mimosa C6x - Bazar
Your price excl. VAT
176.51 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 176.58 EUR |
| Your price incl. VAT (21%) | 213.66 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Mimosa |
|
|---|---|---|
| Code | B10160101 | |
| Part No. | B-100-00111(C6x) | |
| Warranty | 12 months | |
You have a choice of 2 variantscompare all
Rozbalené
B-100-00111(C6x)
Unpacked
176.51 EUR
100-00086(N5-X12)
16.51 EUR excl. VAT
20.22 EUR incl. VAT
Expected 20.12.2025
100-00088(N5-X20)
76.39 EUR excl. VAT
92.67 EUR incl. VAT
Not in stock
100-00089(N5-X25)
102.30 EUR excl. VAT
124.02 EUR incl. VAT
Expected 11.7.2025
100-00087(N5-X16)
28.17 EUR excl. VAT
34.33 EUR incl. VAT
Expected 11.7.2025
100-00090(N5-X20)
296.49 EUR excl. VAT
358.99 EUR incl. VAT
Not in stock
POE-50-60W
21.91 EUR excl. VAT
26.60 EUR incl. VAT
In Stock
100-00092(FlexiMount XL)
11.30 EUR excl. VAT
13.67 EUR incl. VAT
Expected 11.7.2025
B-100-00113(A6)
1 617.84 EUR excl. VAT
1 957.67 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.62 EUR excl. VAT
0.75 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.71 EUR excl. VAT
4.49 EUR incl. VAT
In Stock
Parameters
Download
Video
GPSR
Technical parameters
Wireless features
Wireless frequency:
5 GHz
WiFi standards:
Mimosa SRS, WiFi Interop
MU-MIMO:
Yes
Transmission speed - 5GHz [Mb/s]:
2402
Tx power 5GHz [dBm]:
27
Security:
128bit AES
5GHz MIMO:
2 x 2
Type of antenna:
Detachable
Internal antennas:
4
Antenna gain [dBi]:
8
Connectors and Interfaces
RF connectors:
Twist-on port (Mimosa)
LAN speed:
(1) 10/100/1000Mbps
Gigabit LAN:
Yes
Power
Power over Ethernet:
48 .. 56V DC
PoE type:
PoE-In (only)
Max. power consumption [W]:
20
Physical characteristics
Protection class:
IP67
Purpose:
Outdoor
Operating temperature [°C]:
-40 up to 55
Weight [g]:
700
Width [mm]:
113
Height [mm]:
178
Depth [mm]:
67
Software
Operating mode:
Client
IPv6 support:
Yes
Video
Product description
The goods have been unpacked, may not be in the original packaging, or the packaging may be damaged. However, the goods are complete and without any damage.

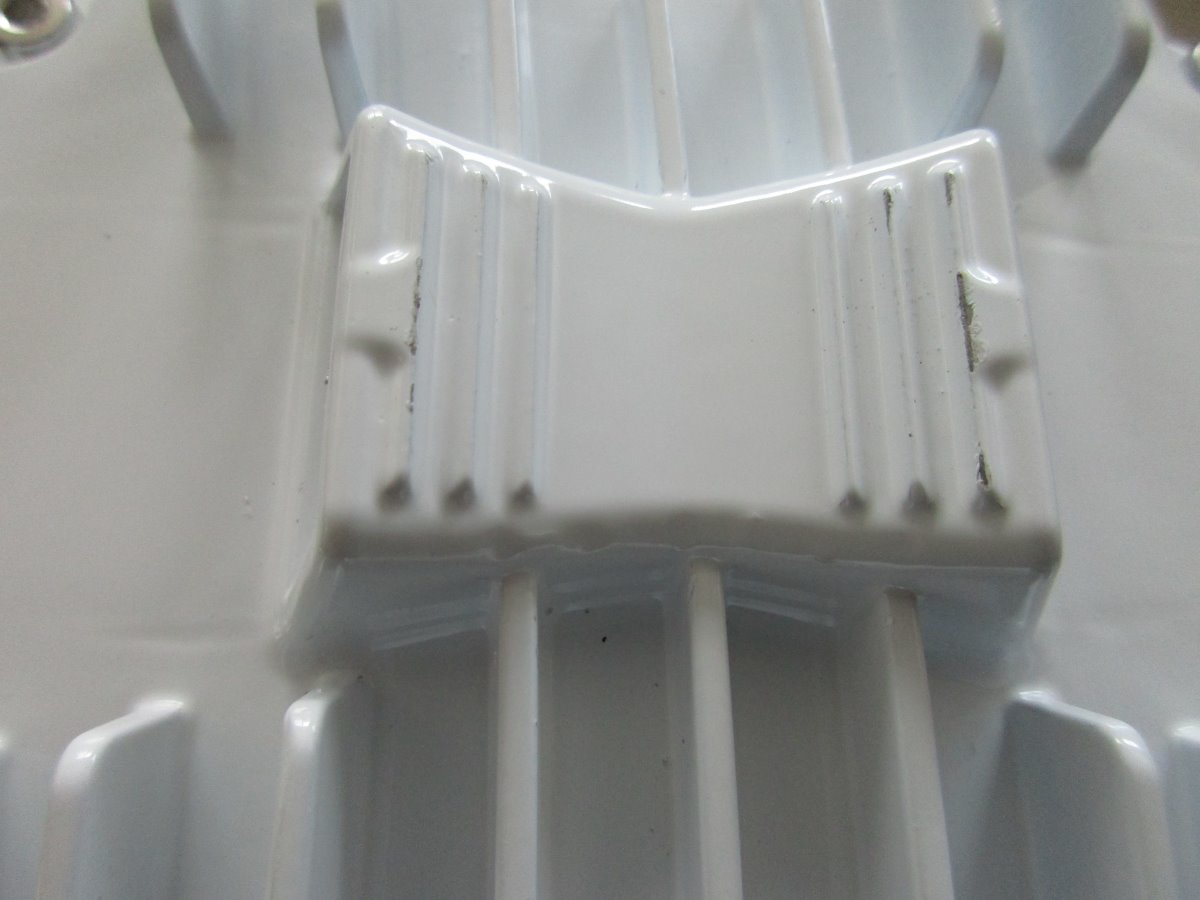

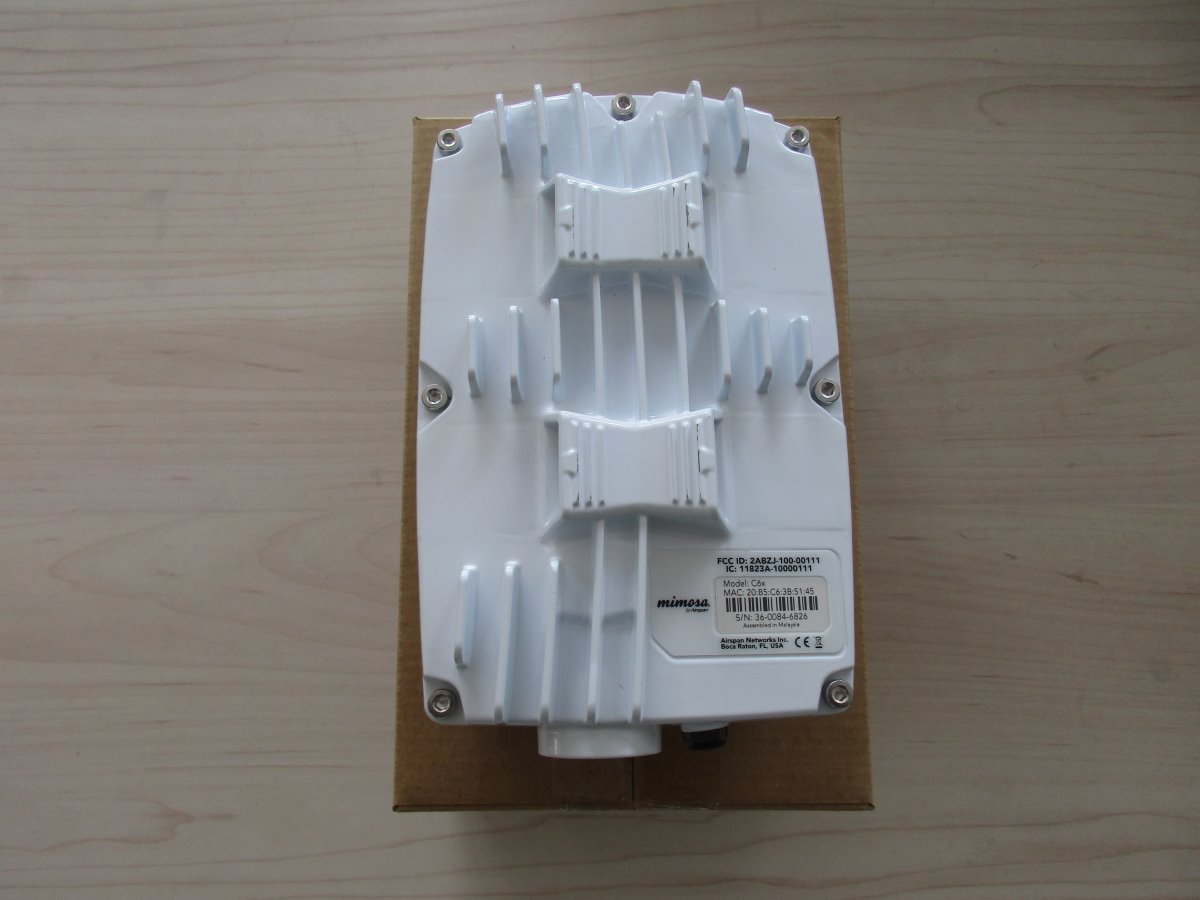

Product condition: Used during a promotional event indoors, shows very light signs of installation.

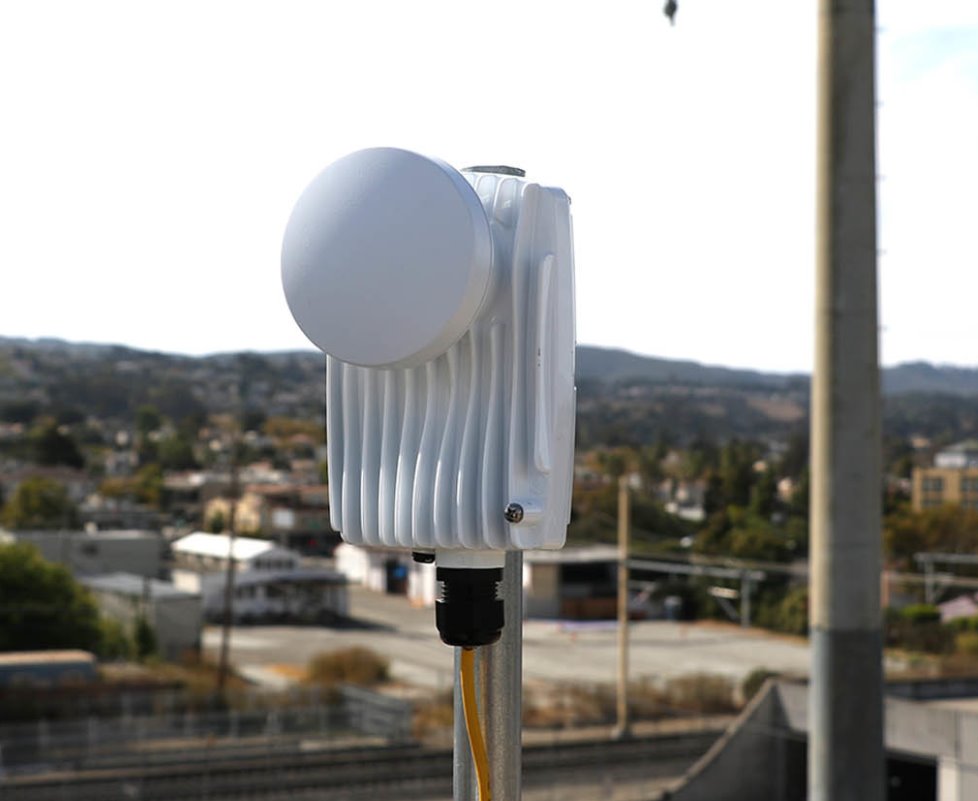

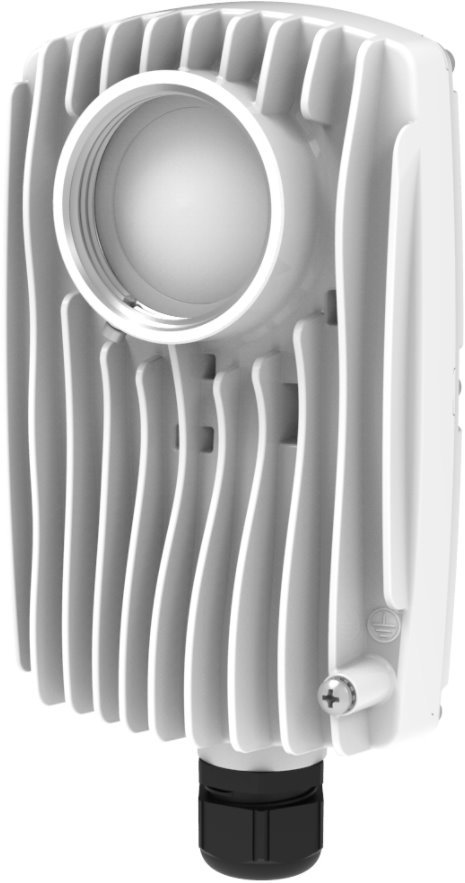

Mimosa C6x is an outdoor client unit in a robust chassis with high resistance to ambient interference, IP67 protection with integrated antenna with gain 8 dBi, the possibility of mounting a directional antenna from a wide range (12 to 25 dBi), support Wi-Fi 6E OFDMA technology (built on 802.11ax), including older Wi-Fi5/6 standards. The unit has a 2×2 MIMO radio part with a modulation speed of 2402 Mbps at 160 MHz and is able to operate in the frequency band 5150 to 6425 MHz. For network connection, the C6x unit has one Gigabit Ethernet with passive PoE support 48 to 56 V.
