Mimosa C6x - Lite Edition

Product description

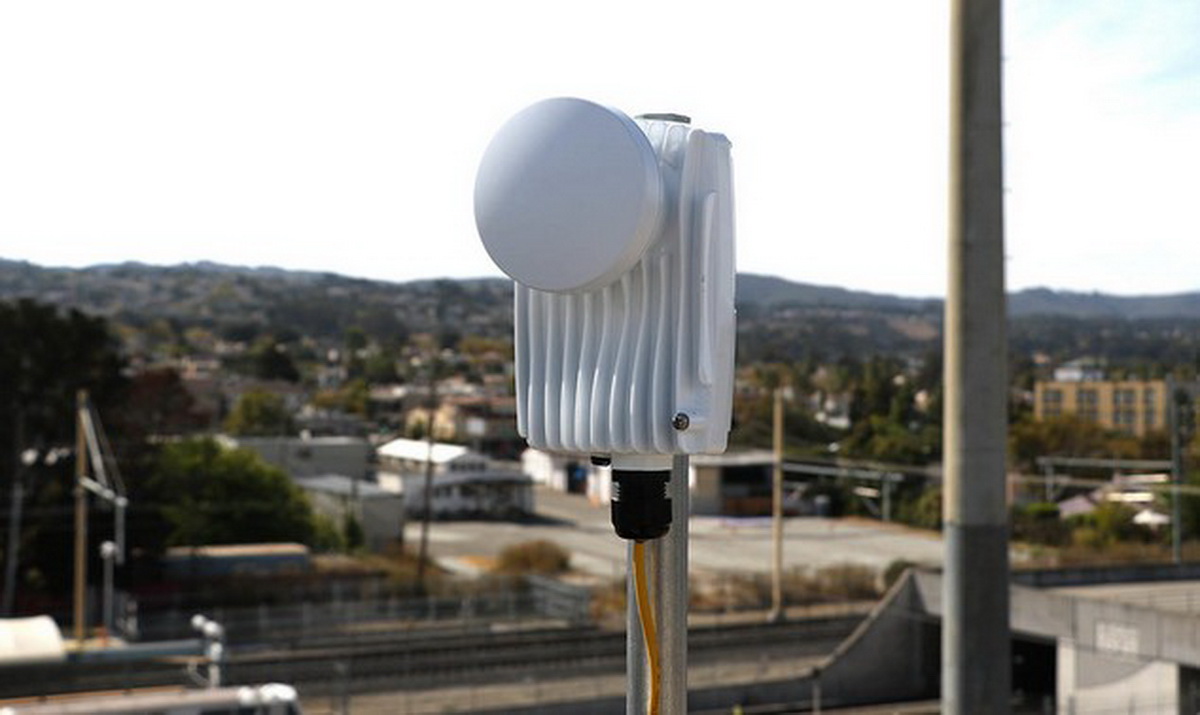

The Mimosa C6x Lite Edition: the next-generation value leader for fixed wireless. Delivering up to 750 Mbps in Point to Multipoint mode and up to 1.0 Gbps in Point to Point mode, the C6x LE is purpose-built for cost-effective deployments. With streamlined 80 MHz channel operation, adaptable range options, and a rugged IP67-rated design, it’s the ideal workhorse for scalable broadband connectivity. The unit has a 2×2 MIMO radio part with a modulation speed of 1201 Mbps and is able to operate in the frequency band 5150 to 6425 MHz. The unit has one Gigabit ethernet port with support passive power supply PoE 24 V (POE injector 24 V is not included).

Modular antenna solution

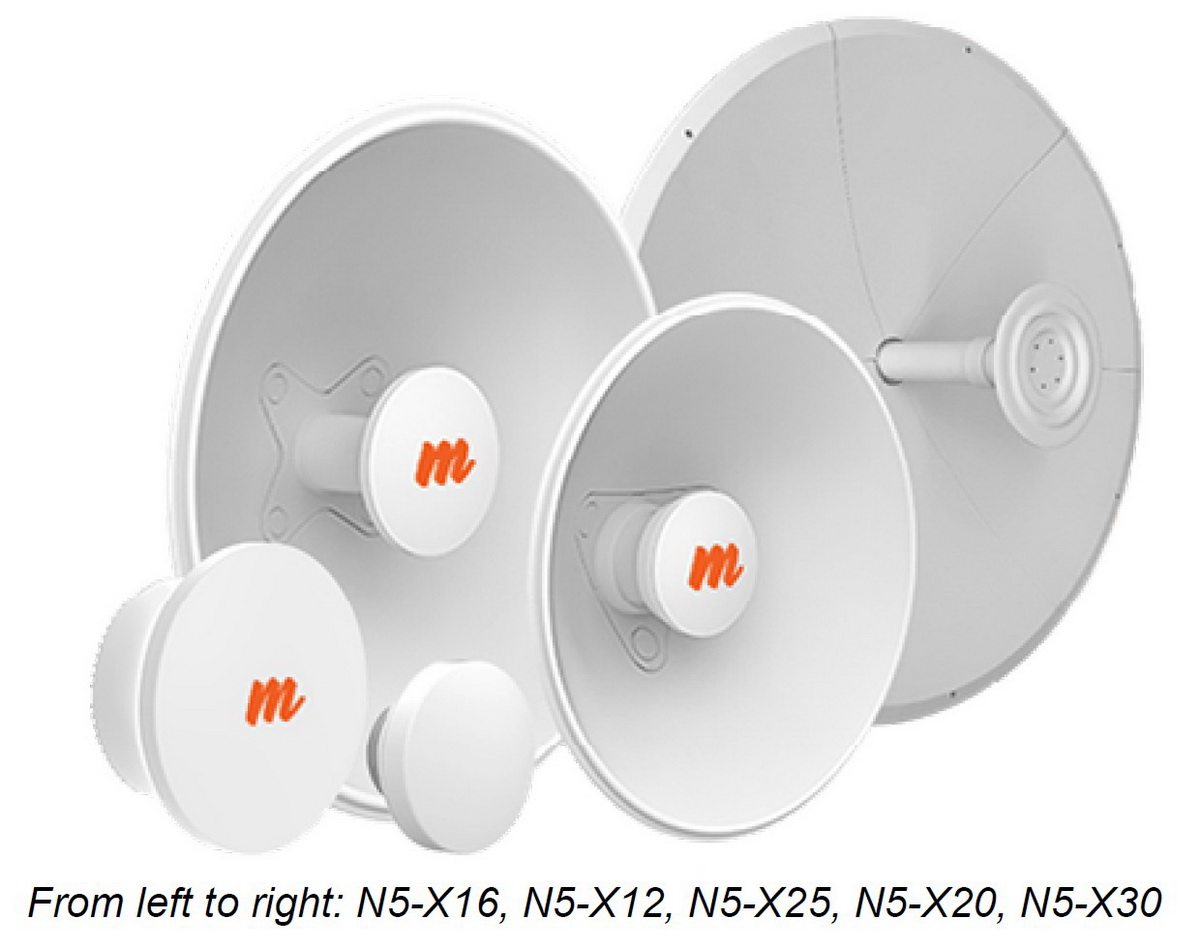

The C6x LE unit features an integrated antenna with a gain of 8 dBi, and thanks to the twist-on connector, it supports N5-X antennas with gain of 12, 16, 20, 25, and 30 dBi.

Key features

• Frequency Range 5150 to 6425 MHz
• Durable aluminum chassis, degree of protectio IP67, operating temperature - 40 až + 55° C
• Podpora Point to Point a Point to MultiPoint
• 2 x 2 MIMO, 1201 Mbps, 80 MHz, 1024 QAM
• Max Output Power 27 dBm

Package contents

• Device
• (2) Metal cable tie
