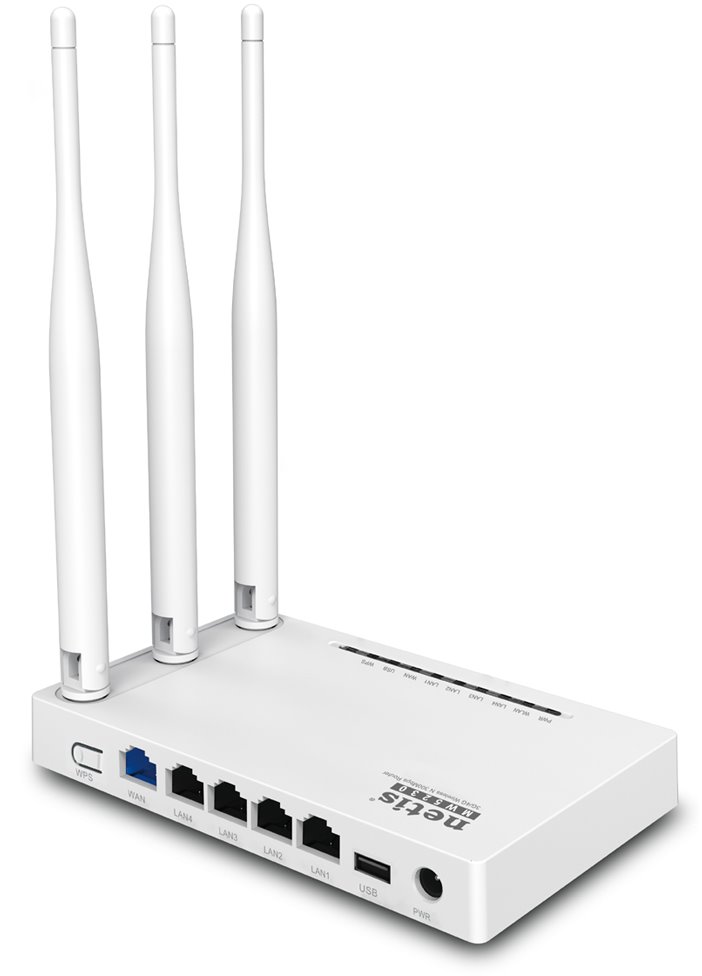

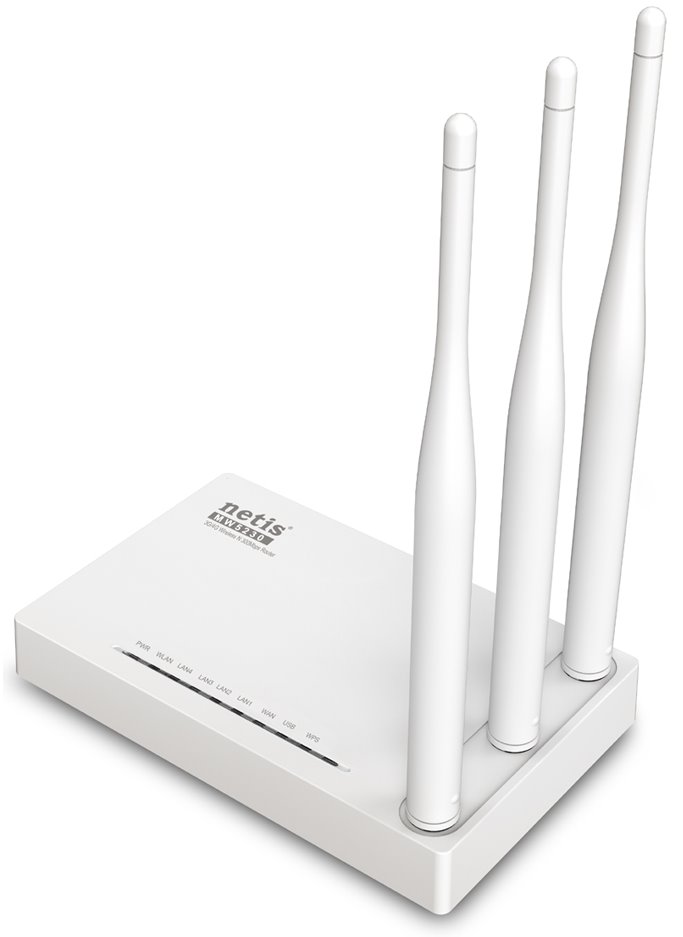

Netis MW5230 3G/4G Router, 300Mbps, 3x 5dBi fixed antenna
We are sorry, this product is no longer in our offer.
Netis MW5230 3G/4G Router, 300Mbps, 3x 5dBi fixed antenna
×
0/0
PCU5E-1YW-MS
0.58 EUR excl. VAT
0.70 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.16 EUR excl. VAT
3.82 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Wireless features
Wireless frequency:
2.4 GHz
WiFi standards:
802.11n, 802.11b/g
Transmission speed - 2.4GHz [Mb/s]:
300
Tx power 2.4GHz [dBm]:
20
Security:
64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK encryption
2.4GHz MIMO:
2 x 2
Type of antenna:
Fixed
Fixed antennas:
3
Antenna gain [dBi]:
5
Connectors and Interfaces
WAN speed:
(1) 10/100Mbps
LAN speed:
(4) 10/100Mbps
USB ports 2.0:
1
USB:
Yes
Power
Power via connector/terminal:
12V / 1A
Physical characteristics
Design:
Desktop
Purpose:
Indoor
Buttons:
Reset/WPS
Operating temperature [°C]:
0 up to 40
Software
Operating mode:
AP Router, 3G/4G Router
Default IP address:
192.168.1.1
Default login and password:
admin / admin
Product description

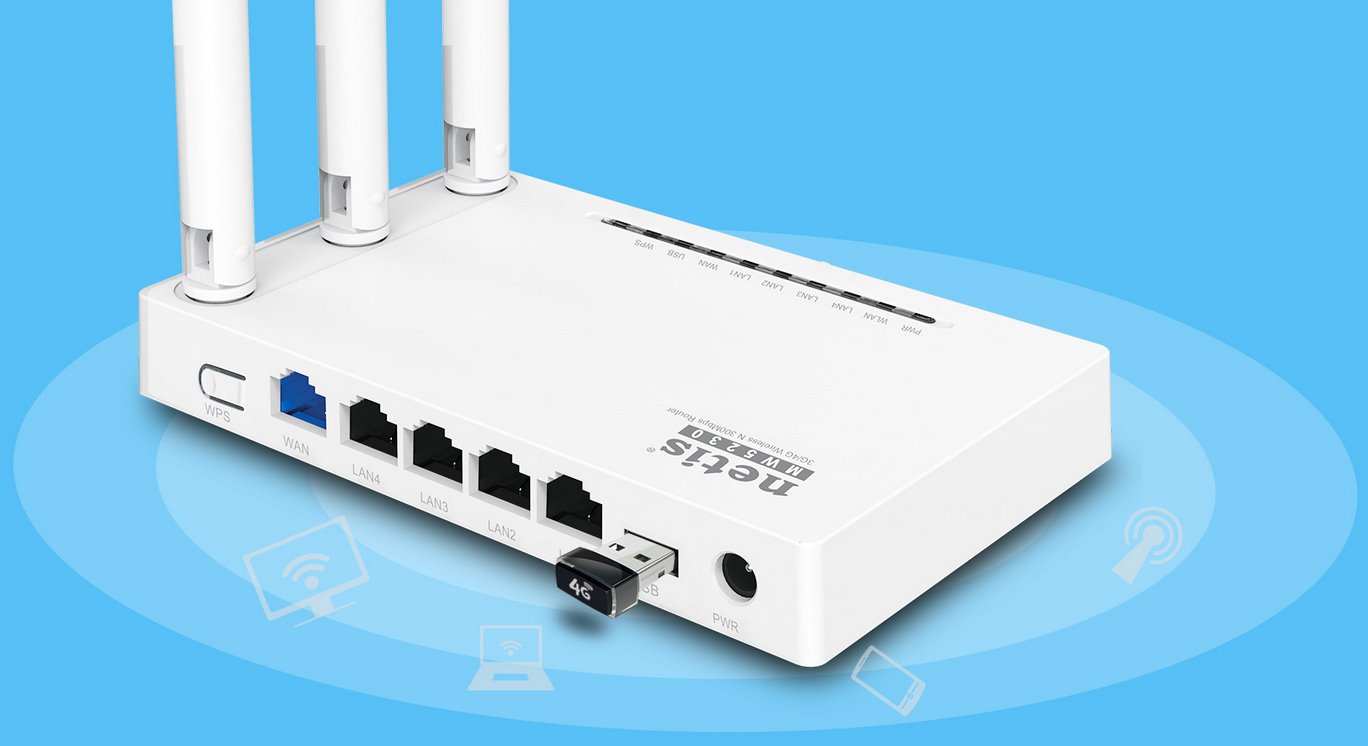

The netis router MW5230 provides different ways for Internet access. It supports to connect with 3G/4G USB modem for network sharing. Also you may try the traditional way to connect Ethernet cable to the WAN port or use the wireless access(WISP) for Internet; then you may connect a USB storage device to the USB2.0 to share files, stream media and setup a ftp server. For local connection, MW5230 provides the wireless transfer speed up to 300Mbps, ideal for faster downloading, Internet calling and HD video streaming.
Alternative WAN Connection
MW5230 is also featured with a WAN port and WISP function. You may try the traditional way to connect Ethernet cable from cable/Fiber modem to the WAN port of MW5230 for Internet. If you applied Internet service from Wireless ISP, the WISP mode on MW5230 is also a good choice for you to connect to the world.
