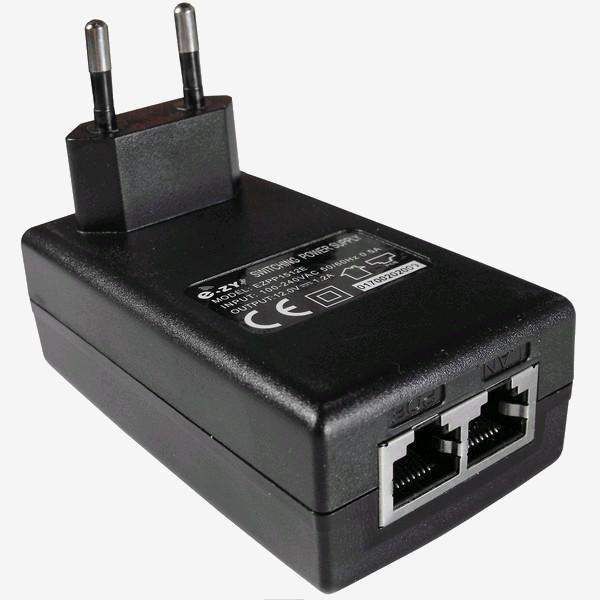

OEM POE power adapter 12V 1,25A with LED indication

Product description

Input Condition AC100~240V 50/60Hz 0.6A max
Input Rated Voltage 100Vac~200Vac
Input Voltage Rate 90Vac~264Vac
Input Rated Frequency 50/60Hz
Input Frequency Range 47Hz~63Hz
Input Current 0.6A Max
Input Inrush Current 30A Max
Input No Load Power Consuption 0.5 Watt Max @ 115Vac/230Vac
Efficiency 80% Min
Rated Output Voltage & Current 12V/1.25A
Output Line Regulation +-1%
Output Load Regulation +-5%
Output Over Shoot 10% Max
Output Ripple and Noise 1% Max
Output Rising Time 20ms Max @ 115Vac
Output Hold-Up Time 8ms Min @ 230Vac
Protection OCP OVP SCP OPP
Dielectric Withstand Voltage 3KV 5mA 60s
Leakage Current 0.25mA @ 230Vac
DC Plug Specification 5.5x2.1x11mm
Dimension 35x73x53mm
Weight 120 gr (Without AC cable)
Operating Temperature Range 0şC~40şC
Storage Temperature Range -20şC~+85şC
AC Cable Choice of EU or UK AC Cable
Certifications CE / UL / GS / RoHS / EMC
