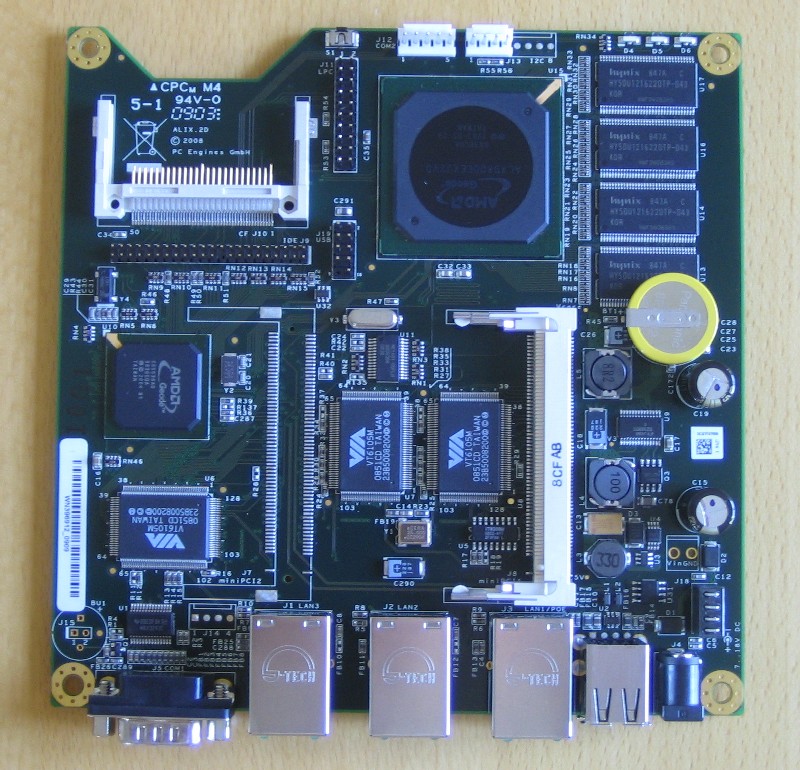

PC Engines ALIX.2D19, 128MB RAM

Product description

Specifikace:
• CPU: 500 MHz AMD Geode LX800
• DRAM: 128 MB DDR DRAM
• Storage: CompactFlash socket, 44 pin IDE header
• Power: DC jack or passive POE, min. 7V to max. 20V
• Three front panel LEDs, pushbutton
• Expansion: 1 miniPCI slot, LPC bus
• Connectivity: 3 Ethernet channels (Via VT6105M 10/100)
• I/O: DB9 serial port, dual USB port
• Board size: 6 x 6" (152.4 x 152.4 mm) - same as WRAP.1E
• Firmware: tinyBIOS

Customer options: I2C bus, buzzer, RTC battery

Změny oproti ALIX.2C:
• Increase USB current limit.
• USB headers as build option.
• USB ports 3 and 4 on header (not tested).
• Change optional serial header J12 to COM2.
• Add LED and switch pins to I2C header.
• Populate buzzer driver circuit, add pins for use as GPIO.
• Add option for power in header J18.
• Some enhancements to reduce EMI.
• Add second POSCAP to ruggedize 3.3V rail for high power radio cards.
