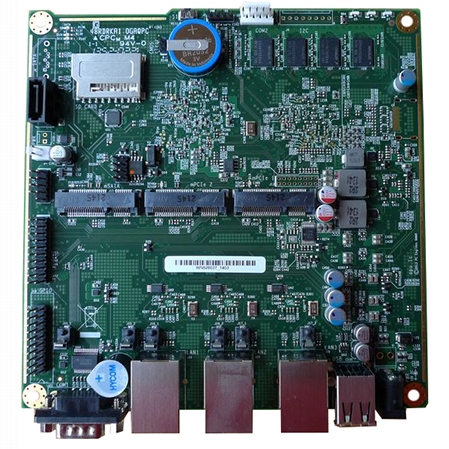

PC Engines APU.1D4 system board, 4GB RAM

Product description

PC Engines APU1D4 includes mSata port, SD card slot and 1 x SATA (with power connector). This allows you to install a wide range of possible operating systems such as RouterOS from MikroTik (APU1 is the last compatible with this system). The motherboard offers expandability with two mini-PCIe ports that can be used to install wireless or 3G/4G cards. This is sufficient equipment for medium-sized APs, possibly as a hotspot. There are also 2 USB ports that can be used with any peripheral devices.

Specifications

• CPU: 1.0 GHz AMD Embedded G-Series T40E APU (dual-core, 64-bit support, 32 + 32 KB L1 cache, 2 x 512 KB L2 cache)
• RAM: 4 GB DDR3-1066 DRAM (not expandable)
• 1x SD port (bootable USB connection)
• 1 x SATA 6 Gbps ports
• 1 x mSATA 6 Gbps ports
• LAN: 3 x 10/100/1000 Mbit s (Realtek RTL8111E)
• 1 x 9-pin serial port (console port)
• 2 x USB 2.0 ports
• 2 x Mini PCIe socket (eg. wireless LAN, GSM / UMTS / LTE modules)
• 1 x SIM slot for GSM/UMTS modules
• RTC batteries, GPIO pins, LPC pins COM2 port (3.3 RxD/TxD), onboard USB connector
• 3 LEDs and one switch knob on the front (freely programmable)
• Coreboot open source BIOS with support for IPxE and Boot USB
• Power supply: 12 V DC jack (external: 5.5 mm, internal: 2.5 mm)
• Consumption: approx. 6-12 W (without expansion cards)
• Dimensions: 152.4 x 152.4 mm
