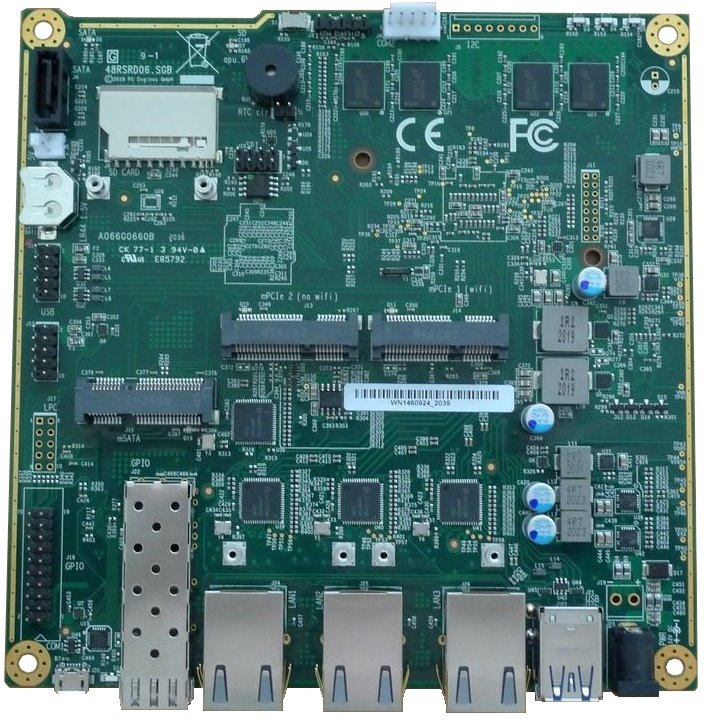

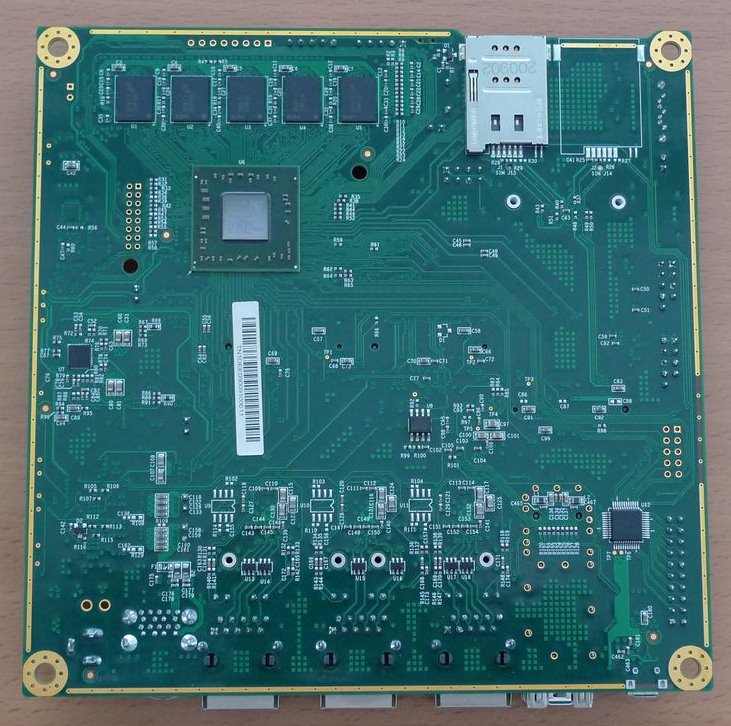

PC Engines APU.6B4 system board, 4GB RAM

Product description

Thanks to Alix's modular architecture, this piece of hardware can be used on more than 50 different embedded applications, both broadband management and firewall and routing applications. Boards can also be deployed in multimedia applications as well as on wireless points or VPN gateways.

Specifications

• CPU: AMD Embedded G series GX-412TC, 1 GHz quad Jaguar core with 64 bit and AES-NI support, 32K data + 32K instruction cache per core, shared 2MB L2 cache
• DRAM: 4GB DDR3-1333 DRAM
• Storage: Boot from SD card (internal sdhci controller), external USB or m-SATA SSD. 1 SATA + power connector. mSATA is shared with miniPCI express.
• 12V DC, about 6 to 12W depending on CPU load. Jack = 2.5 mm, center positive
• Connectivity: 1 SFP port (Gigabit, Intel i210IS), 3 Gigabit Ethernet channels (Intel i211AT)
• I/O: microUSB serial port, 2 USB 3.0 external + 4 USB 2.0 internal, three front panel LEDs, pushbutton
• Expansion: 3 miniPCI express (J14 USB or mSATA, with SIM; J15 USB only, with SIM; J16: full miniPCI express, but no SIM, intended for wifi). GPIO header, optional I2C bus, COM2 (3.3V RXD / TXD)
• Board size: 6 x 6" (152.4 x 152.4 mm) - same as apu1d, alix2d13 and wrap1e
• Firmware: coreboot (please contact support@pcengines.ch for source code if desired)
• Cooling: Conductive cooling from the CPU to the enclosure using a 3 mm alu heat spreader (included)
