Pulsar SP-POE12 splitter PoE 12 VDC
Pulsar SP-POE12 splitter PoE 12 VDC
×
0/0
New product
Your price excl. VAT
6.83 EUR
| Recycling fee | 0.06 EUR |
|---|---|
| Your price with RF | 6.89 EUR |
| Your price incl. VAT (21%) | 8.34 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
|
|
|---|---|---|
| Code | 17720175 | |
| Part No. | SP-POE12 | |
| Warranty | 24 months | |
Parameters
Download
GPSR
Technical parameters
Connectors and Interfaces
Ethernet speed [Mb/s]:
10/100
Power
The input voltage [V]:
44 .. 57V DC
Pin powering:
1,2,4,5 (+), 3,6,7,8 (-)
PoE Out ports:
1
Physical characteristics
Operating temperature [°C]:
-10 up to 40

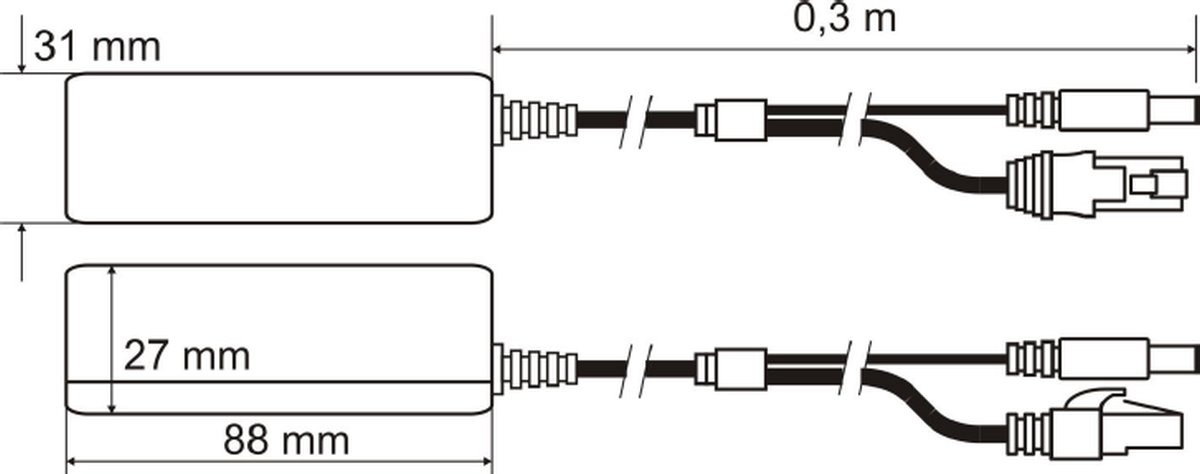

Width [mm]:
30
Height [mm]:
25
Depth [mm]:
86
Product description

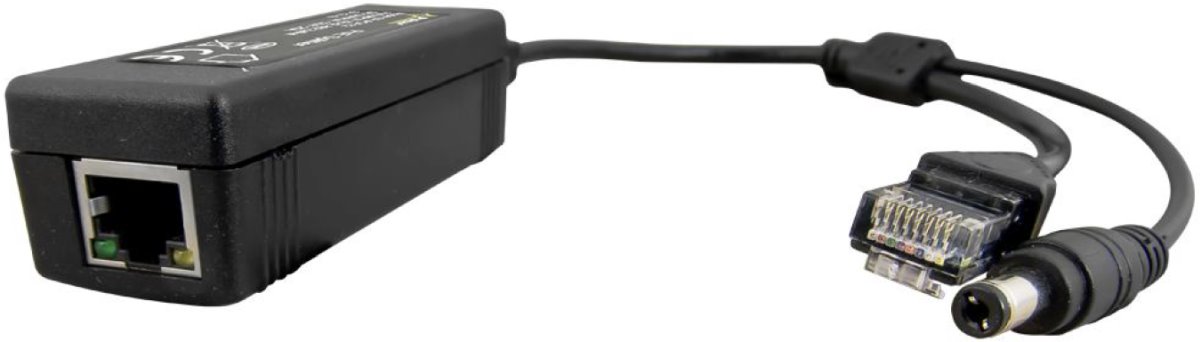

The SP-POE12 splitter is designed to power IP cameras that require a 12V DC power supply. It is built using a high-efficiency voltage converter that steps down voltage from 44–57V DC to 12V DC
PoE supports 802.3af/at specification. Pins 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-) are used for power supply. The power connector has dimensions of 5.5/2.1mm.
Download
DatasheetGPSR
