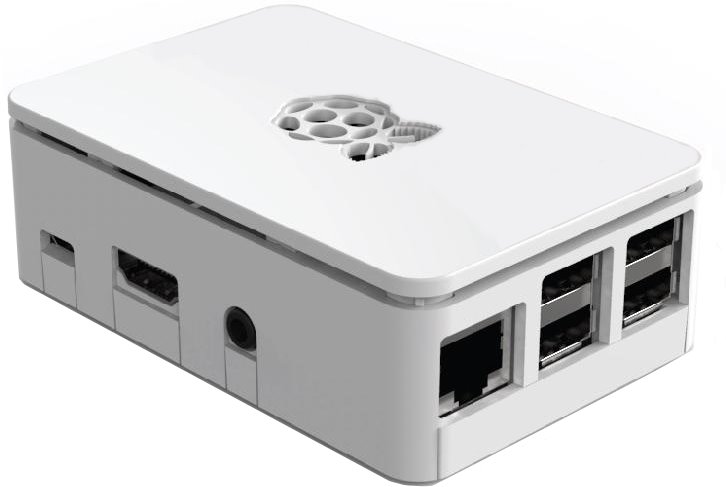

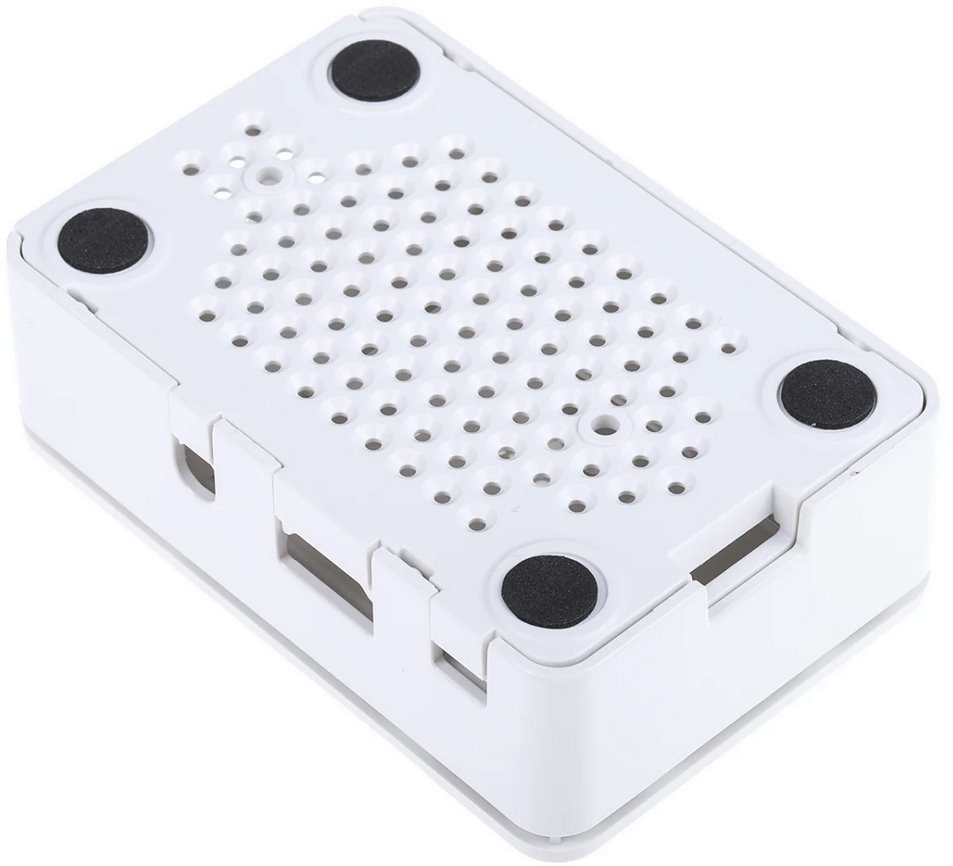

Raspberry Pi 3B+ UniFi Controller, white
We are sorry, this product is no longer in our offer.
| Manufacturer |
OEM |
|
|---|---|---|
| Code | 10904028 | |
| Part No. | RPI303-CK-WH | |
You have a choice of 2 variantscompare all
3B+, Bílá
RPI303-CK-WH
107.45 EUR
SBC-PoE-Power
14.31 EUR excl. VAT
17.40 EUR incl. VAT
In Stock
PWS006-BLA
14.15 EUR excl. VAT
17.22 EUR incl. VAT
In Stock
FS-A1-150-B
9.59 EUR excl. VAT
11.60 EUR incl. VAT
Expected 6.5.2024
PCU5E-1YW-MS
0.58 EUR excl. VAT
0.70 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.16 EUR excl. VAT
3.82 EUR incl. VAT
In Stock
Parameters
Download
Video
Technical parameters
Connectors and Interfaces
LAN speed:
(1) 10/100/1000Mbps
USB ports 2.0:
4
USB:
Yes
Power
Power type:
USB (5V)
Max. power consumption [W]:
7
Power via connector/terminal:
5V / 2,5A
Physical characteristics
Design:
Desktop
Fans:
Without fan
Operating temperature [°C]:
0 up to 50
Width [mm]:
63
Height [mm]:
32
Depth [mm]:
94
Color:
White
Hardware
CPU:
ARM Cortex-A53
CPU frequency [MHz]:
1400
CPU cores:
4
RAM [MB]:
1024
Software
Pre-installed controller:
UniFi Network
Default IP address:
Dynamic from DHCP, 192.168.1.30
Default login and password:
Is set by the user at the first startup
Product description

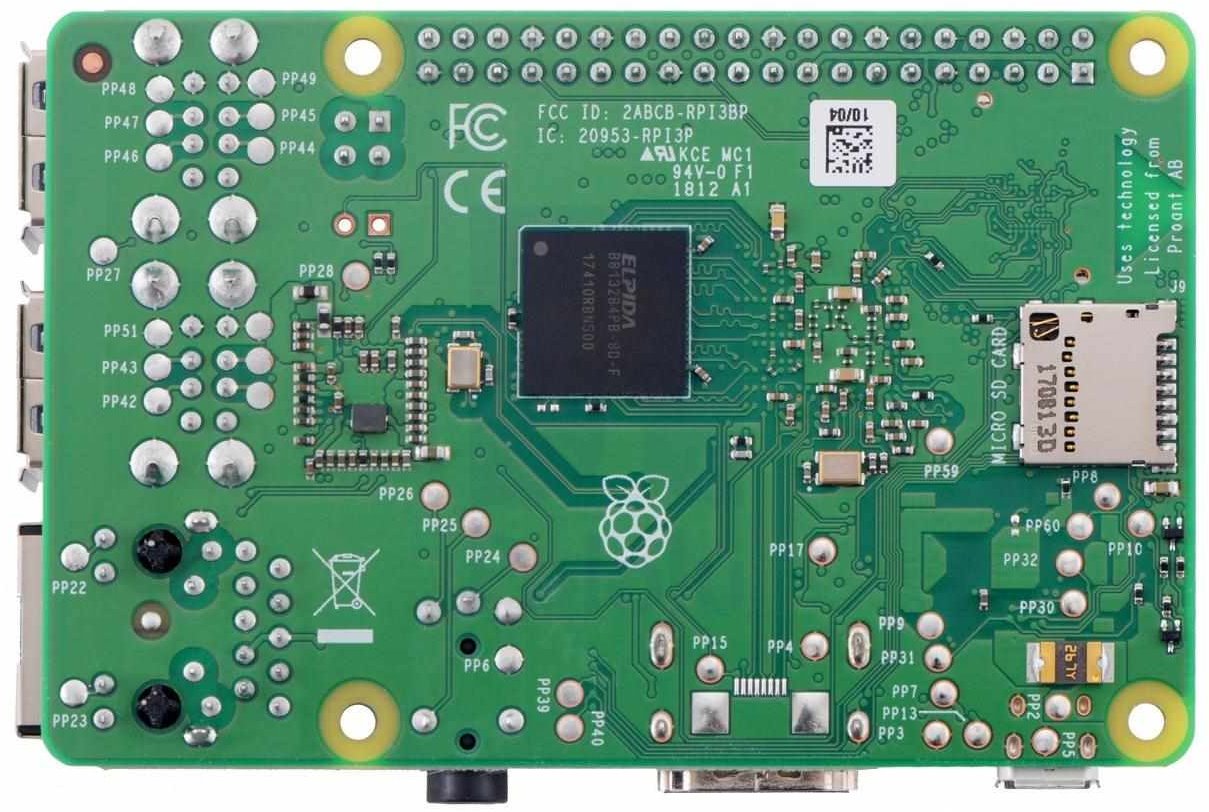

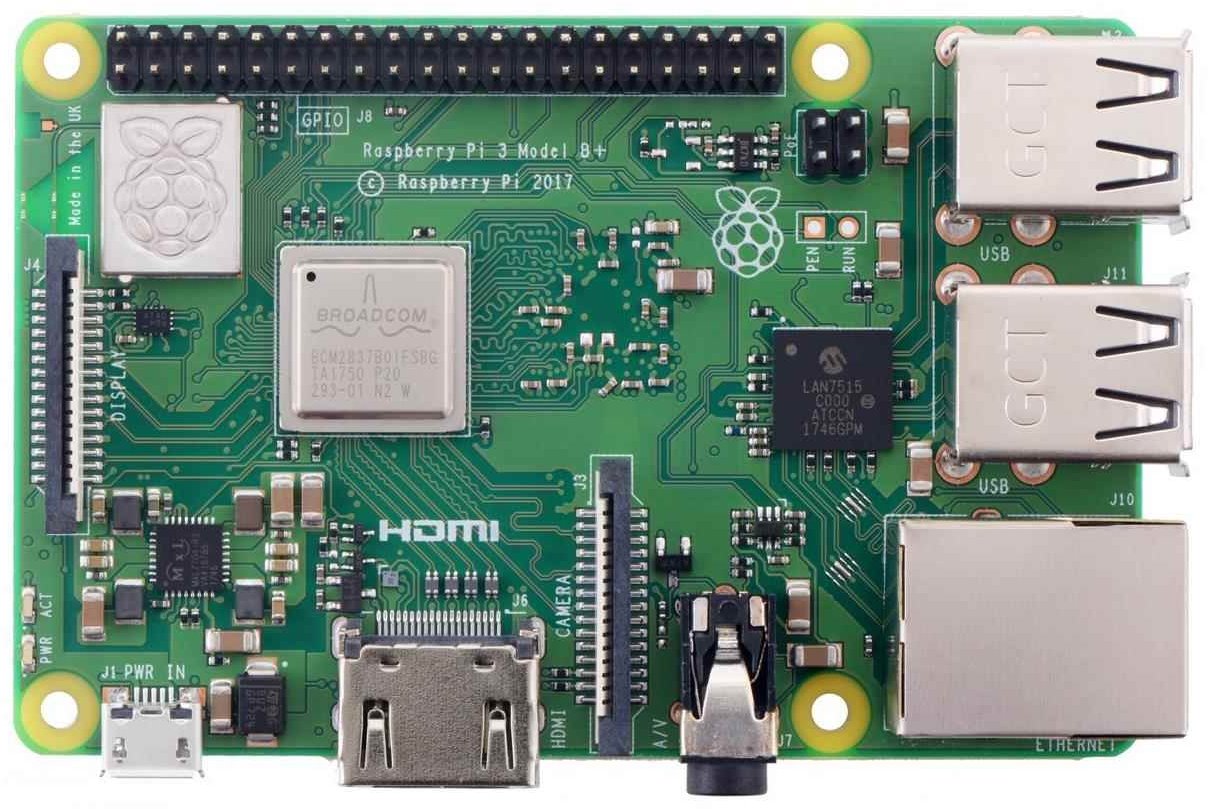

Raspberry Pi 3B + UniFi Controller is a compact device with pre-installed UniFi Controller with the possibility of remote management of all Unifi AP units based on the very high-quality HW platform Raspberry Pi 3B+ with enough power to manage up to 40 devices (UniFi AP, UniFi Switch, USG), which is almost 2× the power compared to the standard UC-CK device from Ubiquiti Networks. Thanks to this device, you no longer have to install UniFi Controller on desktop PCs or servers with much higher power consumption.
Key Features
Easy installation
Installation of Raspberry Pi 3B+ UniFi Controller (so-called raspberries) is very simple - just connect to the network with an Ethernet cable, connect the power supply, wait for booting (takes about 2 minutes) and using a web browser, simply enter the IP address that your raspberry received from the dhcp server, or the fallback address 192.168.1.30.

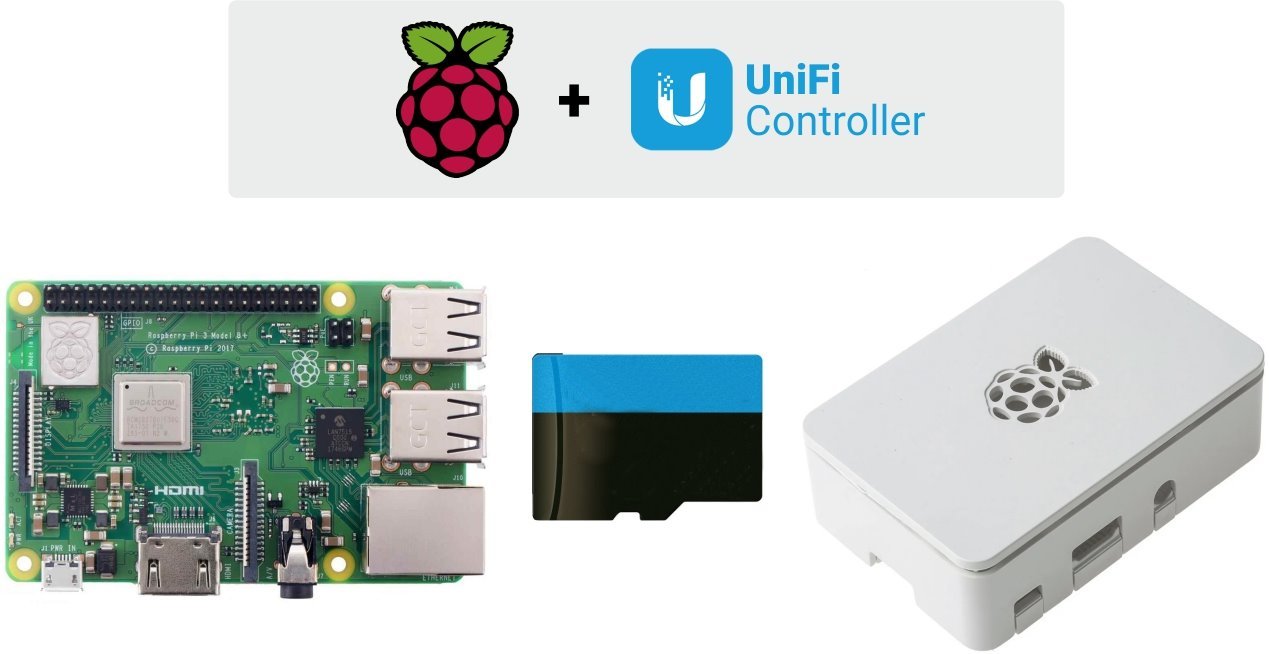

Package Contents
