Reyee RG-NBS5200-24GT4XS-P Managed L3 PoE Switch, 24x PoE

We are sorry, this product is no longer in our offer.

Reyee RG-NBS5200-24GT4XS-P Managed L3 PoE Switch, 24x PoE
Reyee RG-NBS5200-24GT4XS-P Managed L3 PoE Switch, 24x PoE
×
0/0
Reyee RG-NBS5200-24GT4XS-P Managed L3 PoE Switch, 24x PoE
Reyee RG-NBS5200-24GT4XS-P Managed L3 PoE Switch, 24x PoE
Reyee RG-NBS5200-24GT4XS-P Managed L3 PoE Switch, 24x PoE
Reyee RG-NBS5200-24GT4XS-P Managed L3 PoE Switch, 24x PoE
Reyee RG-NBS5200-24GT4XS-P Managed L3 PoE Switch, 24x PoE
Reyee RG-NBS5200-24GT4XS-P Managed L3 PoE Switch, 24x PoE
Reyee RG-NBS5200-24GT4XS-P Managed L3 PoE Switch, 24x PoE
Reyee RG-NBS5200-24GT4XS-P Managed L3 PoE Switch, 24x PoE
Special offer
Manufacturer

Ruijie Networks
Code17800040
Part No.RG-NBS5200-24GT4XS-P
  • Related products2
Masterlan patch cable UTP, Cat5e, 1m, yellow
Masterlan patch cable UTP, Cat5e, 1m, yellow
PCU5E-1YW-MS

0.62 EUR excl. VAT
0.75 EUR incl. VAT
In Stock
Masterlan comfort patch cable UTP, Cat5e, 5m, gray
Masterlan comfort patch cable UTP, Cat5e, 5m, gray
PCU5E-5-MSC

3.74 EUR excl. VAT
4.53 EUR incl. VAT
In Stock
Parameters
Download
GPSR

Product description

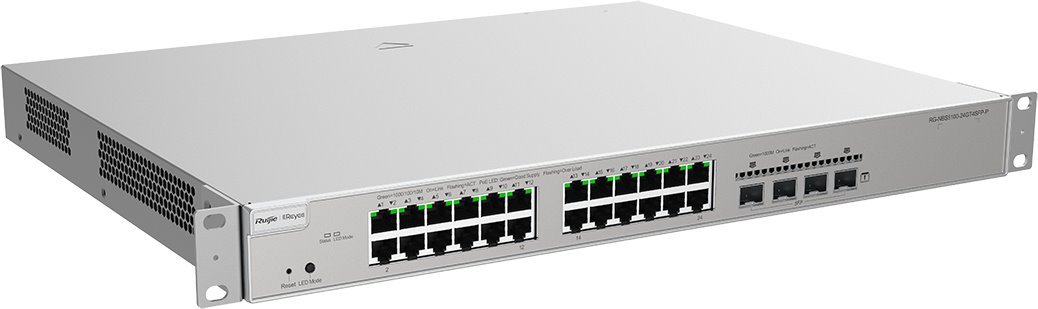

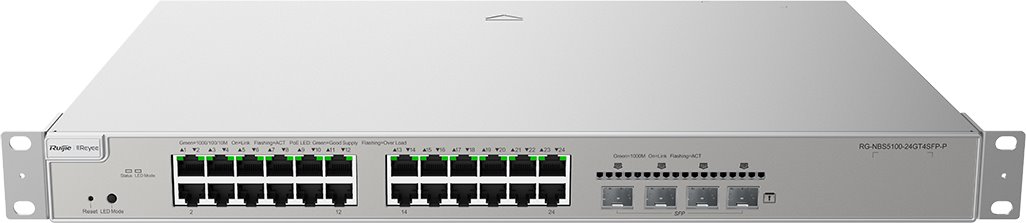

Intelligent cloud and web interface manageable Enterprise L3 smart rackmount PoE switch RG-NBS5200-24GT4XS- P from the Ruijie Networks, offers a solution with 24 Gigabit LAN ports that support 802.3af/at PoE with a total PoE budget 370 W and 4 SFP+ ports for connecting 1G and 10G optical modules. This switch is ideal for network applications that require performance, reliability and a sufficient number of ports. As for the feature list, the switch offers support for static L3 routing, VLAN, DHCP snooping, RSTP, IGMP, SNMP, port aggregation, cable testing and more.

Key Features

  • 24× 10/100/1000 Mbps LAN port
  • 4× SFP+ port
  • 24× 802.3af/at PoE - max. 30 W/port, PoE budget 370 W
  • Quality rackmount design, metal chassis
  • 2× Fan with adaptive speed
  • Management via web interface and cloud
  • Lifetime management on Ruijie Reyee Cloud anytime, anywhere
  • Recognition of IP cameras - unique value for CCTV network
  • Support L3 routing and other features

Package contents

  • Device
  • Mounts for 19" rack
  • Power cord

Product is for EU region only

GPSR

Contact:
ENIF PEGASUS S.R.L.Str.
RADOVANU, Nr. 7, Bloc 42, Scara 1, Etaj 5, Apartament 29, 22882 Bucureşti Sectorul 2, RO
dragutagss@gmail.com

Bussines information

Lukáš Sokol, +420 377 477 793 , lukas.sokol@discomp.cz

Technical parameters

Connectors and Interfaces

LAN speed: (24) 10/100/1000Mbps
Optical interfaces: (4) 1G/10Gbps

Power

Power type: Mains power (230V)
PoE type: PoE-Out (only)
PoE-Out standards: 802.3af, 802.3at
PoE Out ports: 24
PoE budget [W]: 370
Max. power consumption [W]: 432
Power via connector/terminal: 230V AC

Physical characteristics

Design: Rackmount
Fans: Yes
Chassis design: Metal
Buttons: Reset, LED
Operating temperature [°C]: 0 up to 50
Width [mm]: 440
Height [mm]: 44
Depth [mm]: 358

General

Switchning capacity [Gbps]: 128
MAC address table: 16000
Jumbo frame [Bytes]: 9216
Packet forwarding rate [Mpps]: 96

Software

Web management: Yes
Management: Web management, Ruijie cloud
Features: VLAN, DHCP snooping, L3
Default IP address: 10.44.77.200
Default login and password: Is set by the user at the first startup
