Reyee RG-RAP2260(H) Access point
Your price excl. VAT
| Manufacturer |
Ruijie Networks |
|
|---|---|---|
| Code | 17800022 | |
| Part No. | RG-RAP2260(H) | |
| Warranty | 36 months | |
PCU5E-1YW-MS
0.58 EUR excl. VAT
0.70 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.16 EUR excl. VAT
3.82 EUR incl. VAT
In Stock
Parameters
Download
Video
Technical parameters
Wireless features
Wireless frequency:
2.4 + 5 GHz (dual band)
WiFi standards:
802.11ax, 802.11ac, 802.11ac - wave2, 802.11n, 802.11a, 802.11b/g
MU-MIMO:
Yes
Transmission speed - 5GHz [Mb/s]:
4804
Transmission speed - 2.4GHz [Mb/s]:
1148
Tx power 2.4GHz [dBm]:
32
Tx power 5GHz [dBm]:
32
Security:
WPA-PSK/WPA2-PSK
2.4GHz MIMO:
4 x 4
5GHz MIMO:
4 x 4
Type of antenna:
Built-in
Internal antennas:
8
Roaming:
Yes
Antenna gain [dBi]:
3, 4
Connectors and Interfaces
LAN speed:
(2) 100/1000/2500Mbps
Gigabit LAN:
Yes
Power
Power over Ethernet:
802.3bt
PoE type:
PoE-In (only)
Max. power consumption [W]:
40
Power via connector/terminal:
48V / 1A
Physical characteristics
Purpose:
Indoor
Buttons:
Reset
Operating temperature [°C]:
0 up to 40
Weight [g]:
1800
Width [mm]:
230
Height [mm]:
50
Depth [mm]:
230
Software
Operating mode:
Access Point
Default IP address:
Dynamic from DHCP, 10.44.77.253
Default login and password:
Is set by the user at the first startup
Product description

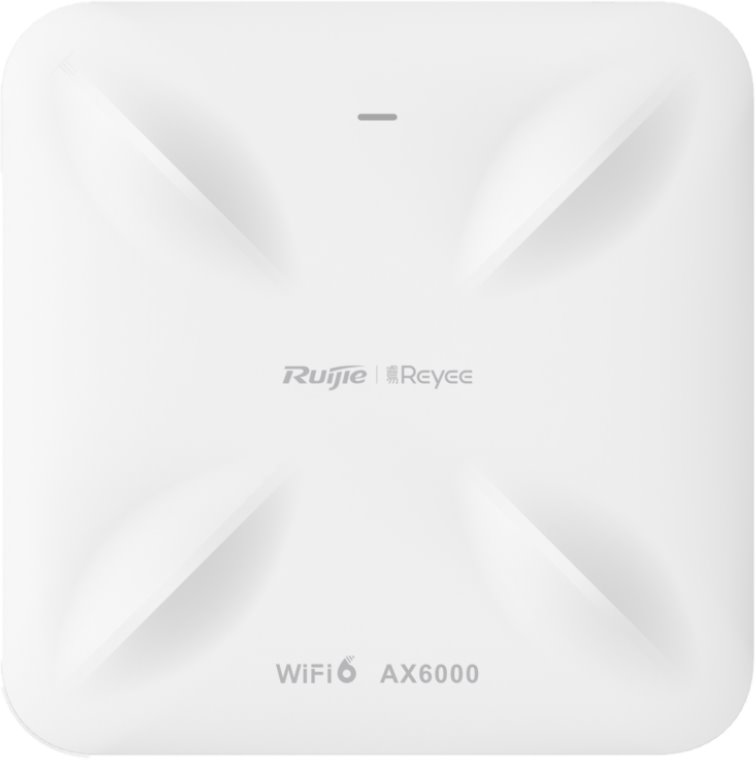

RG-RAP2260(H) is Ruijie Networks ceiling-mounted and wall-mounted wireless Wi-Fi 6 Access Point with full roaming support for seamless transition between APs. The device is equipped with two 2.5-Gigabit ports, the first of which supports power supply via 802.3bt PoE and Dual Band Wi -Fi 6 4x4 MU-MIMO radio with modulation speeds of 1148 Mbps in 2.4 GHz and 4804 Mbps in the 5 GHz band.
Main advantages
Package contents
Product is for EU region only
