RF elements BR-WG2 Bracket for WaveAP Gen 2

Product description

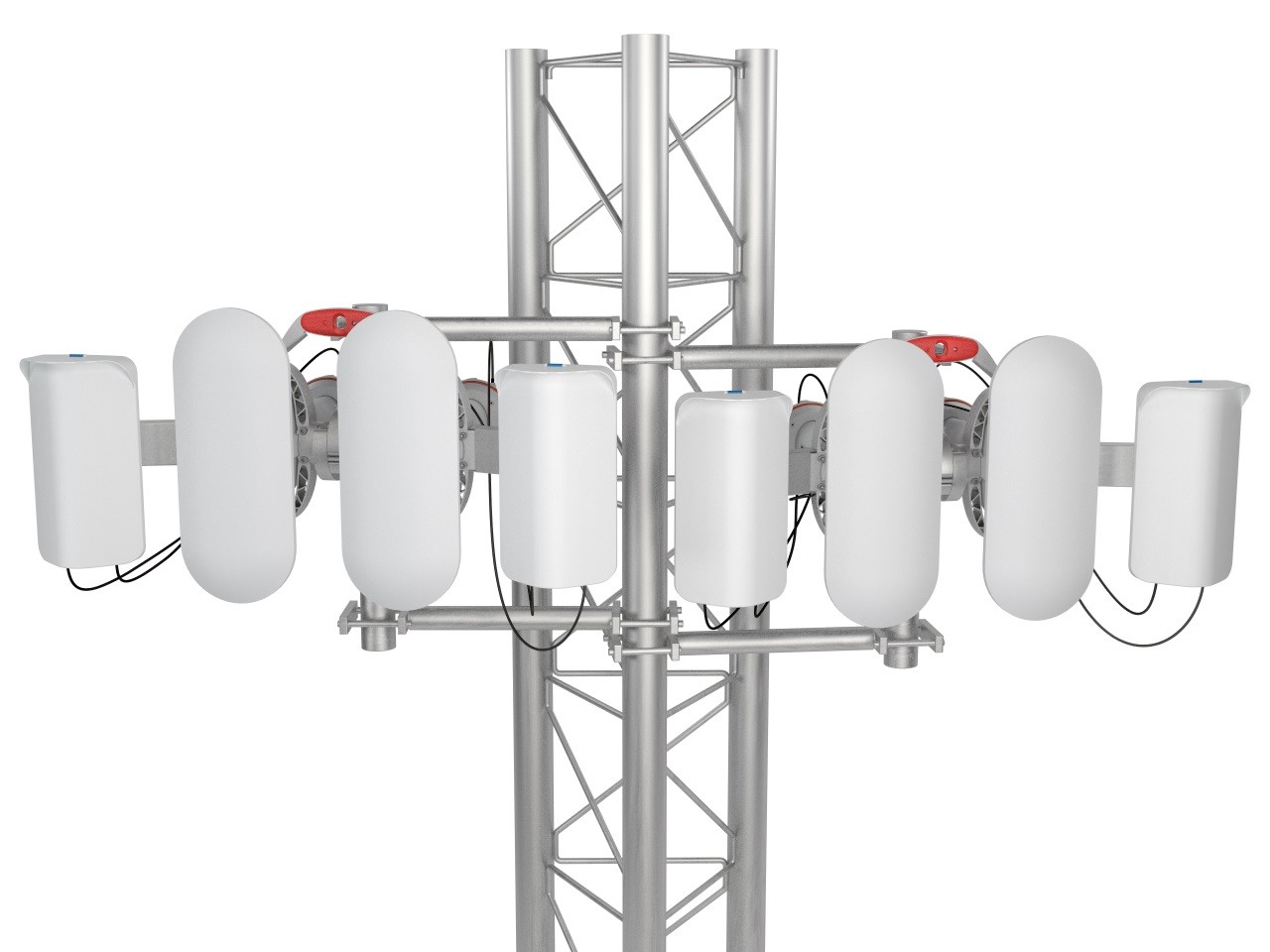

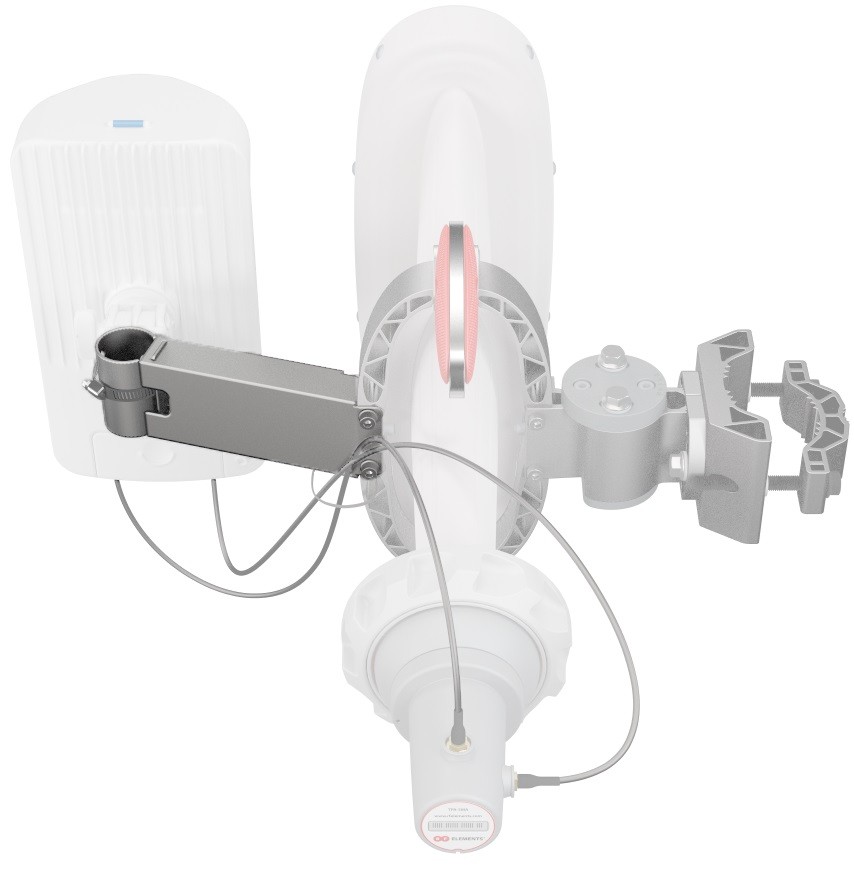

Smart bracket BR-WG2 provides additional mounting point to mount popular UI Wave AP Gen2 directly to RF elements Asymmetrical Horn Antenna. This provides slick and practical setup for Wave AP Gen2 when deployed with 90° RF elements Asymmetrical Horn. Once mounted, the Wave AP device can be aligned in azimuth and elevation together with Asymmetrical Horn antenna.

BR-WG2 is compatible with any RF elements Asymmetrical Horn Antenna that uses structural aluminum ring: the list includes the newest 6 GHz Wideband Horns, legacy 5 GHz AH-TP Series and any of our 4x4 Asymmetrical Horn antennas.

Despite the fact that BR-WG2 was designed specifically for UI Wave AP Gen2, it can be used for a wide range of various devices, such as 60 GHz APs, cameras, sensors, etc. This makes the BR-WG2 incredibly versatile mount.

Compatible 5 GHz Horn Antennas:

2 x 2 - AH90-TP, AH2030-TP, AH60-TP, AH20-CC, AH30-CC, AH60-CC, AH90-CC

4 x 4 - AH90-4x4-SMA, AH60-4x4-SMA

Compatible 6 GHz Horn Antennas:

2 x 2 - AH90WB, AH60WB, AH45WB

4 x 4 - AH90WB-4x4-SMA, AH60WB-4x4-SMA

Package contents

• BR-WG2 Bracket
• Mounting accessories
