RF elements passive PoE set

Product description

Passive PoETM is a simple way of providing power for an access point on the roof. Passive PoETM uses free wires in the Ethernet cable and sends the equipments power along them to the far end. Over a short distance, its usually possible to use the power adapter supplied as standard with the access point or with other network elements which we wish to connect along the Ethernet cable. If the loss of the voltage on the wiring along longer lengths of Ethernet cable is too high, it is possible to use another more powerful power adapter, to eliminate this loss of voltage.

This PassivePoETM is our original solution. Avoid using low-cost or anonymous copies in order to avoid the risk of damaging your device. We deliver Injector only or Whole Set, both using standard 5.5×2.1 mm DC power jack.

How It Works

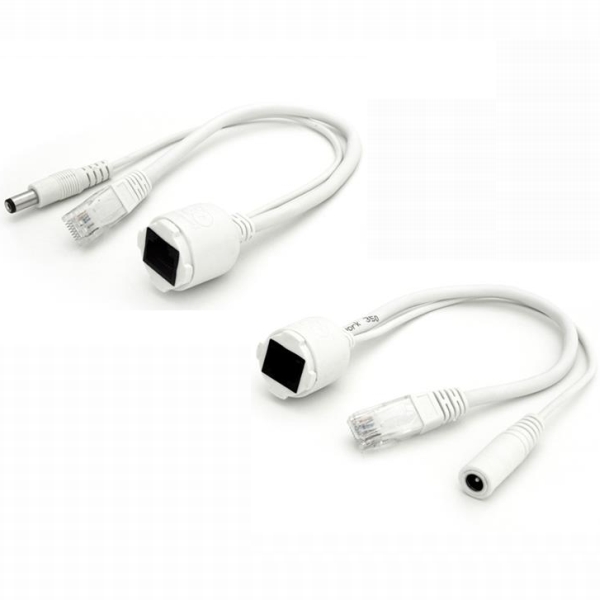

The complete Passive PoETM over Ethernet - SET contains two pieces INJECTOR and SPLITTER. It is suitable for using with products that basically do not support Power Over Ethernet. Passive Power Over Ethernet - SET is applicable for wide range of network products such as Access Points, Routers, IP cameras, modems, switches, embedded computers or other network devices.

Devices can be supplied standardly up to 50V. The power adapter is not included - it is possible to use the power adapter of the powered device as access point, IP camera etc. Passive PoETM `s range is normally from 30-40 metres / 100-130 ft. The real distance depends on the power supply, type of cable and powered device.
