RF elements StarterDish STD-21-UM Directional parabolic dish antenna, 5GHz, 21dBi
RF elements StarterDish STD-21-UM Directional parabolic dish antenna, 5GHz, 21dBi
×
0/0
Your price excl. VAT
33.92 EUR
| Recycling fee | 0.21 EUR |
|---|---|
| Your price with RF | 34.13 EUR |
| Your price incl. VAT (21%) | 41.30 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
RF elements |
|
|---|---|---|
| Code | 10210171 | |
| Part No. | STD-21-UM | |
| Warranty | 24 months | |
You have a choice of 3 variantscompare all
STA-SMA
7.83 EUR excl. VAT
9.55 EUR incl. VAT
stiqtyfree:91
_17:
avail:2
infocode: stock
queu:
In Stock
IS-5AC
94.83 EUR excl. VAT
114.83 EUR incl. VAT
stiqtyfree:52
_17:
avail:2
infocode: stock
queu:
In Stock
PS-5AC
221.66 EUR excl. VAT
268.29 EUR incl. VAT
stiqtyfree:0
_17:
avail:0
infocode: avail
queu:
Not in stock
100-00101(C5x IP67)
99.96 EUR excl. VAT
121.04 EUR incl. VAT
stiqtyfree:400
_17:
avail:2
infocode: stock
queu:
In Stock
PK35S421V100
10.58 EUR excl. VAT
12.80 EUR incl. VAT
stiqtyfree:53
_17:
avail:2
infocode: stock
queu:
In Stock
Parameters
Download
Video
GPSR
Technical parameters
Wireless features
MIMO, SISO:
2 x 2
Polarization:
VH
Wireless frequency:
5 GHz
Elevation beam width (-6dB) [°]:
15
Azimuth beam width (-6dB) [°]:
15
Antenna type:
Directional
Antenna gain [dBi]:
21
Connectors and Interfaces
RF connectors:
IsoStation port, Twist-on port (Mimosa)
Physical characteristics
Designed for mast diameter [mm]:
20 up to 55
Wind load [km/h]:
160
Protection class:
IP65
Purpose:
Outdoor
Operating temperature [°C]:
-35 up to 55
Weight [kg]:
1,2
Width [mm]:
297
Height [mm]:
0,5
Depth [mm]:
195
Video
Product description

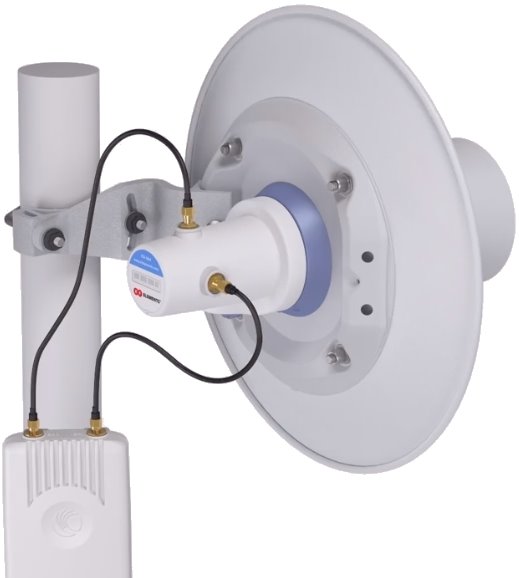

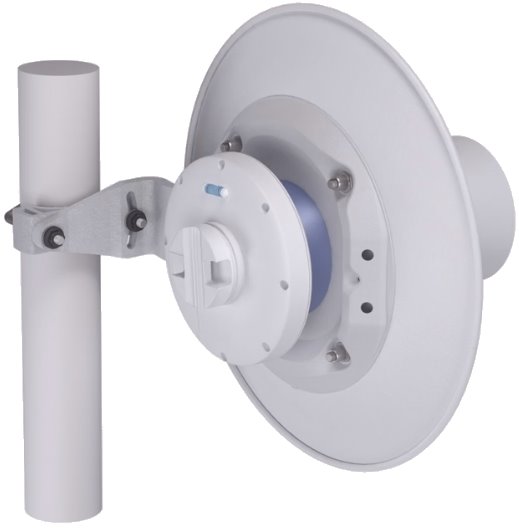

The StarterDish antenna from RF Elements is a directional parabolic antenna with a gain of 21 dBi primarily intended for client installations. The antenna consists of a very light parabolic antenna, a simple holder for a mast with a diameter from 20 to 55 mm, a radiator is made of aluminum terminated on the back with a so-called IsoStation connector for direct connection to IsoStation or PrismStation units from Ubiquiti. The antenna package also includes a reducer for connection to a C5x unit from Mimosa.
Compatibility
For greater compatibility, use the optional STA-SMA reducer with two RSMA female connectors for connecting units with HF connectors.
Package Contents
Download
Datasheet Installation guideGPSR
