RF elements StationBox® ALU CARRIER CLASS 10N3E

We are sorry, this product is no longer in our offer.

RF elements StationBox® ALU CARRIER CLASS 10N3E
RF elements StationBox® ALU CARRIER CLASS 10N3E
×
0/0
RF elements StationBox® ALU CARRIER CLASS 10N3E
RF elements StationBox® ALU CARRIER CLASS 10N3E
RF elements StationBox® ALU CARRIER CLASS 10N3E
RF elements StationBox® ALU CARRIER CLASS 10N3E
RF elements StationBox® ALU CARRIER CLASS 10N3E
RF elements StationBox® ALU CARRIER CLASS 10N3E

Manufacturer

RF elements

Code20013842
Part No.SBX-ALU-CC-10N3E_špatná
Parameters
Download

Product description

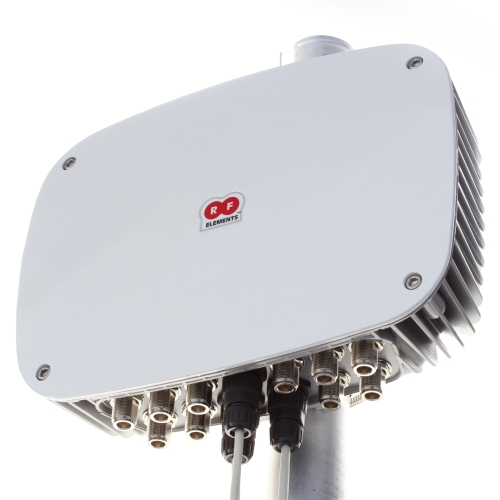

Die-cast aluminium construction is covered with UV resistant paint and offers excellent weather resistance and improved RF noise protection. Increased depth of the enclosure allows to host boards with high profile heatsinks or multiple radio cards.

Easy RouterBoardTM Integration

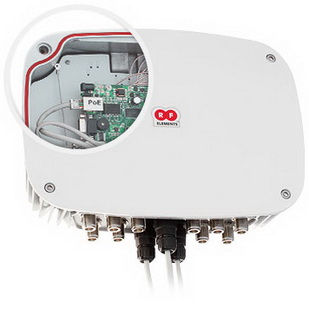

Cast aluminium construction is covered with UV resistant paint and offers excellent weather resistance and improved RF noise protection. Inner mounting plate is made of ABS and has premolded holes for installation of most used wireless platforms as MikroTik, Alix or TP-link. Other devices of choice can be installed as well.

Easy Installation

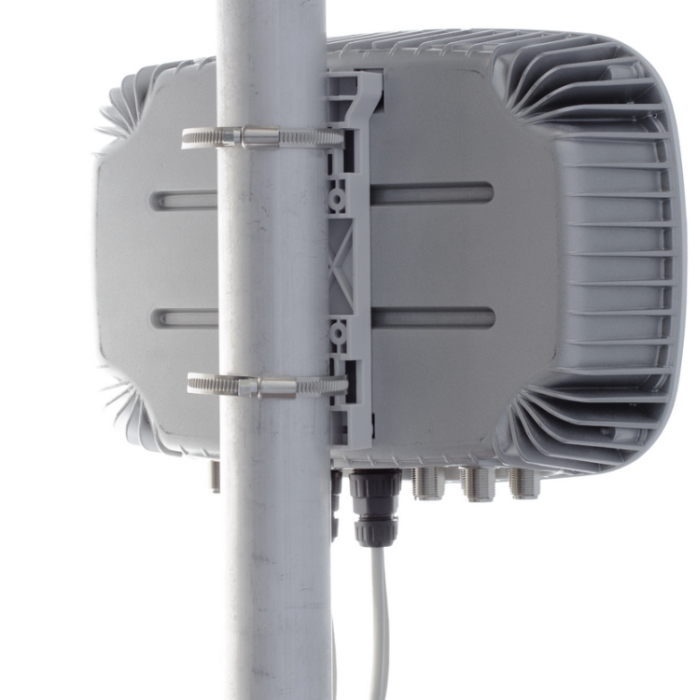

Mounting bracket is made of high resistant PA6 plastic and enables installation on the pole or on the wall. Installation is easy and quick - just hang up the enclosure and secure the locking screw. Plastic mounting bracket also helps to isolate mechanical vibrations coming from the pole to the enclosure and electronics.

Built To Last
Corrosion resistance is secured by using only high grade materials. Enclosure is made of die-cast aluminium and covered with UV resistant paint. All hardware is made of Stainless Steel. Body screws are captive, they do not fall out when released. Additional features can be achieved by using optional accessories, as pigtails or waterproof grounded RJ-45 connectors.

Download

Datasheet

Technical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.

Bussines information

Discomp s.r.o., +420 377 221 177, sales@discomp.cz

Technical parameters

Physical characteristics

Designed for mast diameter [mm]: 50 up to 70
Protection class: IP65
Shielding: Yes
Mounting: On the wall, On the mast
Ready for cable glands (quantity): 13
Purpose: Outdoor
Material: Aluminum, UV stabilized ABS plastic
Weight [g]: 2200
Width [mm]: 300
Height [mm]: 220
Depth [mm]: 87

General

Compatibility: Alix2, Alix3, RB411, RB433, RB711, RB911, RB912

×
