RF elements StationBox® XL CC - 5 GHz 19 dbi Dual aluminum box for RB 911, 912, 711, 411
We are sorry, this product is no longer in our offer.
RF elements StationBox® XL CC - 5 GHz 19 dbi Dual aluminum box for RB 911, 912, 711, 411
×
0/0
RB912UAG-5HPnD
52.22 EUR excl. VAT
63.27 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Wireless features
MIMO, SISO:
2 x 2
Polarization:
VH
VSWR:
< 1,4
Cross-Pol Isolation [dB]:
30
Wireless frequency:
5 GHz
Elevation beam width (-6dB) [°]:
15
Azimuth beam width (-6dB) [°]:
15
Antenna type:
Directional
Antenna gain [dBi]:
19
Connectors and Interfaces
RF connectors:
(2) MMCX
Physical characteristics
Antenna design:
Panel
Designed for mast diameter [mm]:
50 up to 70
Place for indoor unit:
Yes
Purpose:
Outdoor
Material:
Aluminum, UV stabilized ABS plastic
Weight [kg]:
1,9
Width [mm]:
261
Height [mm]:
261
Depth [mm]:
131
Product description

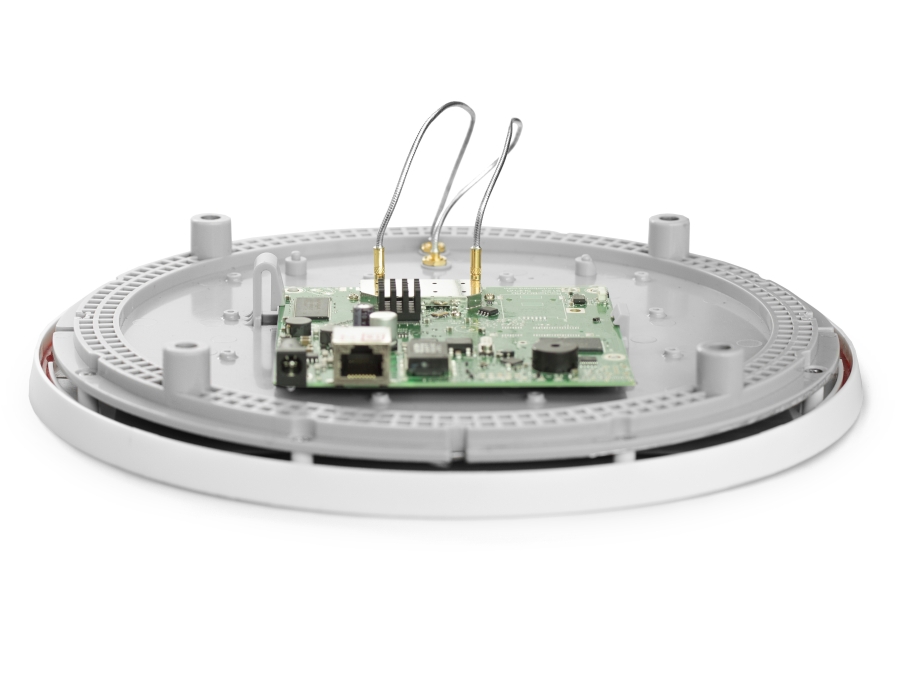

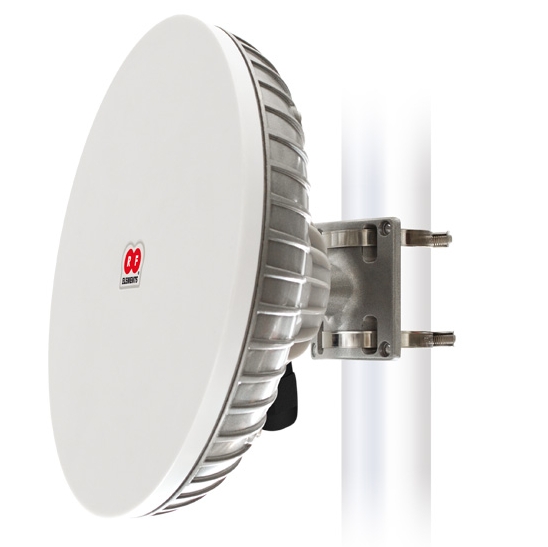

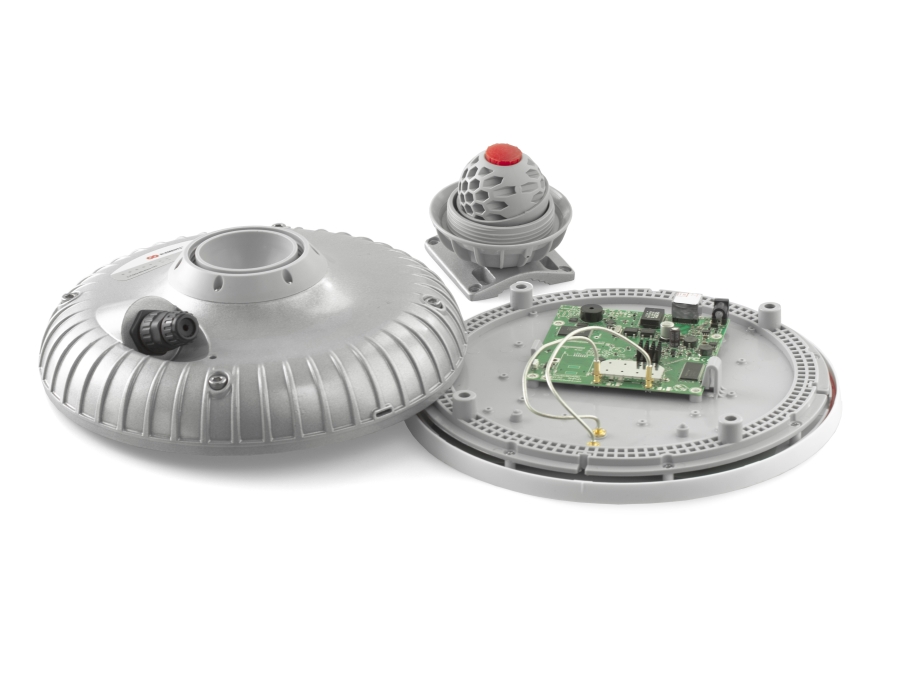

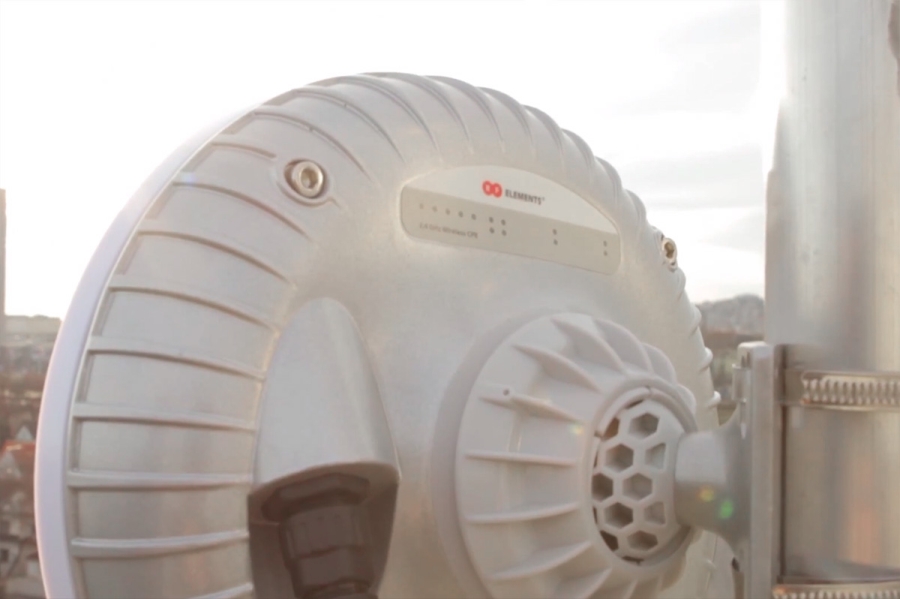

StationBox® XL CARRIER CLASS is aluminium outdoor CPE antenna enclosure designed to meet highest requirements on performance, durability and environmental resistance. With built-in high gain dual polarization antenna, NanoBracket® 3-Axis adjustable mount and IP65 environment resistance rating, StationBox® XL CARRIER CLASS is the most advanced integrated CPE solution on the market.
Download
CE Datasheet Installation GuideGPSR
