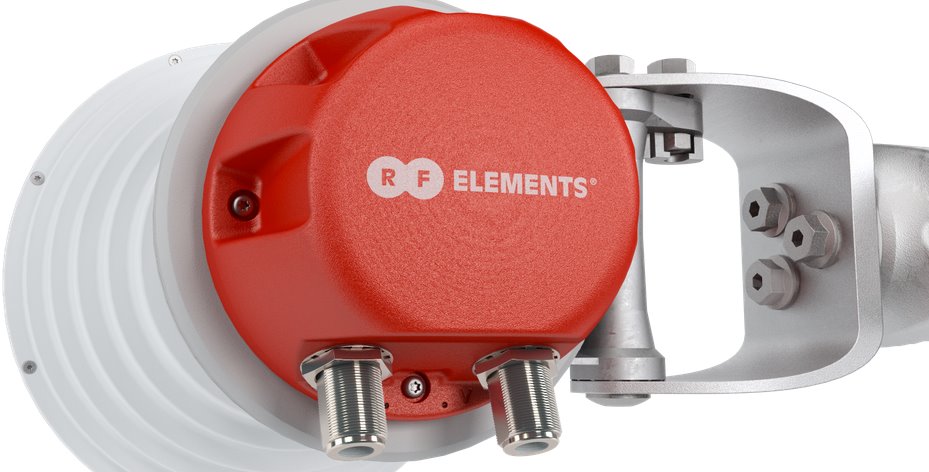

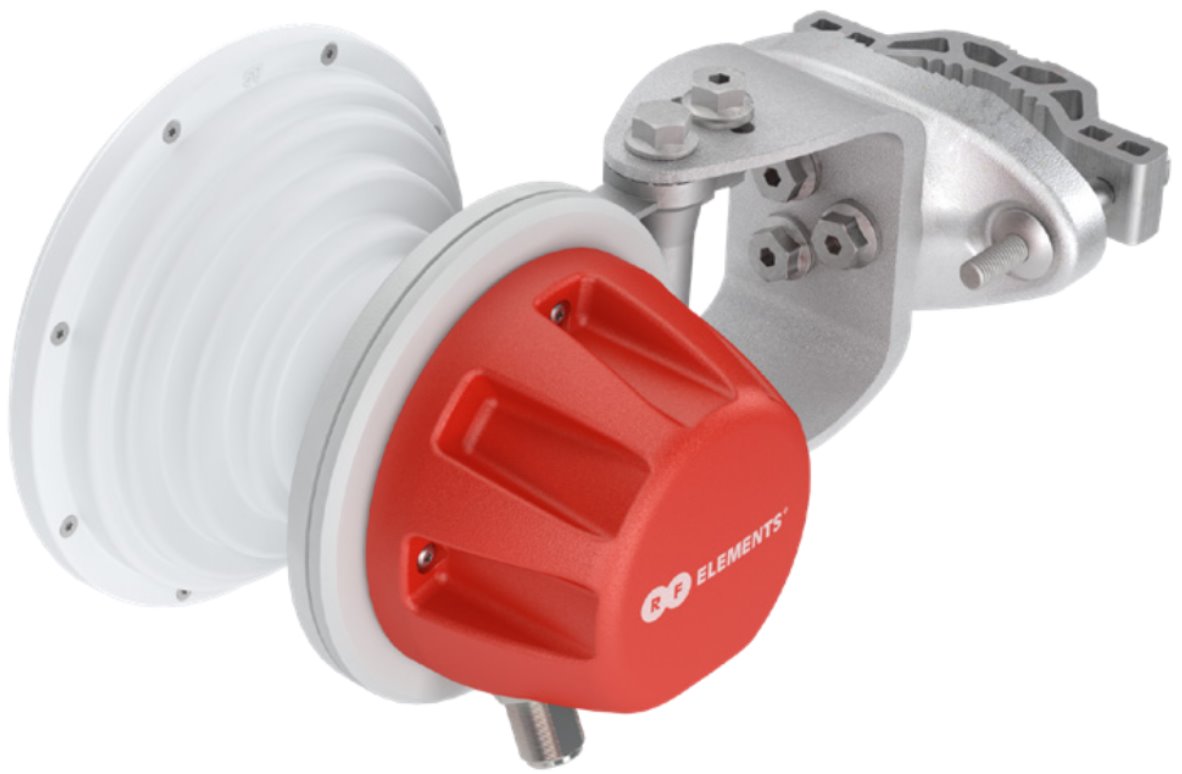

RF elements Symmetrical Horn Antenna Carrier Class, 5GHz, 14dBi, 50°, Gen2
Your price excl. VAT
115.20 EUR
| Recycling fee | 0.20 EUR |
|---|---|
| Your price with RF | 115.40 EUR |
| Your price incl. VAT (21%) | 139.63 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
RF elements |
|
|---|---|---|
| Code | 11100106 | |
| Part No. | HG3-CC-S50 | |
| Warranty | 24 months | |
S2501
6.39 EUR excl. VAT
7.73 EUR incl. VAT
In Stock
08-RM-NM-05
11.31 EUR excl. VAT
13.69 EUR incl. VAT
Not in stock
PK35S421V100
12.51 EUR excl. VAT
15.14 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Wireless features
MIMO, SISO:
2 x 2
Polarization:
VH
VSWR:
< 1,6
F/B ratio [dB]:
33
Wireless frequency:
5 GHz
Elevation beam width (-6dB) [°]:
50
Azimuth beam width (-6dB) [°]:
50
Antenna type:
Sector
Antenna gain [dBi]:
14
Connectors and Interfaces
RF connectors:
(2) N female
Physical characteristics

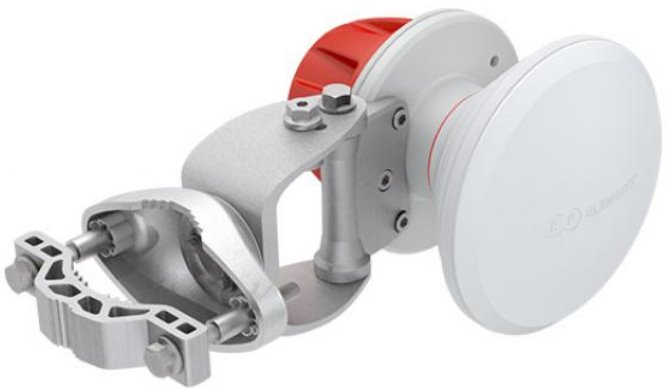

Designed for mast diameter [mm]:
30 up to 90
Wind load [km/h]:
160
Purpose:
Outdoor
Material:
Aluminum, Stainless steel, Polycarbonate, Polypropylene, Zinc
Operating temperature [°C]:
-30 up to 55
Weight [kg]:
1,9
Width [mm]:
152
Height [mm]:
152
Depth [mm]:
181
Product description

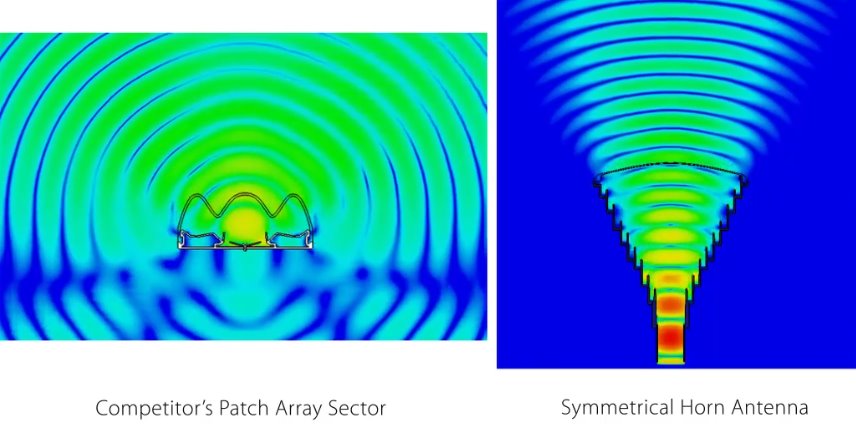

Symmetrical Sectors are low loss scalar horn antennas with unique beam shape and characteristics. Their beam section is circular: azimuth and elevation radiation angles are identical. The beam pattern does not vary with frequency and antenna gain is balanced over a wide frequency range. These features make them excellent for use as Sector antennas. This antenna has 14dBi gain, 50° beam angle and (2) N-female connectors.
Superb Scalability

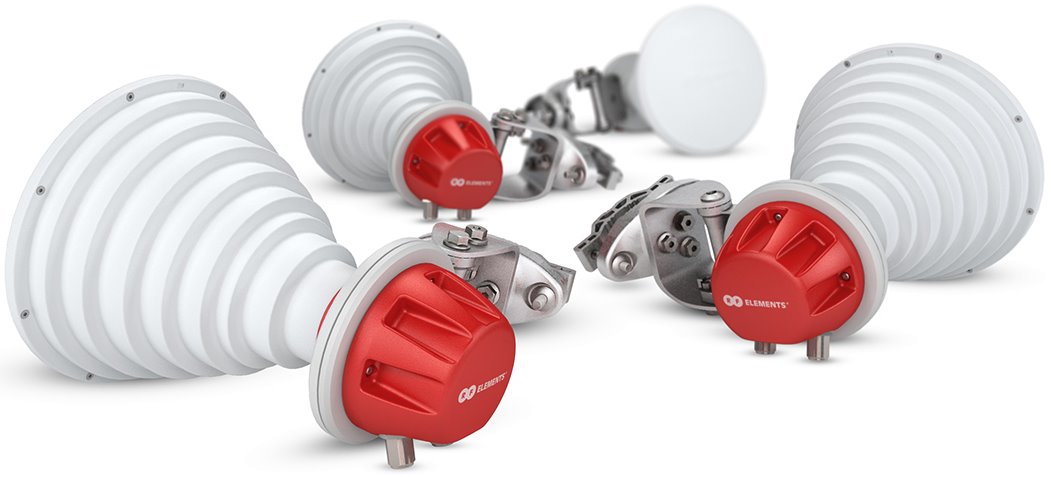

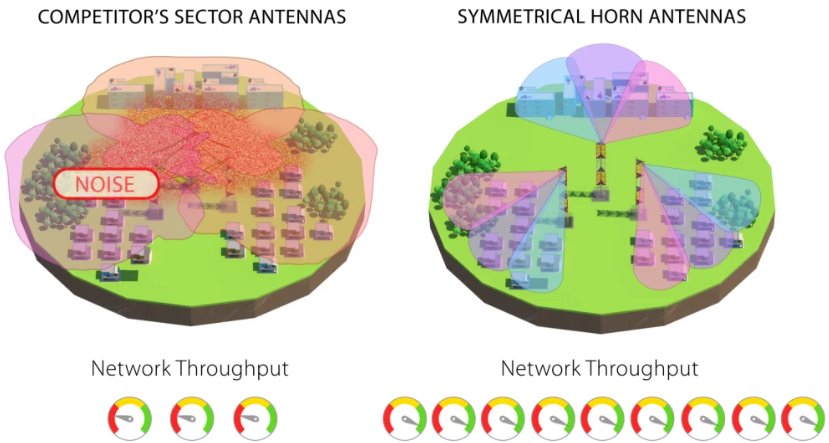

Symmetrical Sectors enable breakthrough scalability of wireless systems that fundamentally re-defines the approach to planning and deployment of wireless networks. We offer wide range of antenna models with exact beam pattern from 30° to 90°. You are no longer forced to compromise your network design with limitations of your current vendor.
Robust and Durable
Symmetrical Sectors are solid metal structures - they are built to last. We use the best available materials: die cast, stamped and extruded aluminium, high quality ABS plastic and stainless steel hardware.
Compact

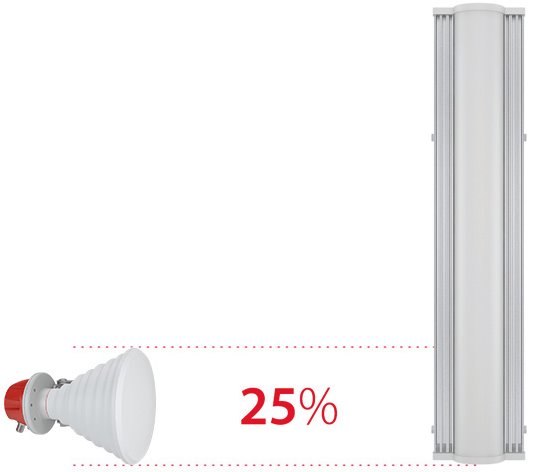

Symmetrical Sector antennas are very compact. They only have 20 - 25% footprint of traditional Sector antennas. Compact size saves tower rental fees and makes them easy to install on places where mainstream Sectors would not be allowed due to their shape and size.
