RF elements TwistPort Adaptor for ePMP 1000 AP and CSM
We are sorry, this product is no longer in our offer.
RF elements TwistPort Adaptor for ePMP 1000 AP and CSM
×
0/0
Parameters
Download
GPSR
Technical parameters
Wireless features
MIMO, SISO:
2 x 2
Polarization:
VH
VSWR:
< 1,4
Cross-Pol Isolation [dB]:
37
Wireless frequency:
5 GHz
Connectors and Interfaces
RF connectors:
TwistPort
Physical characteristics
Purpose:
Outdoor
Material:
Aluminum, UV stabilized ABS plastic
Weight [kg]:
0,5
Width [mm]:
112
Height [mm]:
130
Depth [mm]:
112
Product description

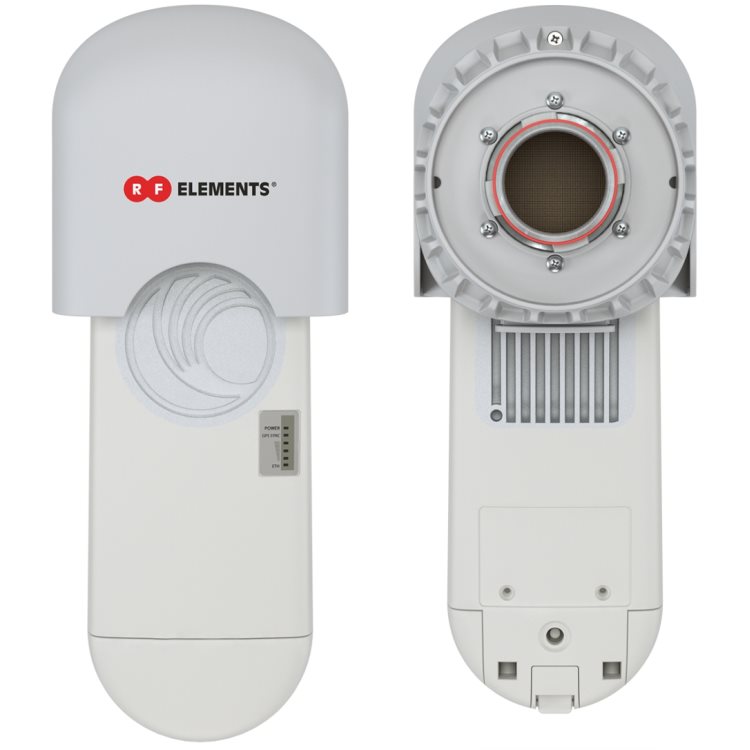

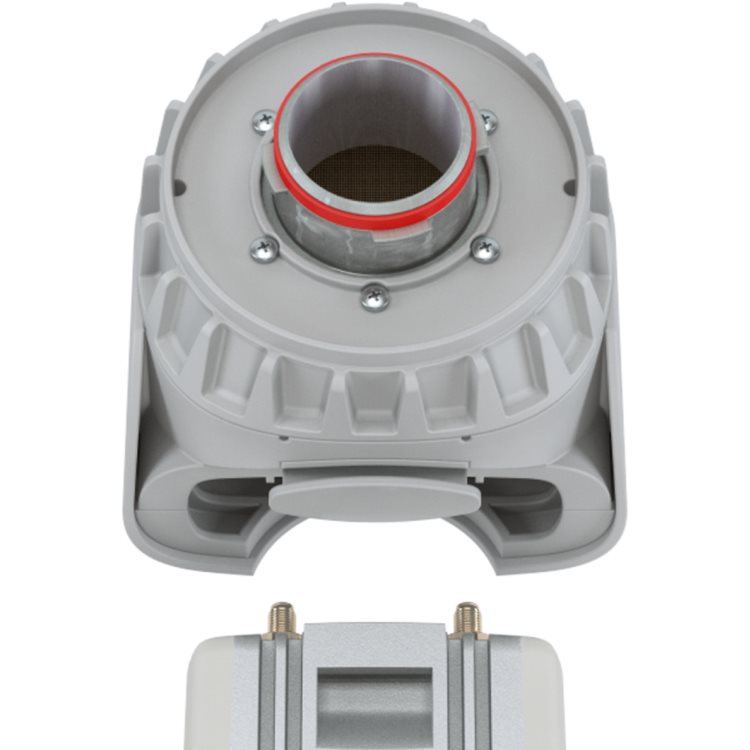

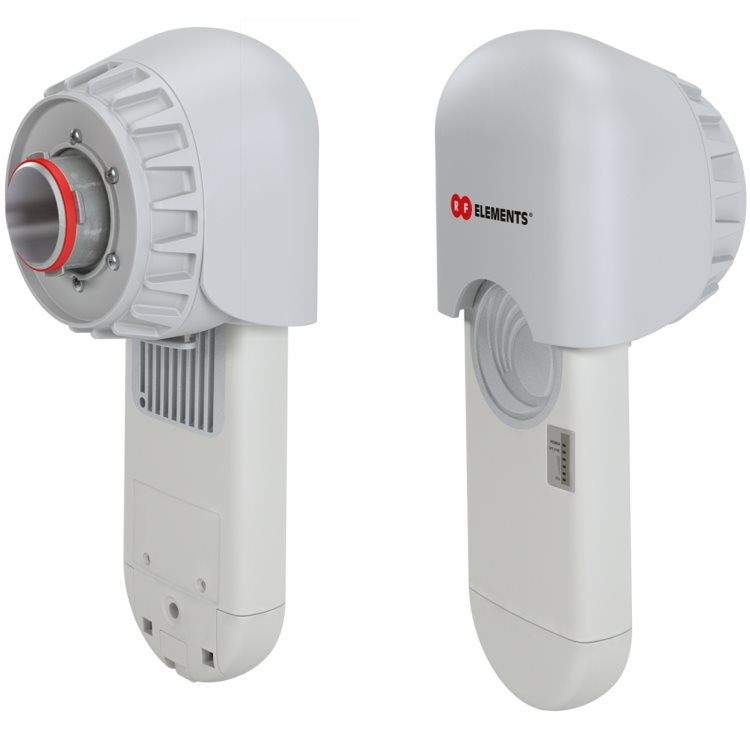

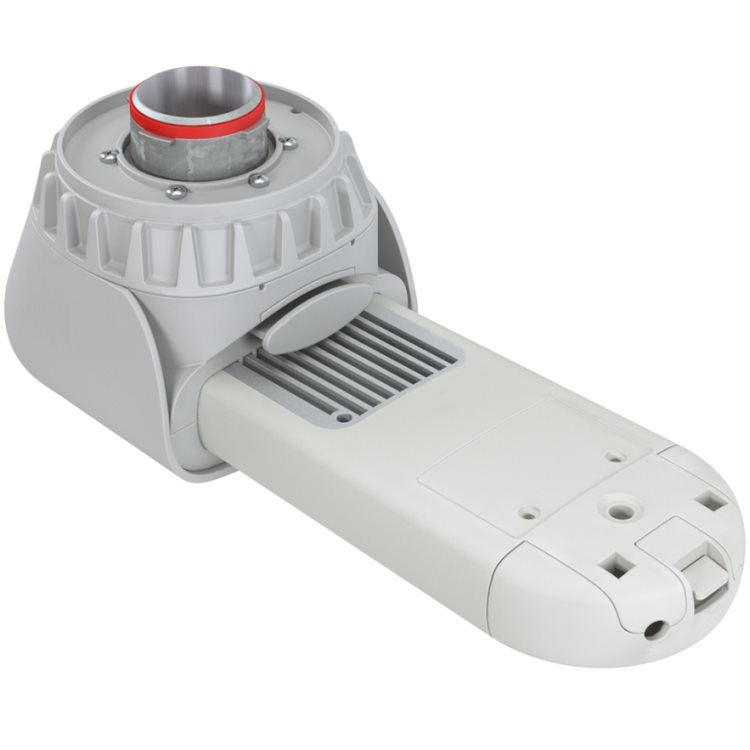

TwistPort Adaptor for Cambium NetworksTM ePMP1000TM Integrated Radios allows easy integration with ePMP1000TM AP and CSM Radios. TwistPort Adaptor uses special coaxial connectors without threads, so the integration of ePMP1000TM Radios is revolutionary easy. Simply slide the radio into the Adaptor until you hear “click”. To unlock, press the button and slide the radio out.
Symmetrical Sectors feature industry changing TwistPortTM Connector, our patent pending quick-locking waveguide port. TwistPortTM is virtually lossless: there are no coaxial RF connectors or RF cables, that cause significant signal loss. Connection and disconnection is brilliantly simple "twist and snap" and can be done with one hand.
TwistPort Adaptors make most popular connectorized radios and MikroTik RouterBoards compatible with TwistPort antennas. Integration into TwistPort eco-system ensures the benefits of low loss, high scalability, easy co-location, simple deployment and easy maintenance.
Download
Datasheet Installation GuideGPSR
