Parameters
Download
Video
GPSR
Technical parameters
Wireless features
F/B ratio [dB]:
35
Wireless frequency:
5 GHz
Elevation beam width (-6dB) [°]:
7
Azimuth beam width (-6dB) [°]:
7
Antenna type:
Directional
Antenna gain [dBi]:
24.5
Connectors and Interfaces
RF connectors:
TwistPort
Physical characteristics
Antenna design:
Parabolic
Designed for mast diameter [mm]:
35 up to 85
Wind load [km/h]:
160
Purpose:
Outdoor
Material:
Aluminum, UV stabilized ABS plastic, Stainless steel
Weight [kg]:
2,7
Width [mm]:
445
Height [mm]:
409
Depth [mm]:
296
Video
Product description

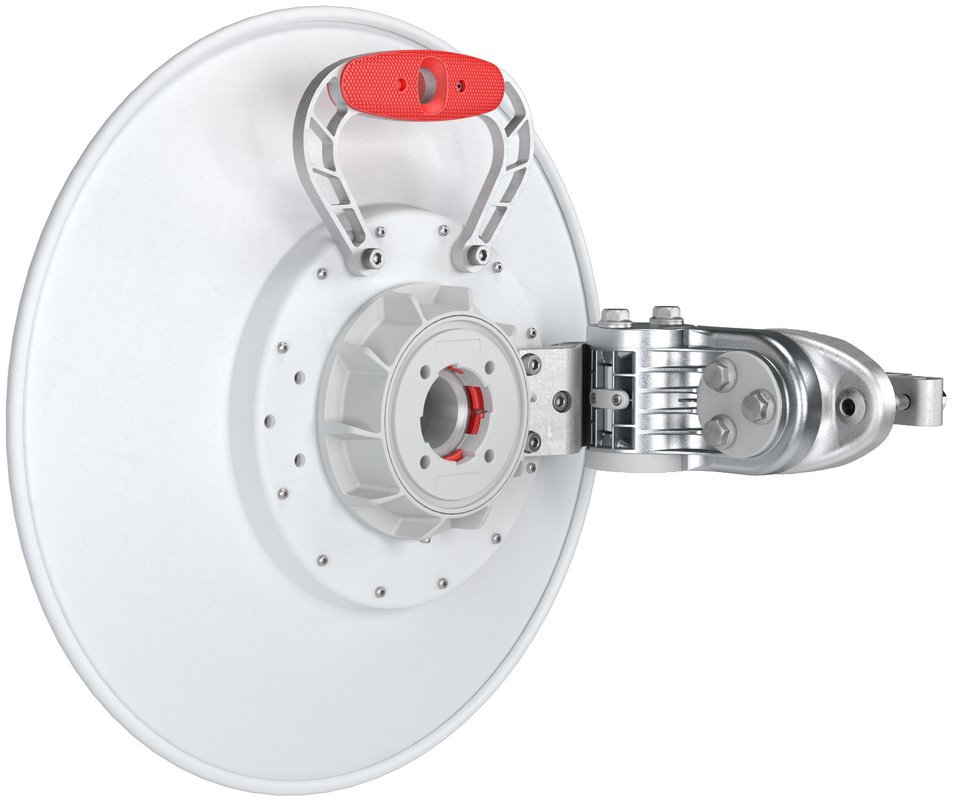

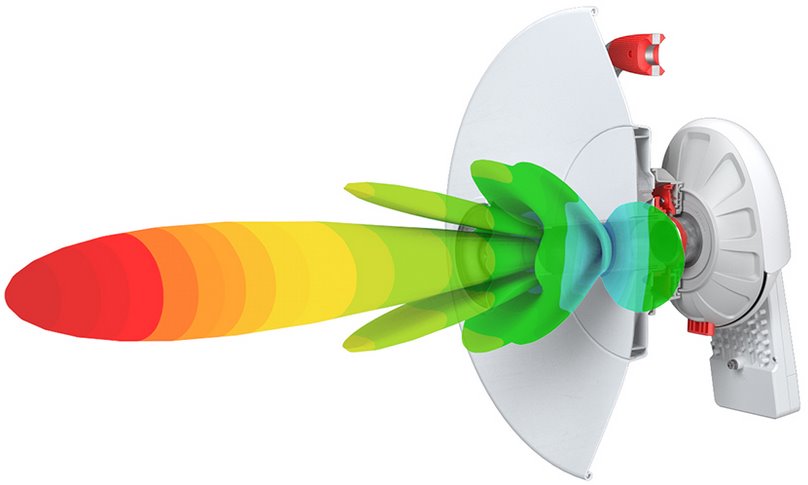

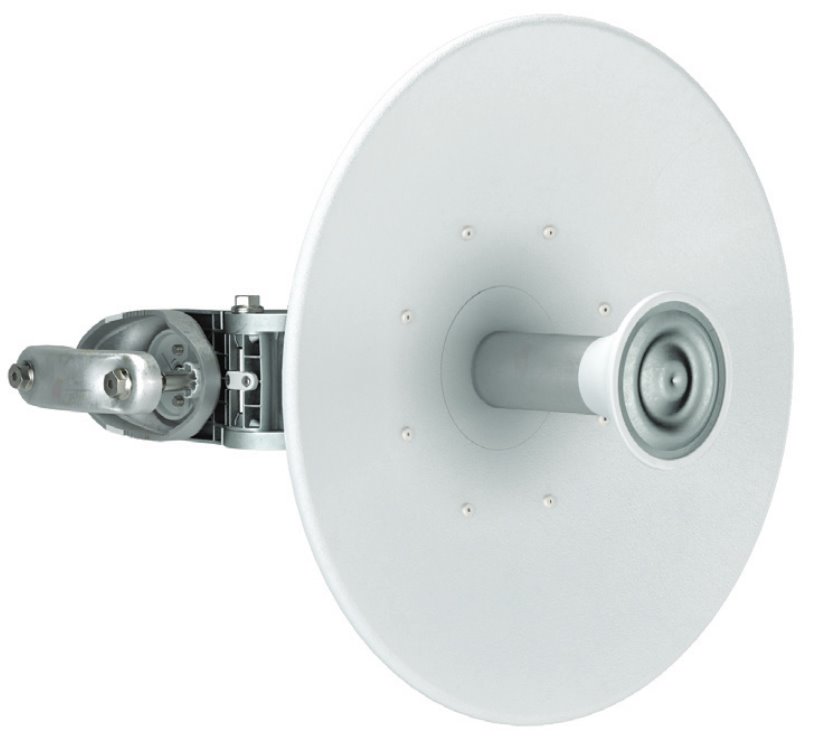

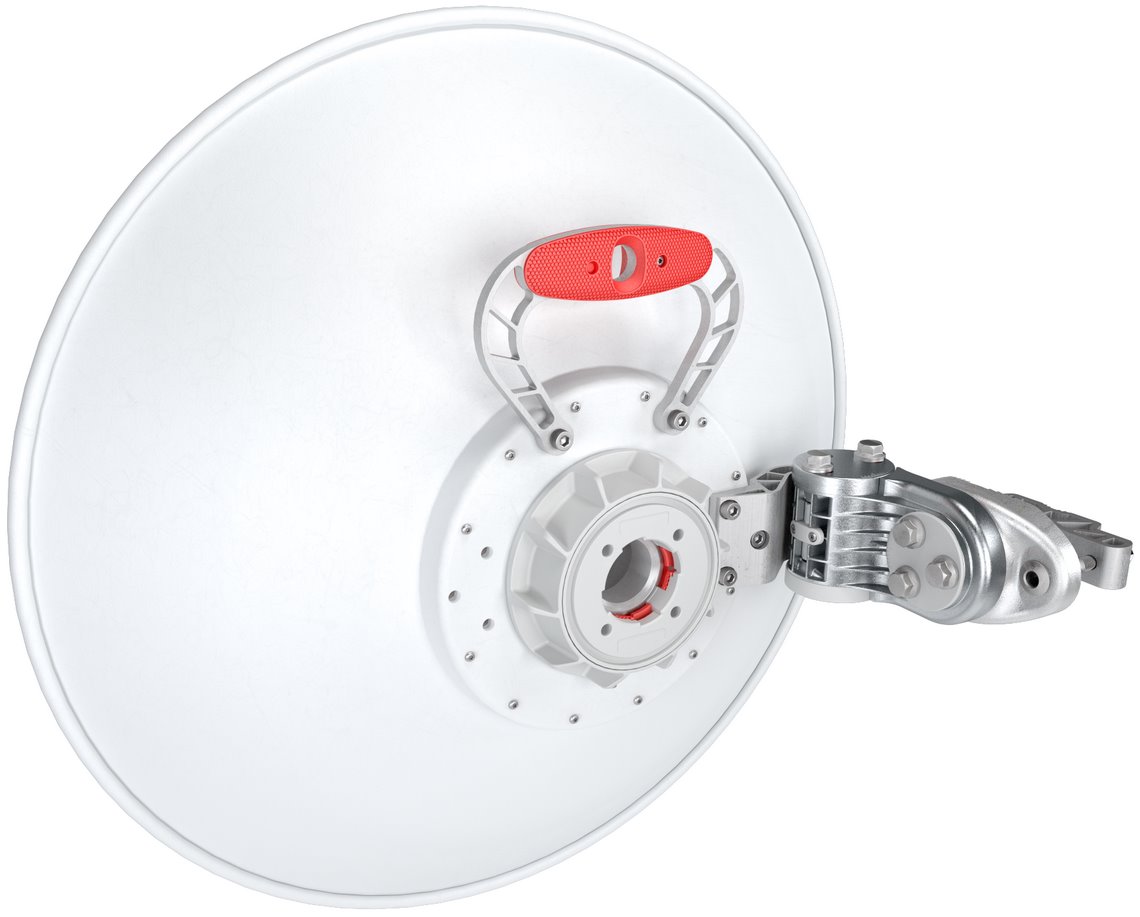

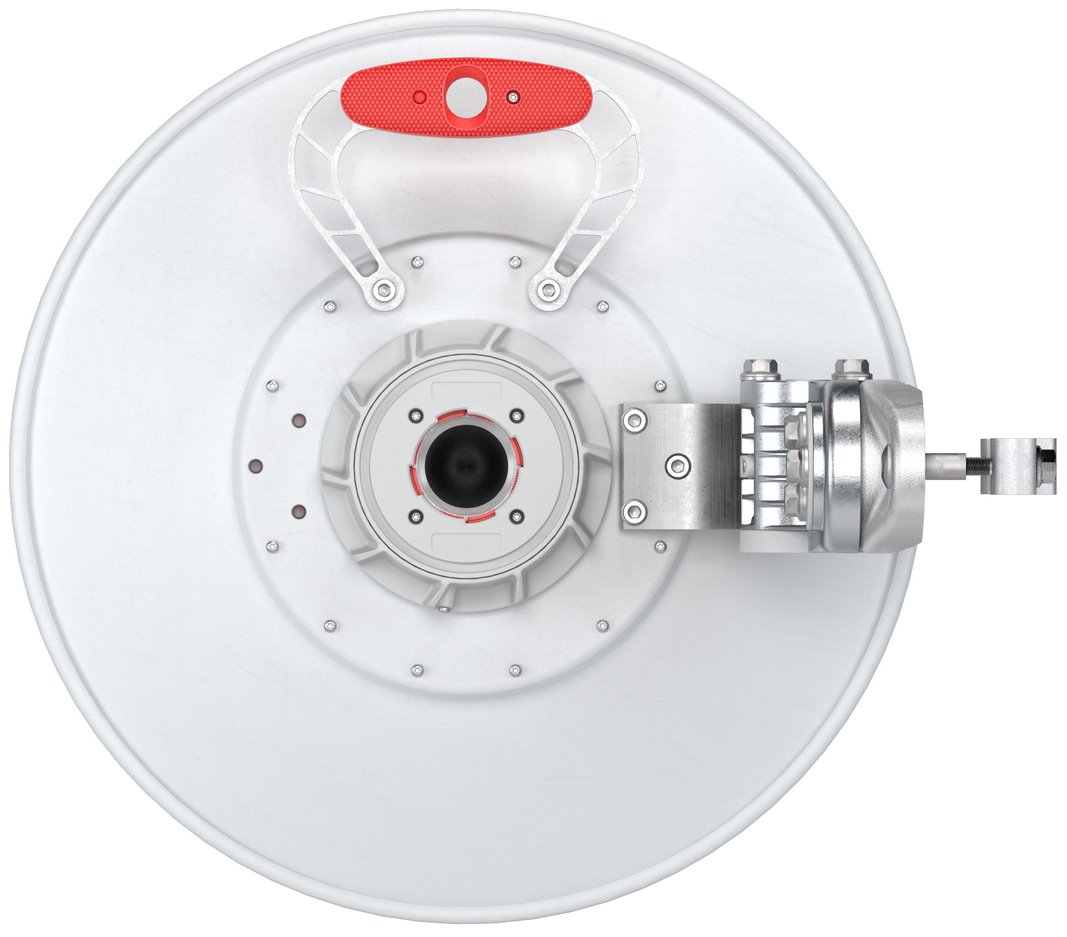

ULD-TP-400 is one of the first directional antenna with TwistPort designed by RF elements characterized by 24.5dBi gain, symmetrical beam angle, reducing side lobes and interference.

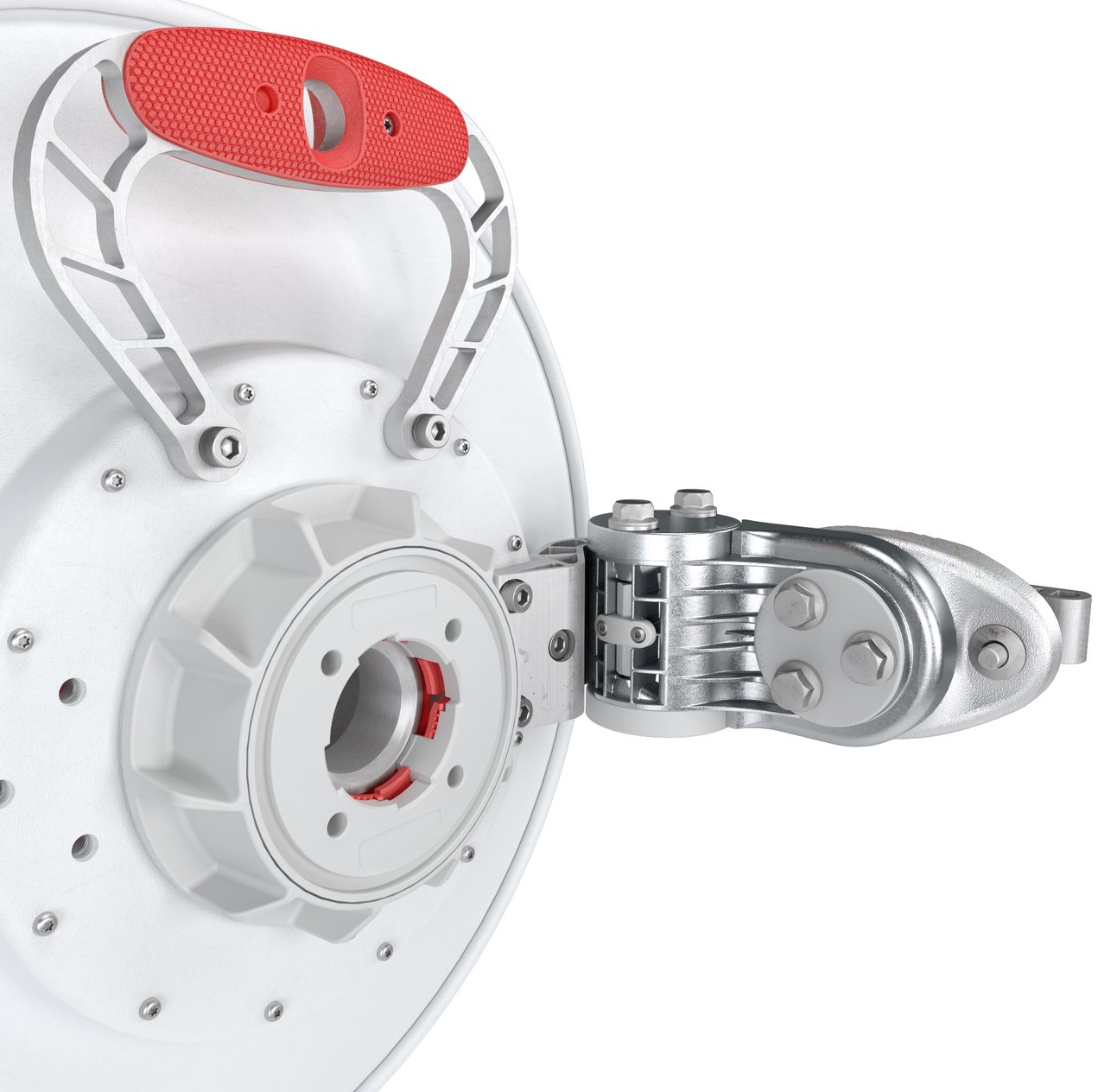

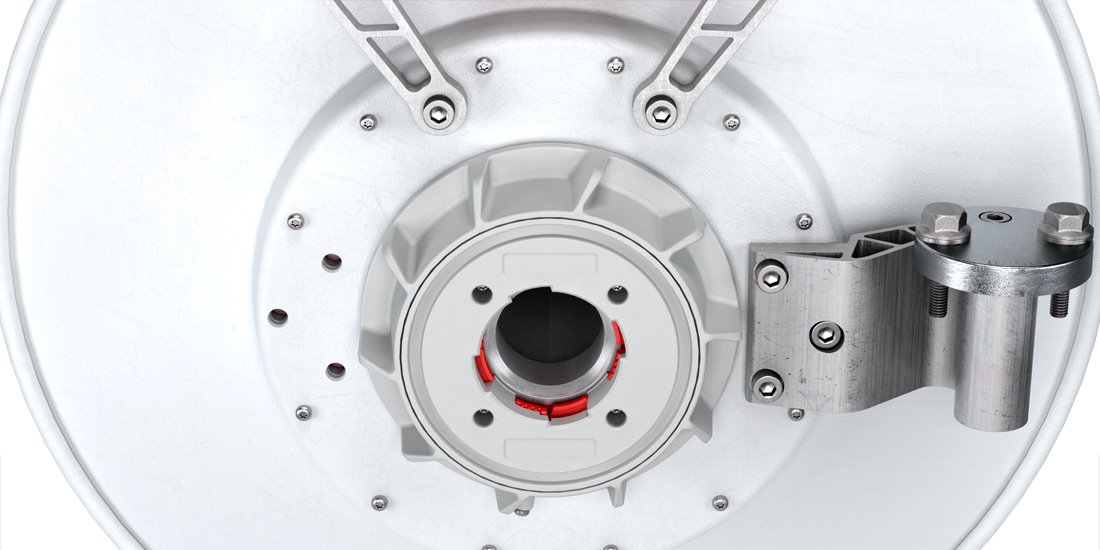

TwistPort Connector
Symmetrical Sectors feature industry changing TwistPortTM Connector, our patent pending quick-locking waveguide port. TwistPortTM is virtually lossless: there are no coaxial RF connectors or RF cables, that cause significant signal loss. Connection and disconnection is brilliantly simple "twist and snap" and can be done with one hand.

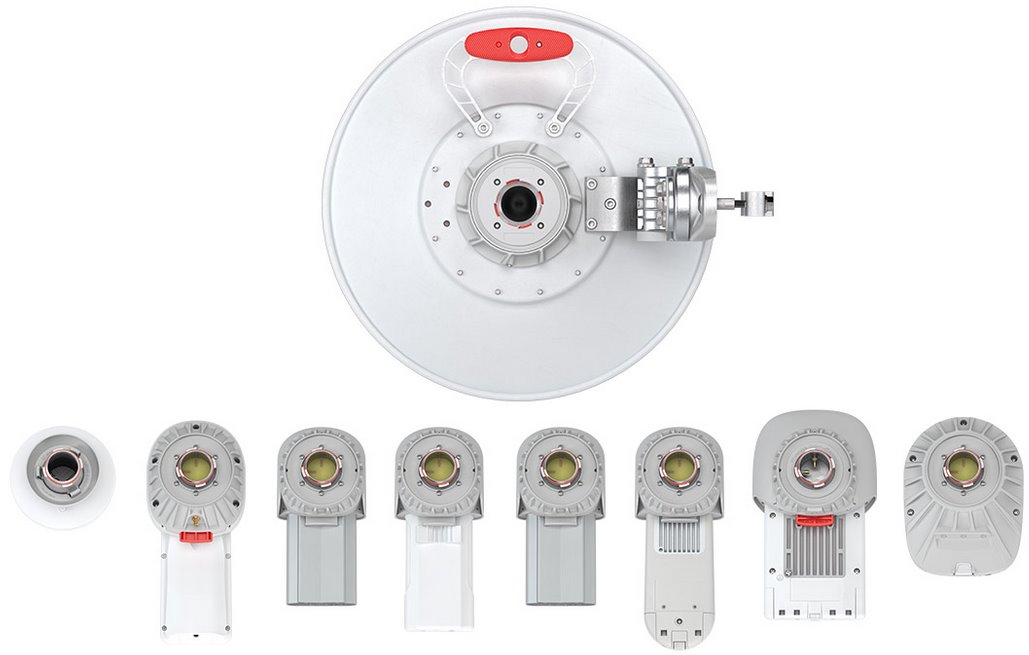

Cross-Platform Compatibility
TwistPortTM connector allows simple and easy integration between any of SimperTM Radios with any of TwistPortTM (TP) enabled antennas when planning your network. When using third party wireless platforms, such as UBNTTM, MikroTikTM or Cambium NetworksTM, you can convert traditional radios into TwistPortTM compatible radio using TwistPortTM Adaptors (TP-A).
Download
Datasheet Installation guideGPSR
