RF elements UltraDish TP-550 directional antenna with TwistPort, 5GHz, 27.5dBi
We are sorry, this product is no longer in our offer.
HK_5_16_200MM
1.35 EUR excl. VAT
1.63 EUR incl. VAT
Not in stock
TPA-PAF-V2
52.51 EUR excl. VAT
63.61 EUR incl. VAT
In Stock
TP-ADAP-e2K
43.08 EUR excl. VAT
52.20 EUR incl. VAT
In Stock
TP-ADAP-C5c
13.48 EUR excl. VAT
16.38 EUR incl. VAT
In Stock
TP-ADAP-IS
18.85 EUR excl. VAT
22.88 EUR incl. VAT
In Stock
TPA-RBC
35.02 EUR excl. VAT
42.45 EUR incl. VAT
In Stock
TPA-RBP
24.23 EUR excl. VAT
29.39 EUR incl. VAT
In Stock
TPA-SMA
18.85 EUR excl. VAT
22.88 EUR incl. VAT
In Stock
TPA-R5AC
26.92 EUR excl. VAT
32.65 EUR incl. VAT
Expected 29.5.2025
TPA-RM5
11.31 EUR excl. VAT
13.76 EUR incl. VAT
In Stock
Parameters
Download
Video
GPSR
Technical parameters
Wireless features
F/B ratio [dB]:
37
Wireless frequency:
5 GHz
Elevation beam width (-6dB) [°]:
6
Azimuth beam width (-6dB) [°]:
6
Antenna type:
Directional
Antenna gain [dBi]:
27.5
Connectors and Interfaces
RF connectors:
TwistPort
Physical characteristics
Antenna design:
Parabolic
Designed for mast diameter [mm]:
15 up to 86
Wind load [km/h]:
160
Purpose:
Outdoor
Material:
Aluminum, UV stabilized ABS plastic, Stainless steel
Weight [kg]:
3,7
Width [mm]:
575
Height [mm]:
575
Depth [mm]:
359
Video
Product description
ULD-TP-550 is one of the first directional antenna with TwistPort designed by RF elements characterized by 27dBi gain, symmetrical beam angle, reducing side lobes and interference.

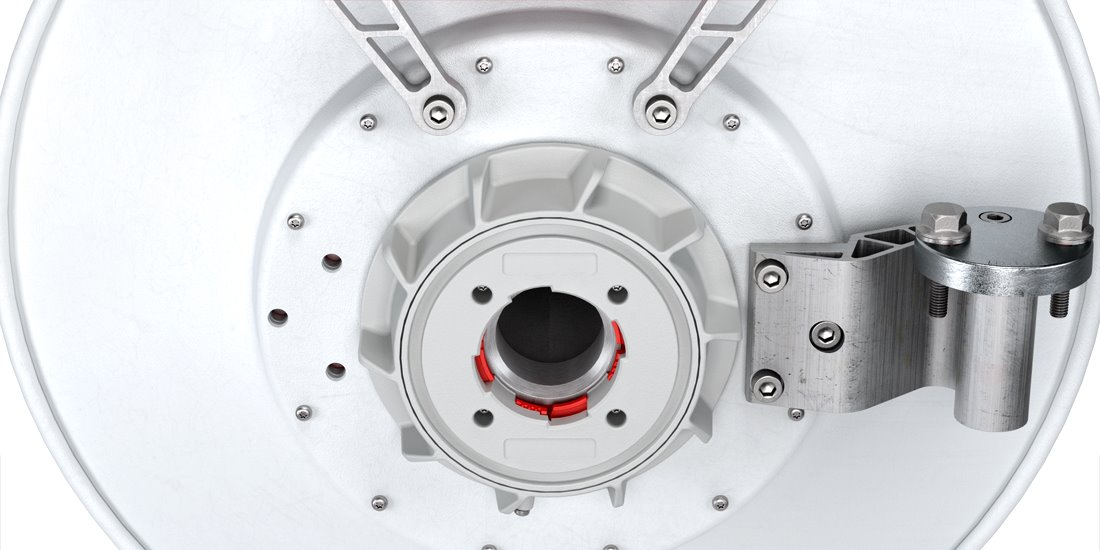

TwistPort Connector
Symmetrical Sectors feature industry changing TwistPortTM Connector, our patent pending quick-locking waveguide port. TwistPortTM is virtually lossless: there are no coaxial RF connectors or RF cables, that cause significant signal loss. Connection and disconnection is brilliantly simple "twist and snap" and can be done with one hand.

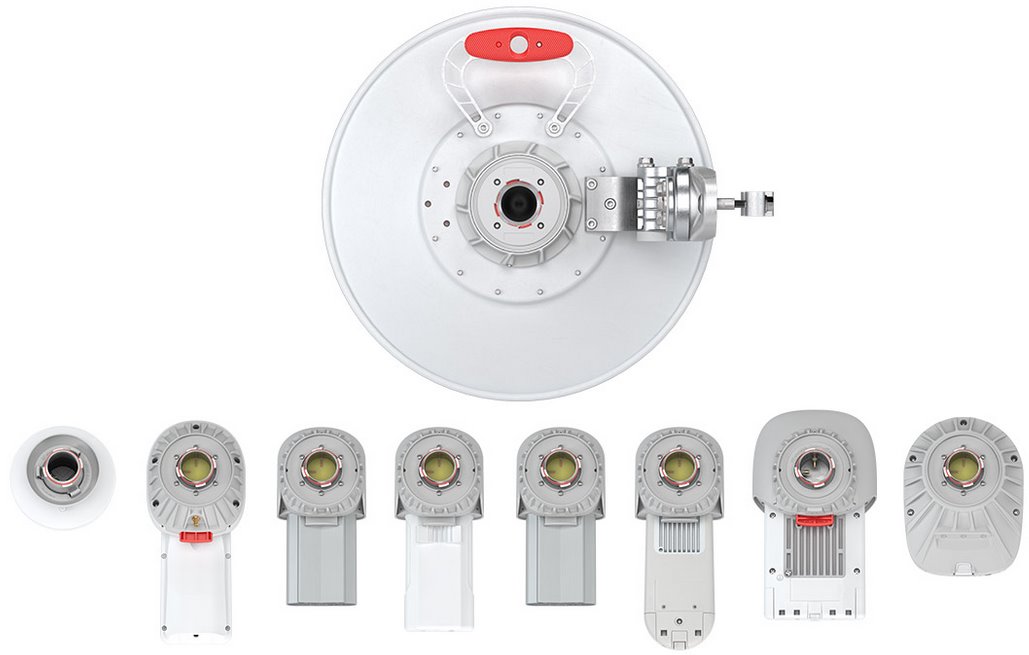

Cross-Platform Compatibility
TwistPortTM connector allows simple and easy integration between any of SimperTM Radios with any of TwistPortTM (TP) enabled antennas when planning your network. When using third party wireless platforms, such as UBNTTM, MikroTikTM or Cambium NetworksTM, you can convert traditional radios into TwistPortTM compatible radio using TwistPortTM Adaptors (TP-A).
Download
Datasheet Installation guideGPSR
