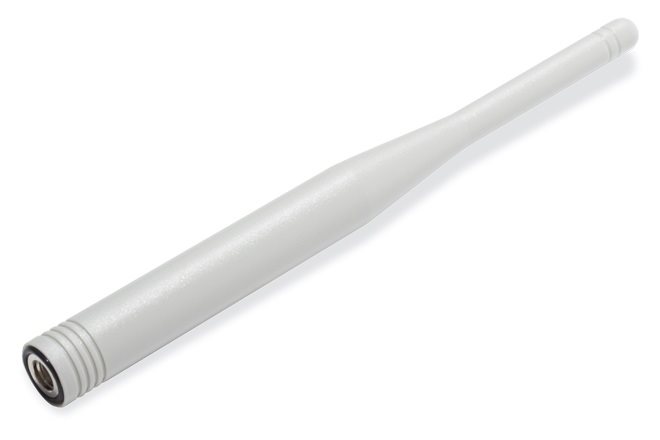

RF elements omni Antenna for Stationbox 2.4GHz/4dBi
We are sorry, this product is no longer in our offer.
Parameters
Download
Technical parameters
Wireless features
MIMO, SISO:
1 x 1
VSWR:
< 1,5
Wireless frequency:
2.4 GHz
Elevation beam width (-6dB) [°]:
13
Azimuth beam width (-6dB) [°]:
360
Antenna type:
Omnidirectional
Antenna gain [dBi]:
4
Connectors and Interfaces
RF connectors:
(1) RSMA male
Physical characteristics
Purpose:
Outdoor
Material:
UV stabilized plastic
Weight [kg]:
0,1
Width [mm]:
14
Height [mm]:
158
Depth [mm]:
14
Product description
RF elements OARDSBX244 2.4GHz 4dBi Omnidirectional Straight style antenna with RP-SMA connector (for indoor or outdoor use). Works great for WiFi HotSpots. Measures 6.22 inches (158mm) long.
RF elements now offers 2.4Ghz 4dBi Dipole antennas with RPSMA connectors! Take the BaseBox2 and simply attach two of those antennas on connectors of BaseBox2 to have 2x2 MIMO 2.4Ghz AP! By this you can have "2.4Ghz OmniTik", ideal for Outdoor Campus areas, for example, campgrounds or trailer parks. Antennas are waterproof, so you can use the BaseBox without the top cover if both antennas are properly attached.
