SAMSUNG HTV HG24ED470AKXEN 24"/1366x768/300nits/6,5ms/VESA/DVB-T/C /Home Menu, LYNK REACH/

Product description

Display
Backlight
LED

Screen Size (Inch)
24"

Resolution
1366 X 768
Video
Picture Engine
HyperReal

Dynamic Contrast Ratio
Mega Contrast

Micro Dimming
N/A

Active Crystal Color
N/A
Wide Color Enhancer (Plus)
Yes

Auto Motion Plus
N/A

Film Mode
Yes
Audio
Dolby Digital Plus
Yes

Virtual Surround
N/A

DTS Codec
DTS Codec

Sound Output (RMS)
10W(L:5W, R:5W)
Speaker Type
2CH(Down Firing w/Bass Reflex)

Wallmount Sound Mode
Yes

TV SoundConnect
N/A

BT Headset Support
N/A
Smart Interaction
Voice Control
N/A
Convergence
TV to Mobile - Mirroring
N/A

Mobile to TV - Mirroring, DLNA
N/A

Samsung SMART View
N/A
Feature
Sports Mode
Yes

All Care Protection
N/A

Samsung 3D
N/A

Processor
N/A
Accessibility
N/A

Digital Clean View
Yes

Auto Channel Search
Yes

Auto Power Off
Yes
BD Wise Plus
N/A

Caption (Subtitle)
Yes

ConnectShare™ (HDD)
N/A

ConnectShare™ (USB 2.0)
Yes
EPG
Yes

Game Mode
Yes

OSD Language
27 European Languages

Picture-In-Picture
Yes
BT HID Built-in
N/A

USB HID Support
N/A

Teletext (TTX)
Yes
System
Digital Broadcasting
DVB-T2/C

Analog Tuner
Yes

CI (Common Interface)
CI+(1.3)

Data Broadcasting
N/A
Hospitality Feature
Samsung LYNK™SINC Compatibility
N/A

Samsung LYNK™ HMS Compatibility
N/A

H.Browser Compatibility
N/A

Samsung LYNK™REACH (IP)
N/A
Samsung LYNK™REACH (RF)
REACH 4.0

Samsung LYNK™REACH
Server Compatibility
Yes

Hospitality Home Menu
Yes

Bluetooth Music Player (Mobile › TV)
N/A
Hospitality Plug&Play
(Easy Set-up)
Yes

Auto Source Mode
Yes

Power on Mode
Yes

Hotel Channel List
Yes
Channel Menu Display
Yes

Mixed Channel List
(ATSC, DVB-T/T2/C/S2, Analog)
Yes

My Channel
Yes

Energy Saving Mode(BLU control)
Yes
Logo Display with
Time Out Setting (BMP/Movie)
Yes

Welcome Message
Yes

RJ12/IR pass through
Yes

External Clock Compatibility
N/A
Clock Back Up Supply
Yes

External Clock Dimming Control
N/A

Software Clock
Yes

Multi Code Remote Control
Yes
Screwed Battery Cover
Yes

Sound bar compatibility
Yes

Music Mode
(Input : PC/AV/Component/HDMI)
N/A

Music Mode BackLight on/off
N/A
TTX Clock Update (Analogue)
Yes

USB Cloning
Yes

Smoovie Compatibility
Yes

Soft AP
N/A
On/Off Timer (Schedule)
Yes

Wake-up Timer (Alarm)
Yes

Samsung LYNK™ DRM
Yes

Pro:Idiom
N/A
bLAN
N/A

Security Mode
Yes

S/W EPG (Solution EPG)
Yes

Wake on LAN (WOL)
N/A
IP Over Coax
N/A
Input & Output
HDMI (Side/Rear)
0/1

Anynet+ (HDMI-CEC)
Yes

USB (Side/Rear)
1/0

Pillow Speaker Jack (Side/Rear)
N/A
Component In (Y/Pb/Pr)
(Side/Rear)
N/A

Variable Audio Out (Side/Rear)
N/A

Composite In (AV) (Side/Rear)
N/A

Variable Audio Out Volume Control
(Side/Rear)
N/A
Ethernet (LAN) (Side/Rear)
N/A

Video Out (Side/Rear)
N/A

Headphone (Side/Rear)
0/1

RJ12 (Side/Rear)
0/1
Audio Out (Mini Jack / LR) (Side/Rear)
N/A

RJP (Remote Jackpack) (Side/Rear)
0/1

Digital Audio Out (Optical)
(Side/Rear)
N/A

Headphone ID (Side/Rear)
0/1
RF In (Terrestrial / Cable input / Satellite Input)
0/1

Door-Eye Control (Side/Rear)
N/A

Ex-Link ( RS-232C )
N/A

Door-Eye Video In (Side/Rear)
N/A
CI Slot (Side/Rear)
1/0

PC In (D-sub)(Side/Rear)
N/A

Scart (Side/Rear)
0/1

PC/DVI Audio In (Mini Jack)(Side/Rear)
N/A
HDMI A / Return Ch. Support
Yes

Ethernet Bridge (LAN-Out)
N/A

Wireless LAN Built-in
N/A
Design
Front Color
Black

Stand Type
Square

Swivel (Left/Right)
N/A
Eco
Energy Efficiency Class
A

Eco Sensor
N/A
Power
Power Supply (V)
AC220-240V 50/60Hz

Power Consumption (Max) (W)
33

Power Consumption (Energy Saving Mode) (W)
13

Power Consumption (Stand-by) (W)
0.5
Power Consumption (Typical)
21

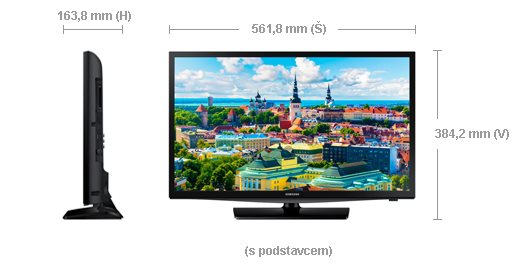

Dimension
Set Size without Stand (WxHxD)(mm)
561.8 x 349.1 x 65.2

Set Size with Stand (WxHxD)(mm)
561.8 x 384.2 x 163.8

Package Dimension (WxHxD)(mm)
743.0 x 407.0 x 114.0
Weight
Set Weight without Stand (kg)
3.9

Set Weight with Stand (kg)
4.1

Package Weight (kg)
5.1
Accessory
Remote Controller Model
TM1240A

Power Cable
Yes

Batteries (for Remote Control)
Yes

Quick Install Guide
Yes
Samsung Smart Control (Included)
N/A

Data Cable
Yes

Ultra Slim Wall Mount Support
N/A

Stand Mount Kit
N/A
Mini Wall Mount Support
N/A

Security Screws
N/A

Vesa Wall Mount Support
Yes

Angle Adaptor (for Side RF tuner)
N/A
