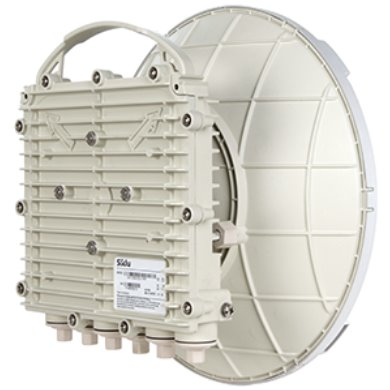

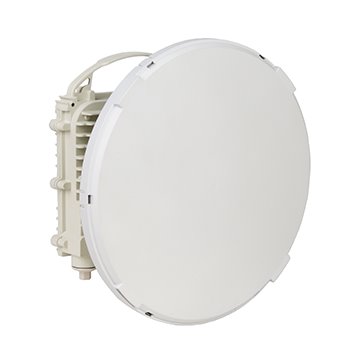

Siklu EtherHaul 1200FX with 31cm antenna, 1 Gbps Full Duplex, Tx High
We are sorry, this product is no longer in our offer.
Siklu EtherHaul 1200FX with 31cm antenna, 1 Gbps Full Duplex, Tx High
×
0/0
| Manufacturer |
Siklu |
|
|---|---|---|
| Code | 10134149 | |
| Part No. | EH-1200FX-ODU-H-1ft | |
3021324
44.89 USD excl. VAT
54.32 USD incl. VAT
stiqtyfree:12
_17:
avail:2
infocode: stock
queu:
shipmin:
In Stock
K2530S602VV100
36.46 USD excl. VAT
44.12 USD incl. VAT
stiqtyfree:43
_17:
avail:2
infocode: stock
queu:
shipmin:
In Stock
KC40P60V50Z
49.83 USD excl. VAT
60.29 USD incl. VAT
stiqtyfree:3
_17:
avail:2
infocode: stock
queu:
shipmin: 30.12.2077
In Stock
RS-50-48
16.22 USD excl. VAT
19.75 USD incl. VAT
stiqtyfree:0
_17:
avail:0
infocode: avail
queu:
shipmin: 30.12.2077
Ordered, unknown date
EST06075
7.36 USD excl. VAT
8.91 USD incl. VAT
stiqtyfree:0
_17:
avail:0
infocode: avail
queu:
shipmin:
Not in stock
PCU5E-1YW-MS
0.74 USD excl. VAT
0.90 USD incl. VAT
stiqtyfree:0
_17:
avail:0
infocode: avail
queu:
shipmin: 30.1.2026
Expected 30.1.2026
PCU5E-5-MSC
4.45 USD excl. VAT
5.38 USD incl. VAT
stiqtyfree:133
_17:
avail:2
infocode: stock
queu:
shipmin:
In Stock
Parameters
Download
Technical parameters
Wireless features
Frequency range [MHz]:
(Tx) 81000 - 86000, (Rx) 71000 - 76000
Maximum modulation:
64 QAM
Channel bandwidth [MHz]:
250, 500
Transmission speed - 80GHz [Mb/s]:
1000, Full Duplex
Output power 80GHz [dBm]:
7
Security:
128bit AES, 256bit AES
Elevation beam width (-6dB) [°]:
0,8
Azimuth beam width (-6dB) [°]:
0,8
Antenna gain [dBi]:
43
Connectors and Interfaces
LAN speed:
(2) 10/100/1000Mbps
Optical interfaces:
(2) 1000Mbps
Other features:
Alignment voltage connector
Power
Power over Ethernet:
802.3at+
Power type:
PoE, DC terminal
Redundant power supply:
Yes
Max. power consumption [W]:
32,8
Power via connector/terminal:
36 .. 57V DC
Physical characteristics
Designed for mast diameter [mm]:
48 up to 100
Radom:
Yes
Operating temperature [°C]:
-45 up to 55
Weight [g]:
4500
Width [mm]:
310
Height [mm]:
310
Depth [mm]:
130
Software
Management:
Web management, SSH
Default IP address:
192.168.0.1
Default login and password:
admin / admin
Product description
Siklu EtherHaul 1200FX with 1ft antenna is unlicensed wireless link in many countries with a maximum transmission capacity 1 Gbps Full Duplex, designed for applications up to 1,35km with 99.999% accessibility, full capacity utilization and maximum transmission power - 7dBm.

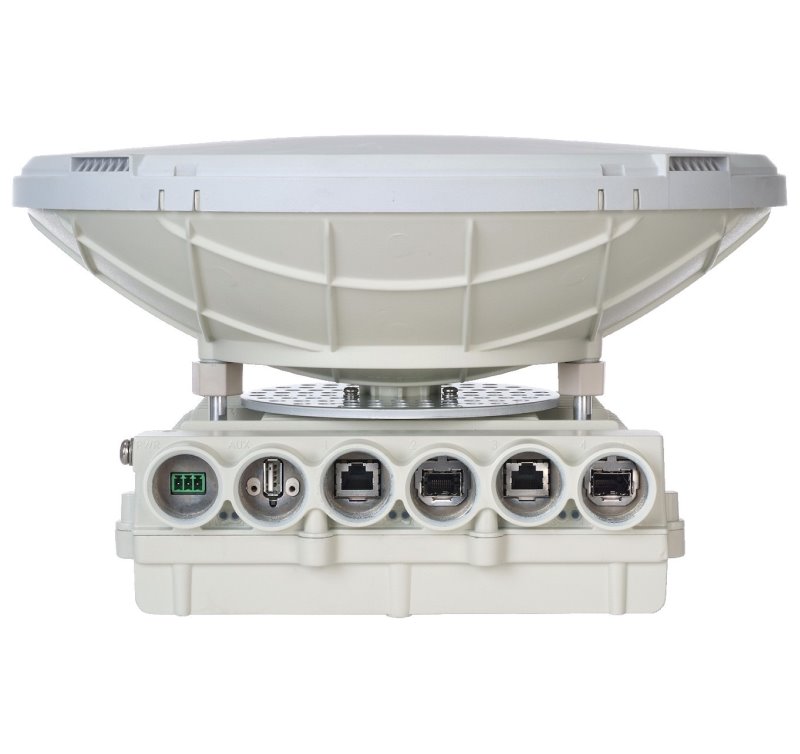

Siklu EtherHaul contains 2 GLAN Ethernet and 2 SFP ports. It also contains a power terminal adapter and 2 pins for voltrmeter aiming.
Unit is powering by PoE (802.3at+) over the first Ethernet port or via a DC terminal block with a large margin voltage 35 up to 57V DC.
For calculate signal, reliability and transmition speed we recommend using a web application called Siklu Budget Calculator.

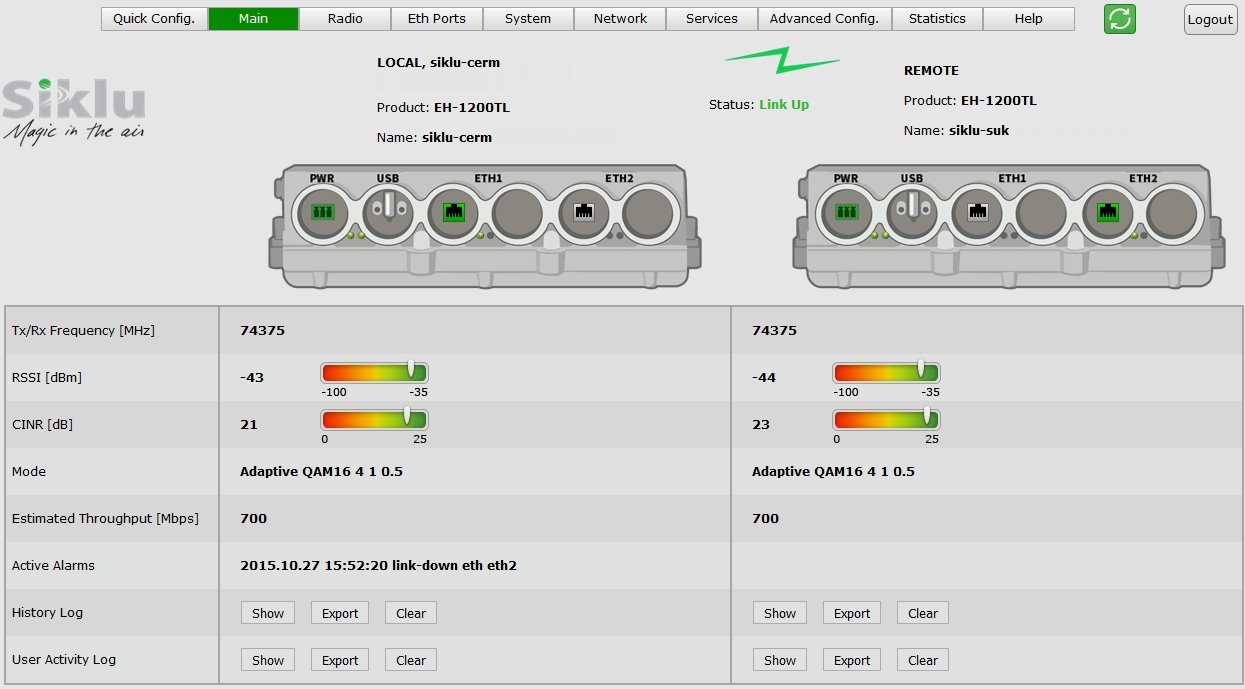

Unit is managed through the terminal and through a Web browser with a new intuitive interface.
Price is for one radio unit. For completely link you need to order a unit with the opposite transmiting frequency - see related products.

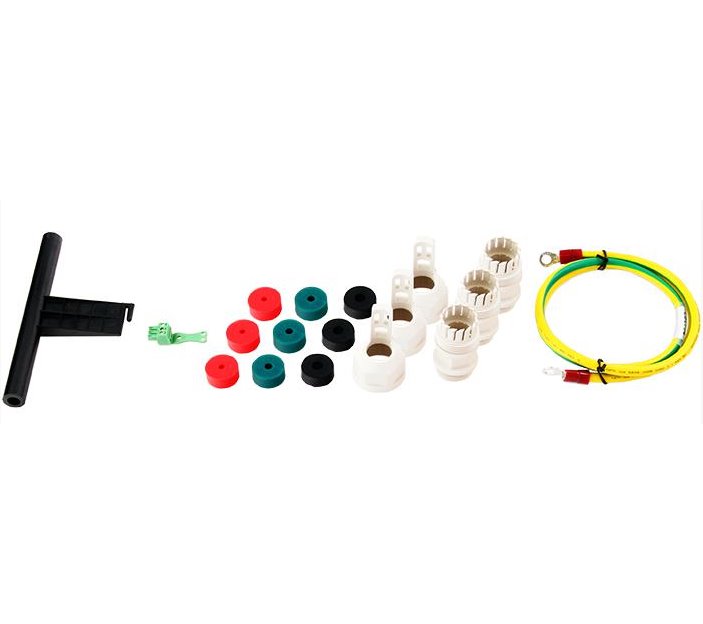

Package contains
