Siklu EtherHaul 1200TL with 1ft Antenna, 700Mbps Half Duplex
We are sorry, this product is no longer in our offer.
Siklu EtherHaul 1200TL with 1ft Antenna, 700Mbps Half Duplex
×
0/0
3021324
37.20 EUR excl. VAT
45.01 EUR incl. VAT
In Stock
K2530S602VV100
30.22 EUR excl. VAT
36.57 EUR incl. VAT
In Stock
KC40P60V50Z
41.29 EUR excl. VAT
49.96 EUR incl. VAT
In Stock
RS-50-48
15.29 EUR excl. VAT
18.60 EUR incl. VAT
In Stock
EST06075
6.10 EUR excl. VAT
7.38 EUR incl. VAT
Not in stock
PCU5E-1YW-MS
0.61 EUR excl. VAT
0.74 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.69 EUR excl. VAT
4.46 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Wireless features
Frequency range [MHz]:
71000 - 76000
Maximum modulation:
16 QAM
Channel bandwidth [MHz]:
500
Transmission speed - 80GHz [Mb/s]:
700, Half Duplex
Output power 80GHz [dBm]:
5
Security:
128bit AES, 256bit AES
Elevation beam width (-6dB) [°]:
0,8
Azimuth beam width (-6dB) [°]:
0,8
Antenna gain [dBi]:
43
Connectors and Interfaces
LAN speed:
(2) 10/100/1000Mbps
Optical interfaces:
(2) 1000Mbps Combo
Other features:
Alignment voltage connector
Power
Power over Ethernet:
802.3at
Power type:
PoE, DC terminal
Max. power consumption [W]:
25
Power via connector/terminal:
21 .. 57V DC
Physical characteristics
Designed for mast diameter [mm]:
48 up to 100
Radom:
Yes
Operating temperature [°C]:
-45 up to 55
Weight [g]:
3500
Width [mm]:
310
Height [mm]:
310
Depth [mm]:
130
Software
Management:
Web management, SSH
Default IP address:
192.168.0.1
Default login and password:
admin / admin
Product description

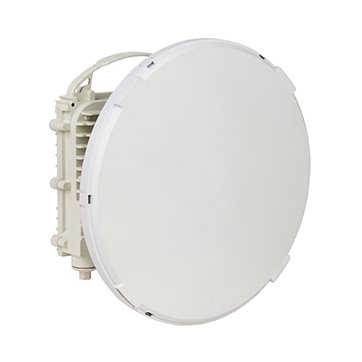

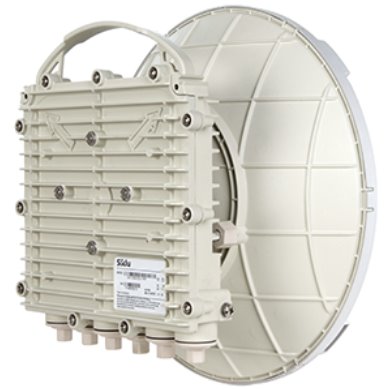

Siklu EtherHaul 1200TL with 1ft antenna is unlicensed wireless link in many countries with a maximum transmission capacity 700 Mbps Half Duplex, designed for applications up to 1.3km with 99.999% accessibility, full capacity utilization and maximum transmission power - 5dBm.

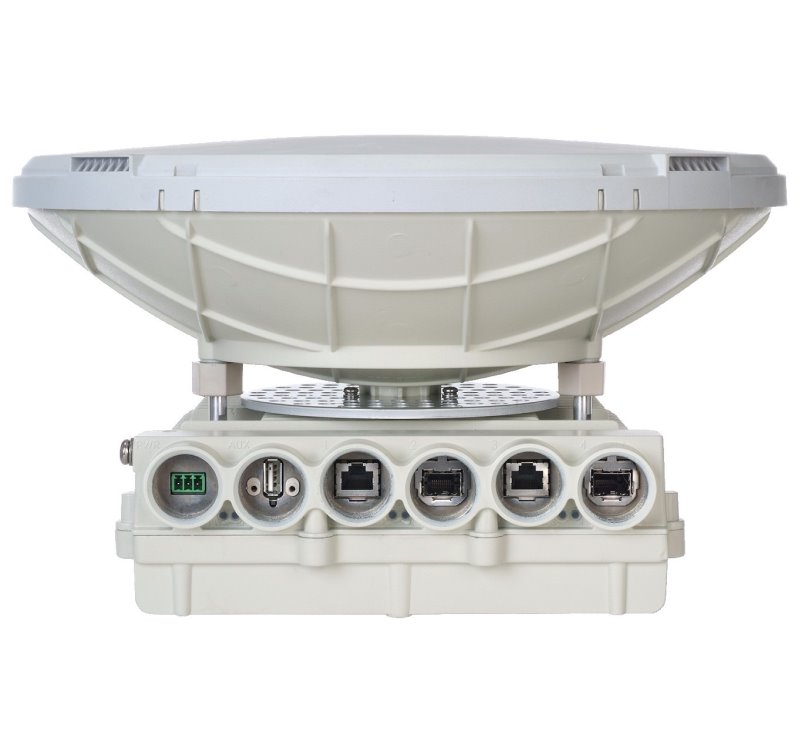

Siklu EtherHaul contains 2 GLAN Ethernet and 2 SFP Combo ports. It also contains a power terminal adapter and 2 pins for voltrmeter aiming.
Unit is powering by PoE (802.3at) over the first Ethernet port or via a DC terminal block with a large margin voltage 21 up to 57V DC.
For calculate signal, reliability and transmition speed we recommend using a web application called Siklu Budget Calculator.
Unit is managed through the terminal and through a Web browser with a new intuitive interface.
Price is for one radio unit. For completely link you need to order 2 pieces of this unit.

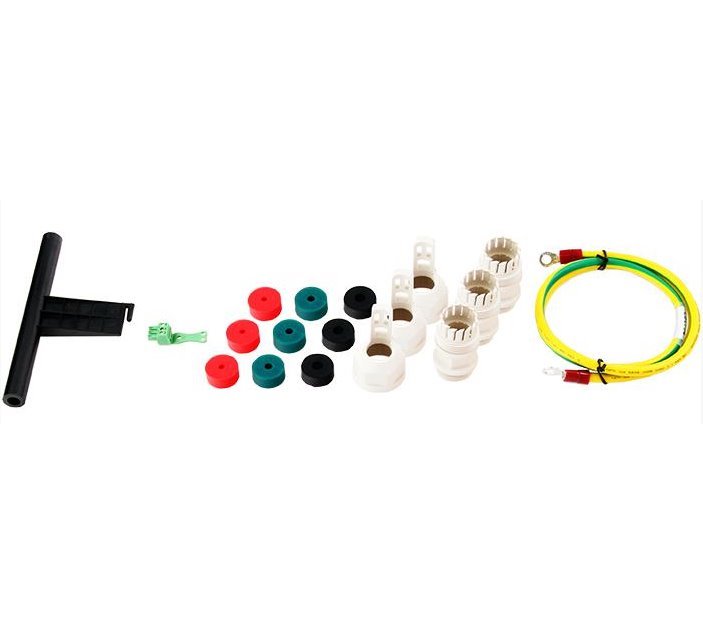

Package contains
