Solarix Thermally Insulated Cabinet LC-07 15U 700x400 RAL 7035 with Ventilation Unit (left side)

Product description

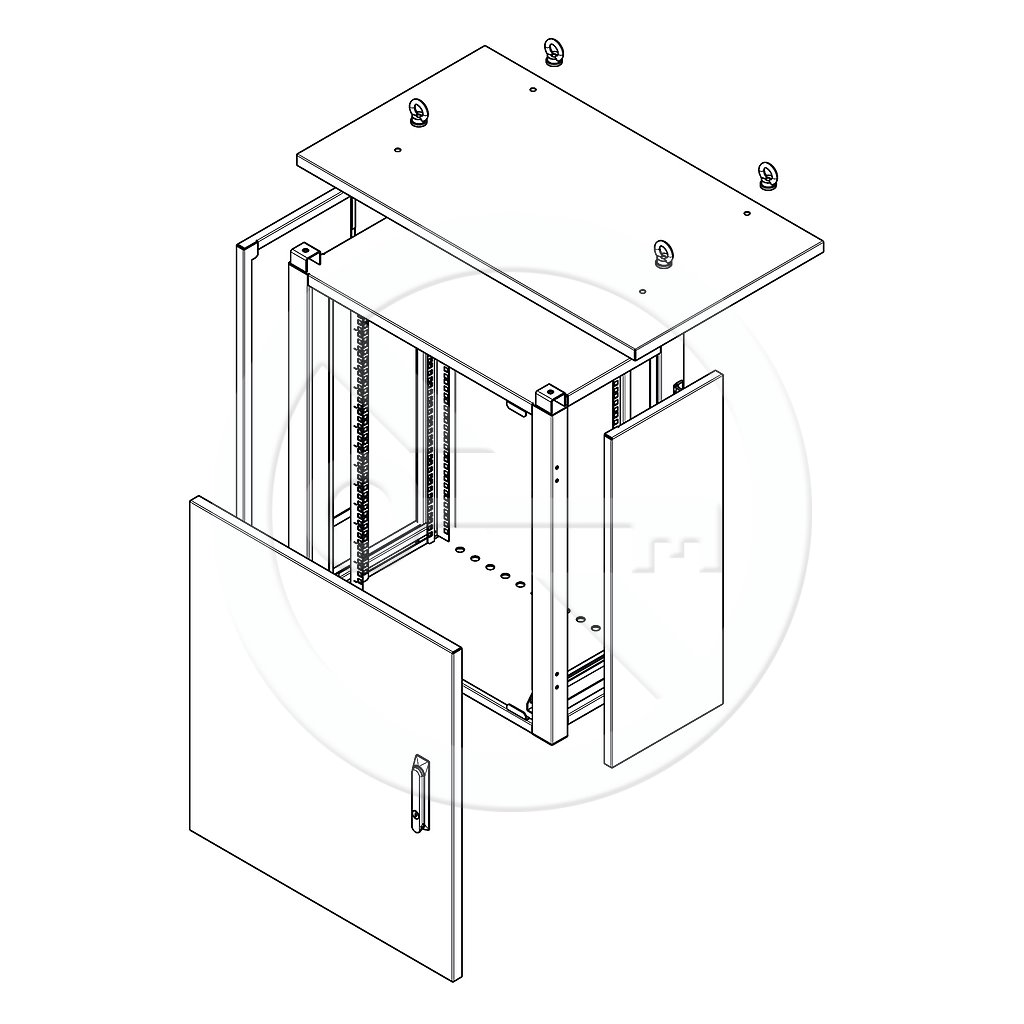

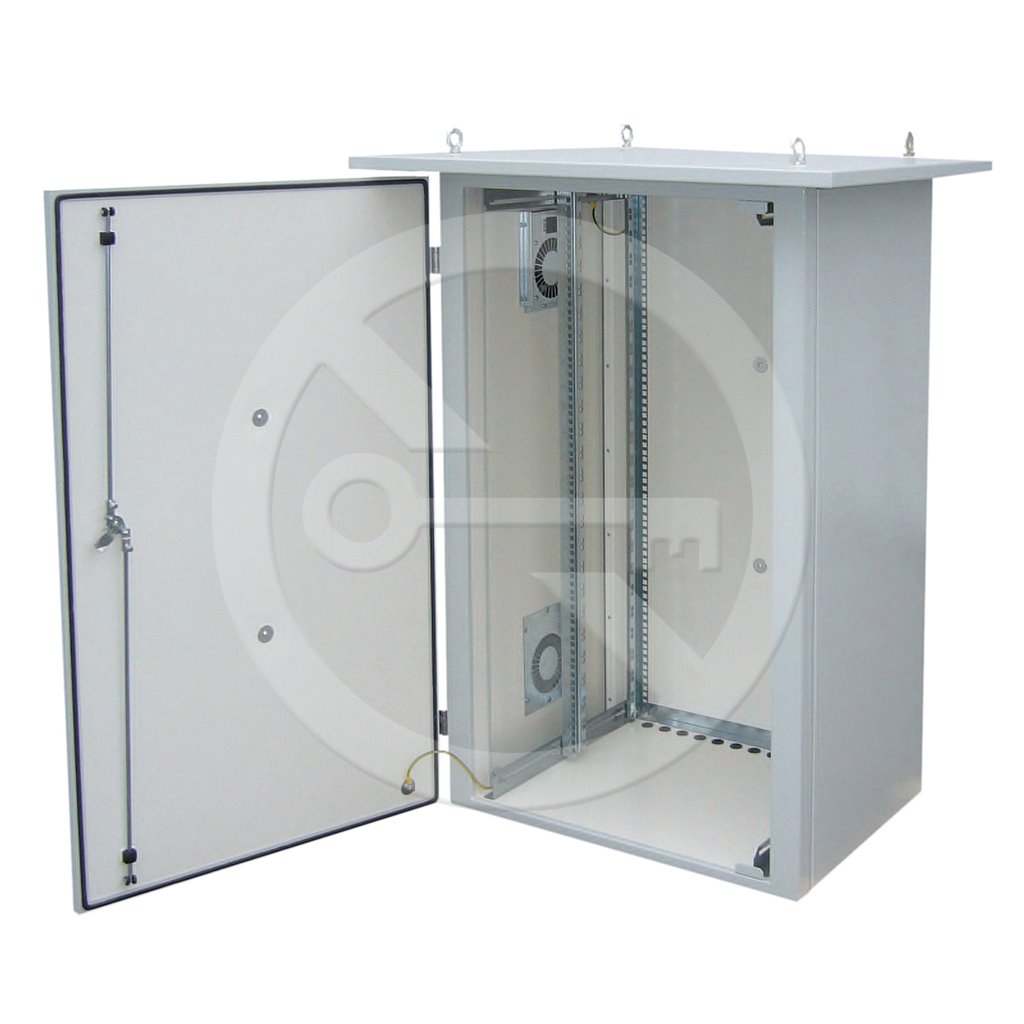

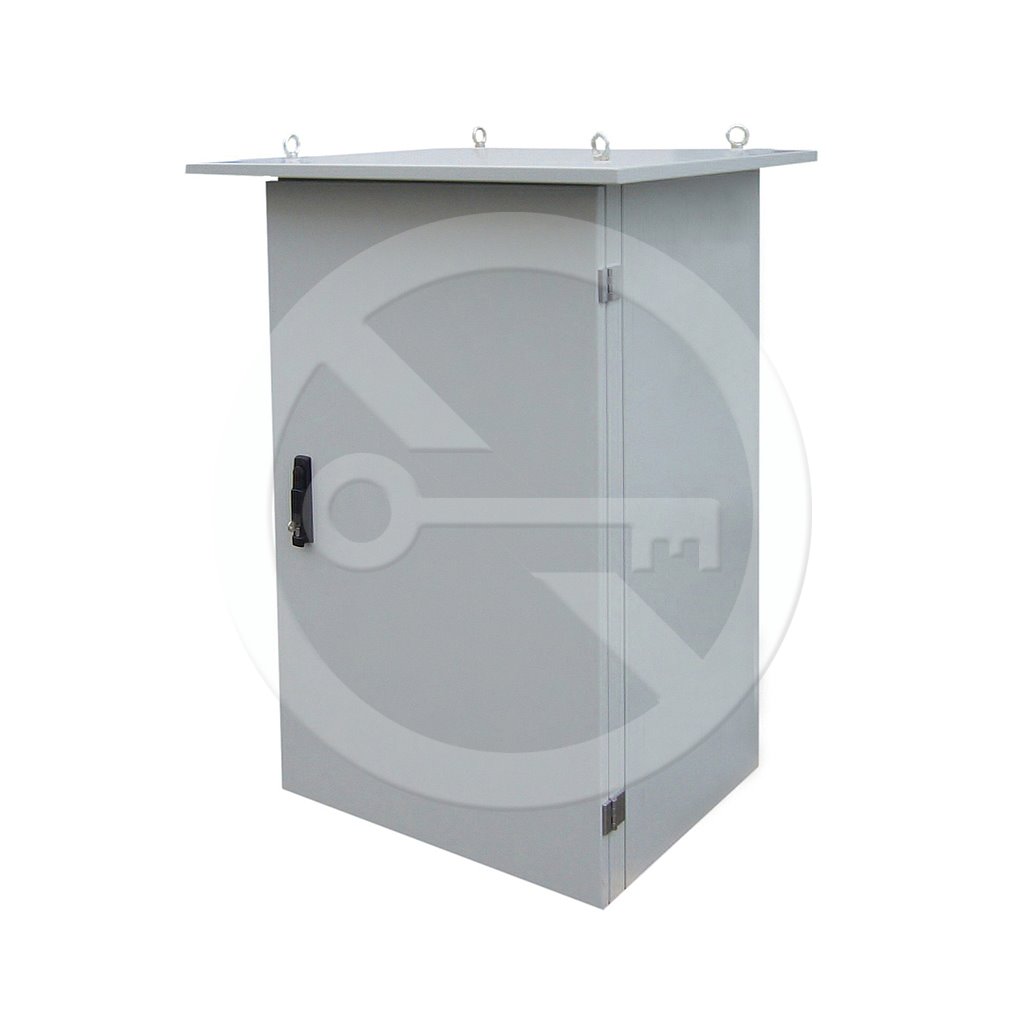

The Solarix LC-07 15U thermally insulated data cabinet is designed for the installation of structured cabling components, particularly in outdoor environments. The LC-07 cabinet frame consists of a welded structure with a solid top. Mounting holes are prepared in the rear section for suspension. The front side is equipped with a solid metal door featuring a swing handle, a cylinder lock, and a three-point locking system. The side panels can be opened from the inside and can be replaced with variants – either solid panels without cutouts or panels with openings for fan installation. The cabinet also includes a roof cover – a canopy that protects against splashing water and direct sunlight. For easier handling with a crane, the cabinet is fitted with four lifting eyes.

Cable entry is provided through cable glands located at the bottom of the cabinet. The standard equipment includes two pairs of sliding 19" vertical rails. The entire cabinet is thermally insulated.

The surface is finished with a powder coating in RAL 7035 light grey. The coating is intended for outdoor use with enhanced resistance to sunlight and external weather conditions.

This model is equipped with a ventilation unit in the left side panel! If the cabinet is to be permanently placed on a solid surface, it must be equipped with a pedestal.

Key Features

• welded thermally insulated frame
• front solid metal thermally insulated door with swing handle, cylinder lock, and three-point locking system
• doors open 180°, external hinges, option for left or right opening
• side panels that can be supplied with installed fans
• 2 pairs of sliding 19" vertical rails
• roof cover in the form of a canopy with lifting eyes for easier handling
• load capacity of 100 kg (with evenly distributed static load)
• protection rating: IP 55 – with solid side panel
• protection rating: IP 43 – with side panel fitted with fan
