Summit Development ANT 17/24 A30, antenna 30cm, 17/24Ghz band
We are sorry, this product is no longer in our offer.
Summit Development ANT 17/24 A30, antenna 30cm, 17/24Ghz band
×
0/0
| Manufacturer |
Summit Development |
|
|---|---|---|
| Code | 10131650 | |
| Part No. | ANT 17/24 A30 | |
Parameters
Technical parameters
Wireless features
Wireless frequency:
17 + 24 GHz
Antenna gain [dBi]:
33, 36
Physical characteristics
Antenna design:
Parabolic
Designed for mast diameter [mm]:
40 up to 120
Radom:
Yes
Operating temperature [°C]:
-20 up to 50
Weight [g]:
2500
Width [mm]:
350
Height [mm]:
350
Product description

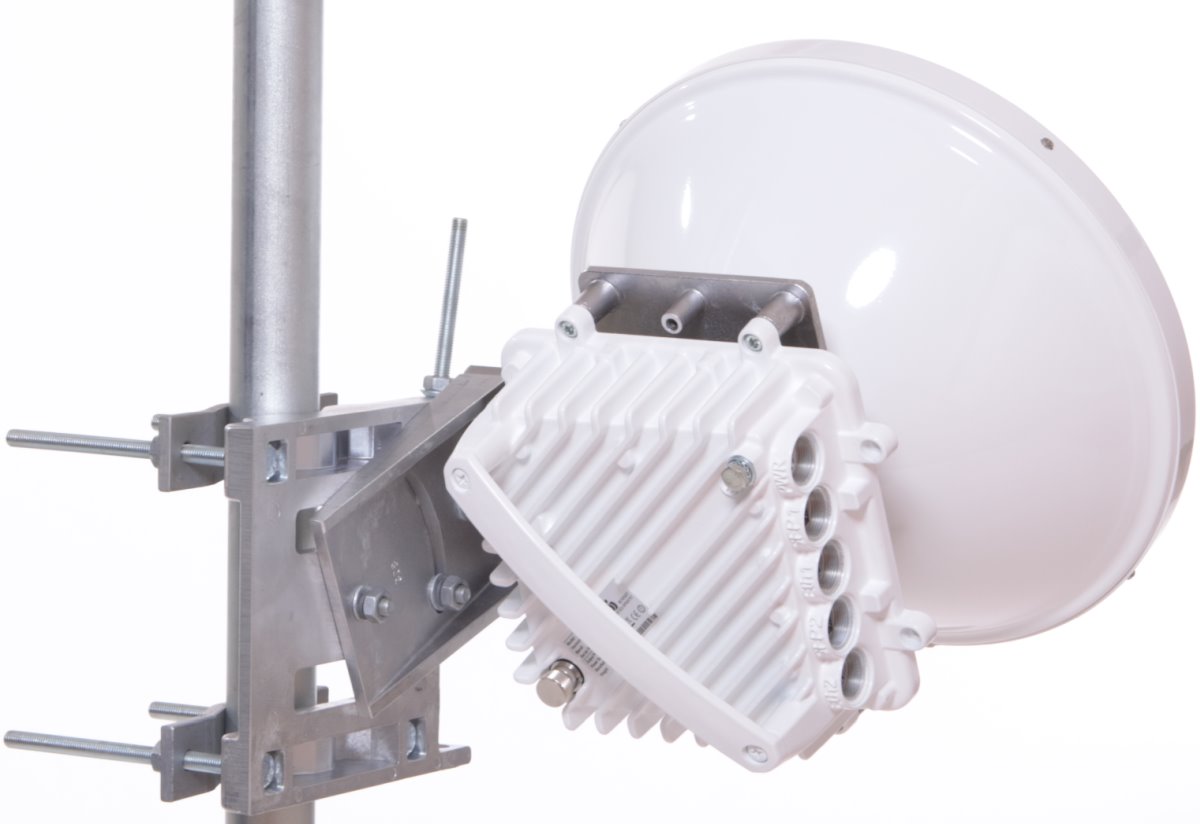

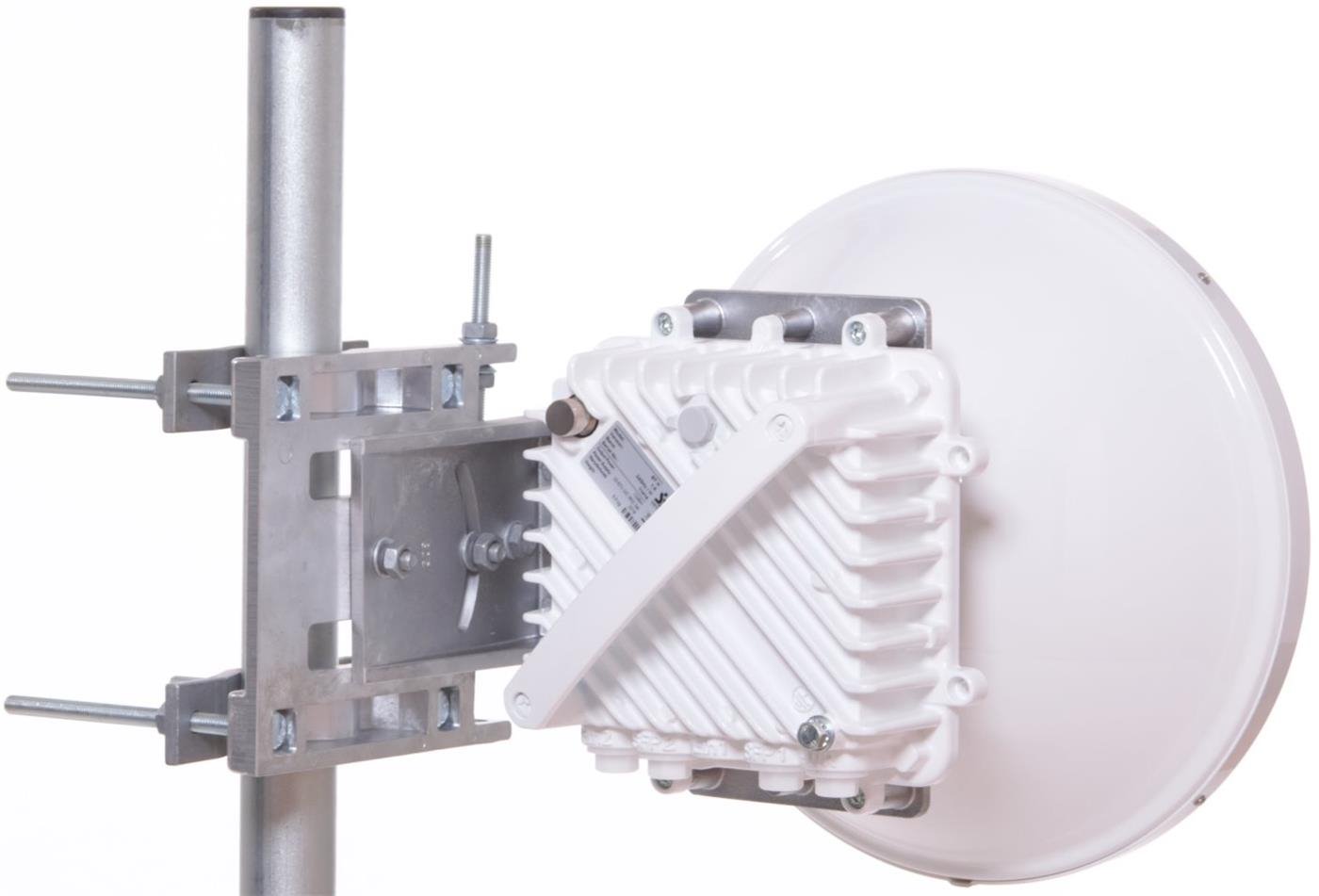

Summit Development ANT 17/24 A30 is a parabolic antenna with radom diameter of 35cm, adapted for bands 17 and 24GHz. The antenna is designed for BTH 1000 (BTH 17 / 24G) units. The antenna has a gain of 33dBi in the 17GHz band and in the 24GHz band up to 36dBi. The antenna comes with a bracket and all mounting material, ready to mount the transmit unit.
Package contains
