Summit Development BTD 10G, unit for 10GHz band

Product description

BTD 10G is a DUAL Full Outdoor and Full Duplex microwave link with transmission capacity up to 715 Mbps for the free 10,3 - 10,6 GHz band. The SUMMIT DEVELOPMENT dual radio technology uses two SW radios in one hardware (from the Ethernet port, both radios are viewed as one radio!). Compared to the classical 10 GHz PtP technology, BTD allows the transfer of double capacity and offers longer radio distance. In addition, one of these SW radios can be turned off at any time. The configuration settings of the radio allow much more variable use of the frequency band when compared to traditional radios.

Connectors and interfaces

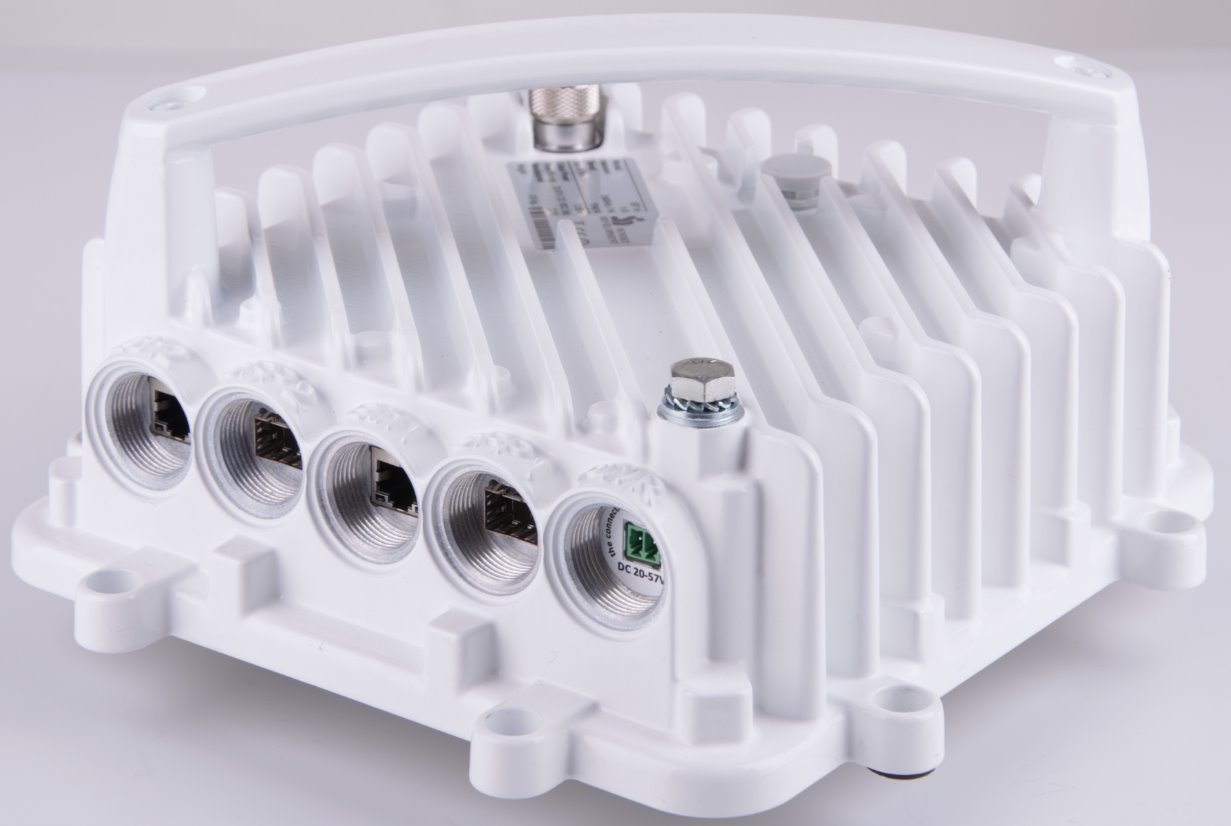

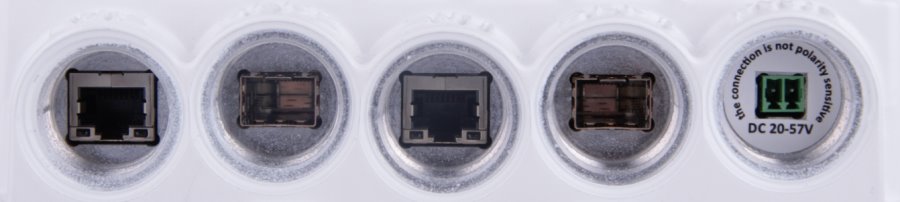

The unit has very rich offer of connectors and interfaces. It has two Gigabit Ethernets, both supporting PoE IN using 802.3at. It also offers 2 optical SFP ports and a terminal block for direct powering via a DC cable using a DC voltage in range 20 up to 57V. In addition, the unit allows uninterrupted power switching between all power inputs. In addition to the grounding screw, there is a voltmeter aiming connector on the handle side. The unit can be aiming by management or by listening to acoustic signaling.

Key Features

• Software Defined Radio SUMMIT DEVELOMPENT (own modem)
• Transmission capacity up to 715 Mbps Full Duplex
• Modulation 4 to 512 QAM with ACM in one radio version
• Modulation 4 to 256 QAM with ACM in two radios version
• In case of failure automatically switches to a backup link
• Channel size from 3,5 to 2 x 56 MHz
• FEC (Reed Solomon, Interleaving)
• 4 x Gigabit Ethernet port (2 x SFP, 2 x RJ45)
• Jumbo packet transfer of MTU size up to 11 000 bytes
• Security and Access management, digitally encrypted transmitter
• Advanced QoS Port-based and Bandwidth control Management
• Optimal solution for Triple Play services with IPTV support
• Support IEEE 802.1Q VLAN (also QinQ)
• Support packet-flow control acc. to IEEE 802.3x
• Power supply via Ethernet cable acc. to IEEE 802.3at
• Power supply via separate cable (DC input 20 to 57V)
• Automatic switching to backup power supply ( PoE1, PoE2, PWR)

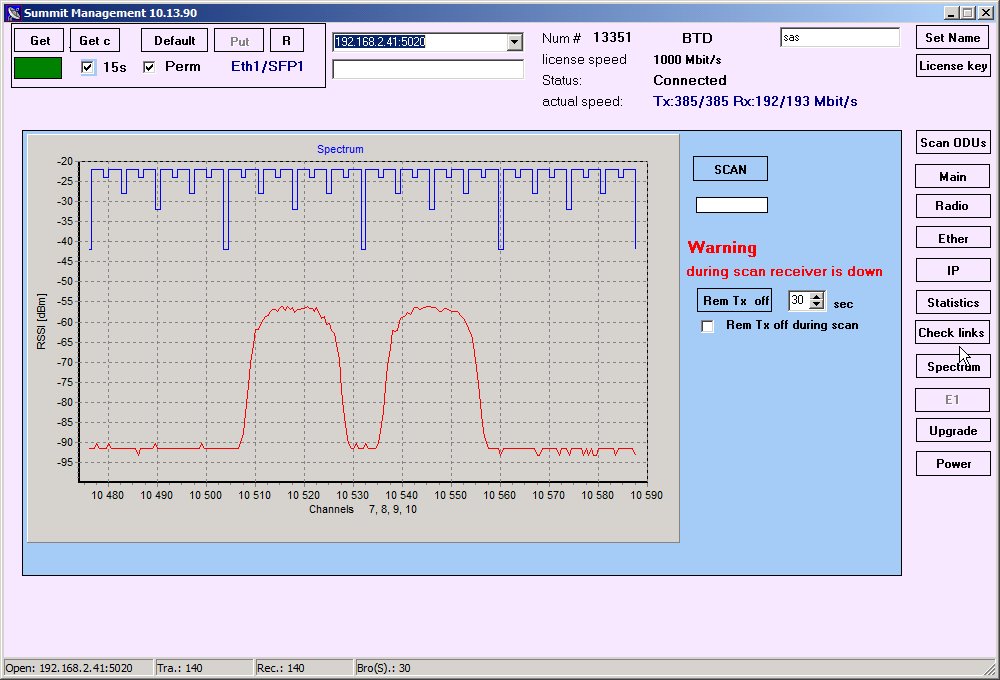

• Built-in spectral analyzer for searching for free channel
• Easy aligning with the beeper, built-in RSSI indicator or measuring the DC voltage
• Configuration of radio link in Windows, Linux, Android, iOS

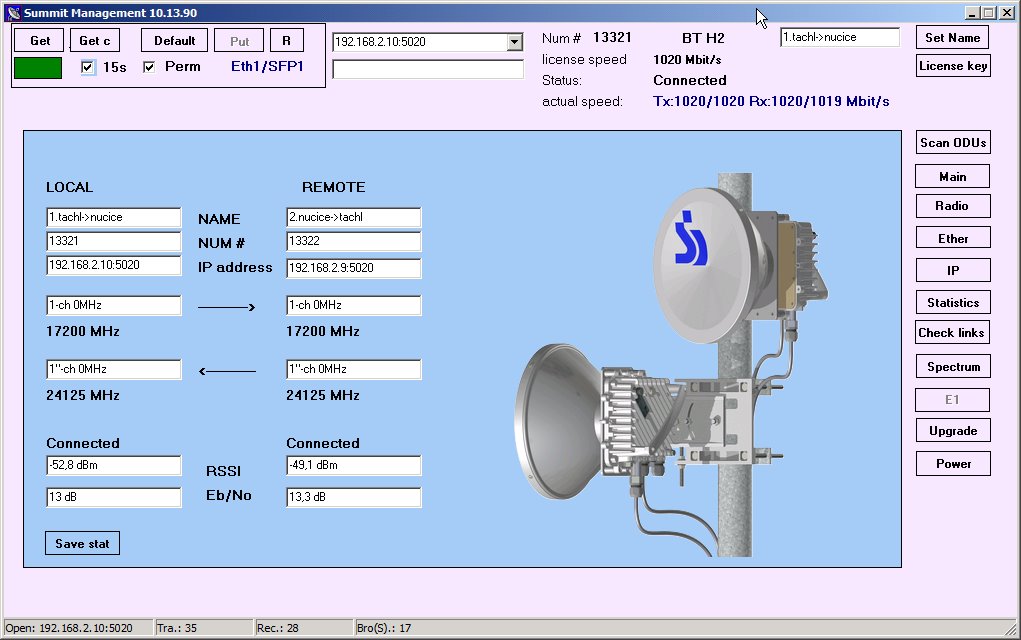

• Monitoring of radio parameters by means of IP protocol, with implemented SNMPv2
• Monitoring of device parameters in real time (input voltage, current, power …)
• Automatic detection of radio polarization

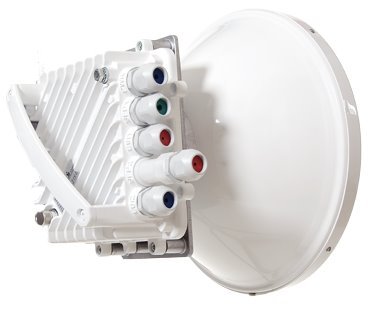

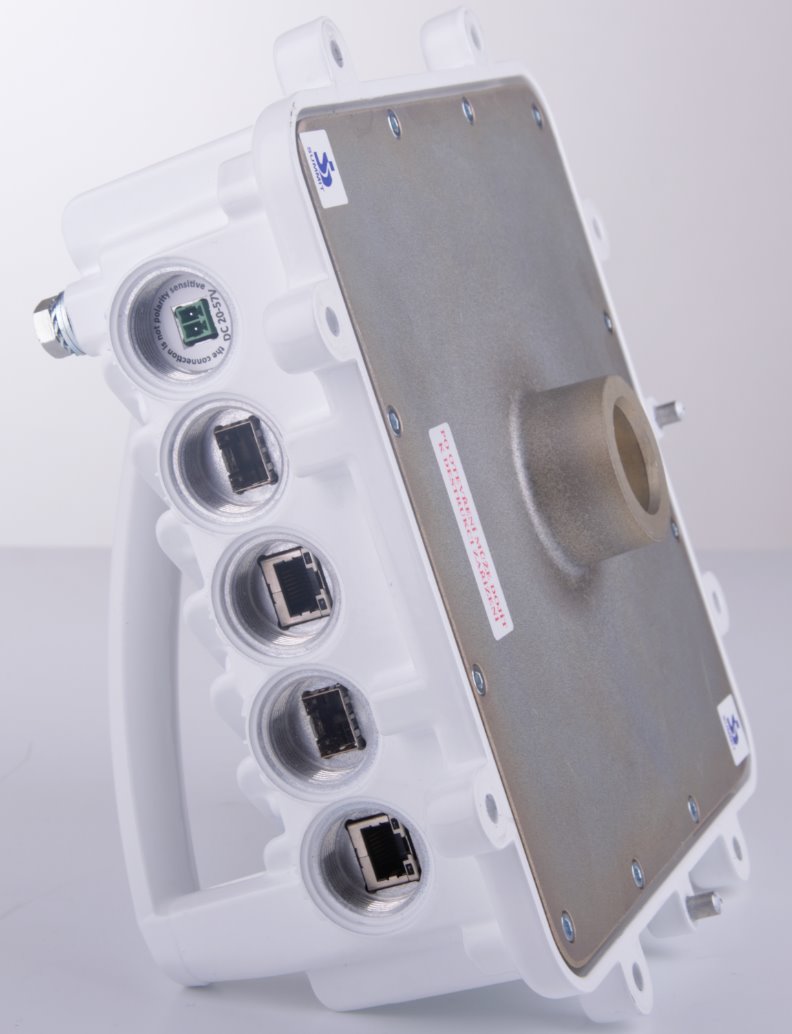

• Direct installation of parabolic antenna

For the complete link is necessary to order

• Two units
• Two antennas
• Two PoE adaptors

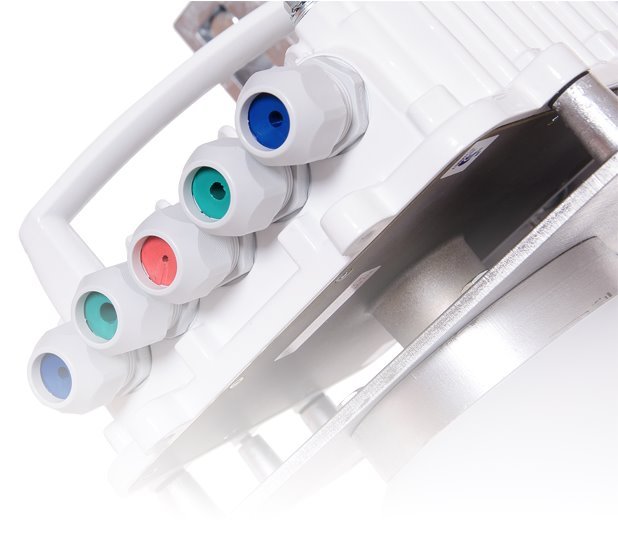

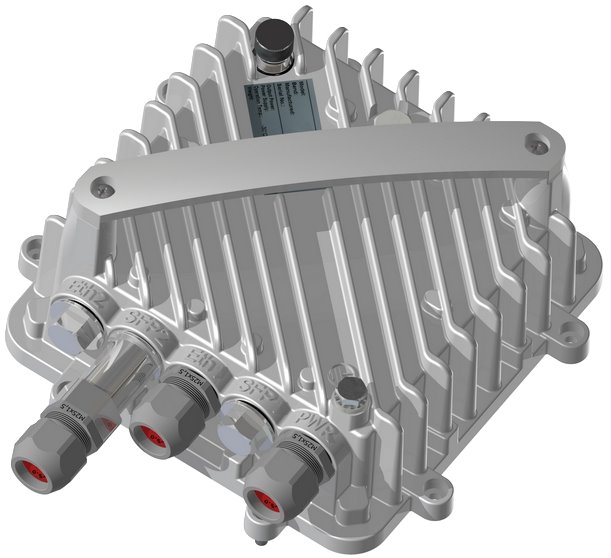

• Necessary cable gland

For the complete link is necessary to order

• Two unit: BTD 10G
• Two antenna: you can choose from 30, 60, 90 and 120cm antenna - we recomended link calculator
• Two power sources: PoE adapter (802.3at) or DC power source with terminal and output power 20 - 57V DC
• Cable glands if required

About company Summit Development

SUMMIT DEVELOPMENT, spol. s r.o. develops and manufactures quality, affordable and highly reliable digital radio links enabling wireless data transmission, voice and video.

Package contains

• One unit without antenna
• Cable gland
