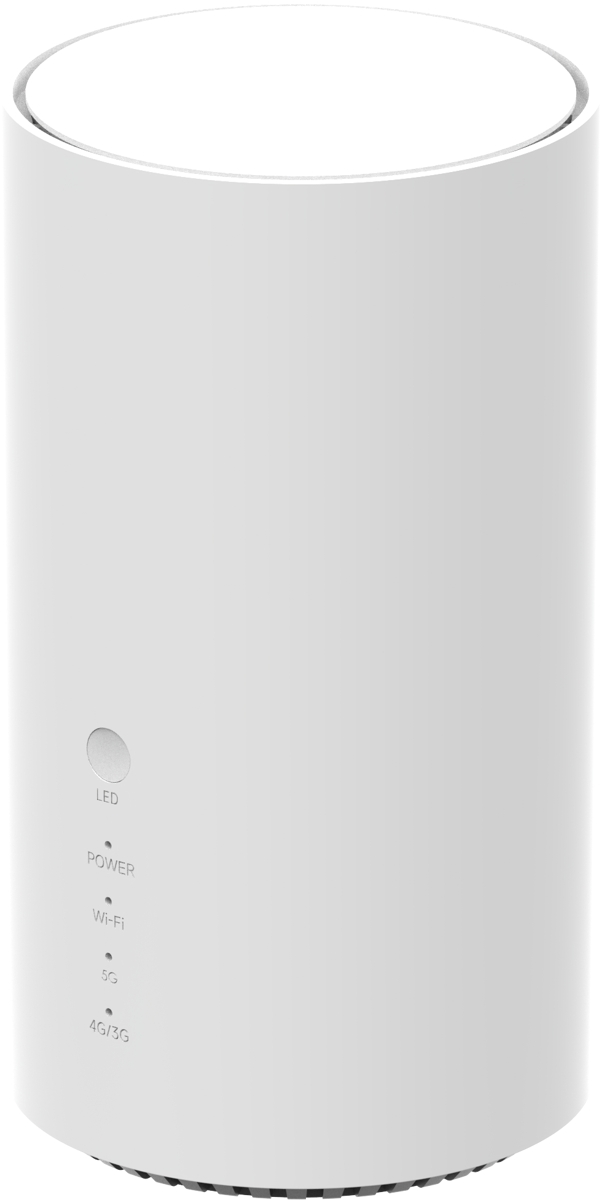

Teltonika CAP700 Altos, 5G Wi-Fi 7 router
Your price excl. VAT
331.53 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 331.60 EUR |
| Your price incl. VAT (21%) | 401.24 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Teltonika |
|
|---|---|---|
| Code | 17720241 | |
| Part No. | CAP700000000 | |
| Warranty | 24 months | |
GM-1230
6.35 EUR excl. VAT
7.78 EUR incl. VAT
stiqtyfree:197
_17:
avail:2
infocode: stock
queu:
shipmin:
In Stock
PCU5E-1YW-MS
0.63 EUR excl. VAT
0.76 EUR incl. VAT
stiqtyfree:769
_17:
avail:2
infocode: stock
queu:
shipmin:
In Stock
PCU5E-5-MSC
3.79 EUR excl. VAT
4.59 EUR incl. VAT
stiqtyfree:75
_17:
avail:2
infocode: stock
queu:
shipmin:
In Stock
Parameters
Download
GPSR
Technical parameters
Wireless features
Wireless frequency:
2.4 + 5 GHz (dual band)
WiFi standards:
802.11n, 802.11a, 802.11ac, 802.11b/g, 802.11ax, 802.11be
Transmission speed - 5GHz [Mb/s]:
5760
Transmission speed - 2.4GHz [Mb/s]:
688
Tx power 2.4GHz [dBm]:
19
Tx power 5GHz [dBm]:
27
Security:
WPA, WPA2, WPA3, OWE
2.4GHz MIMO:
2 x 2
5GHz MIMO:
2 x 2
Type of antenna:
Built-in
Internal antennas:
8
Antenna gain [dBi]:
2
Integrated 4G/LTE radio part:
Yes
4G/LTE bands support:
(1) 2100 MHz, (3) 1800 MHz, (7) 2600 MHz, (8) 900 MHz, (20) 800 MHz, (38) 2600 MHz, (40) 2300 MHz, (5) 850 MHz, (41) 2500 MHz, (42) 3500 MHz, (43) 3700 MHz, (28) 700 MHz, (71) 600 MHz, (32) 1500 MHz
5G bands support:
(n1) 2100 MHz, (n3) 1800 MHz, (n5) 850 MHz, (n7) 2600 MHz, (n8) 900 MHz, (n20) 800 MHz, (n28) 700 MHz, (n38) 2600 MHz, (n40) 2300 MHz, (n41) 2500 MHz, (n75) 1500 MHz, (n76) 1500 MHz, (n77) 3700 MHz, (n78) 3500 MHz, (n79) 4700 MHz, (n71) 600 MHz

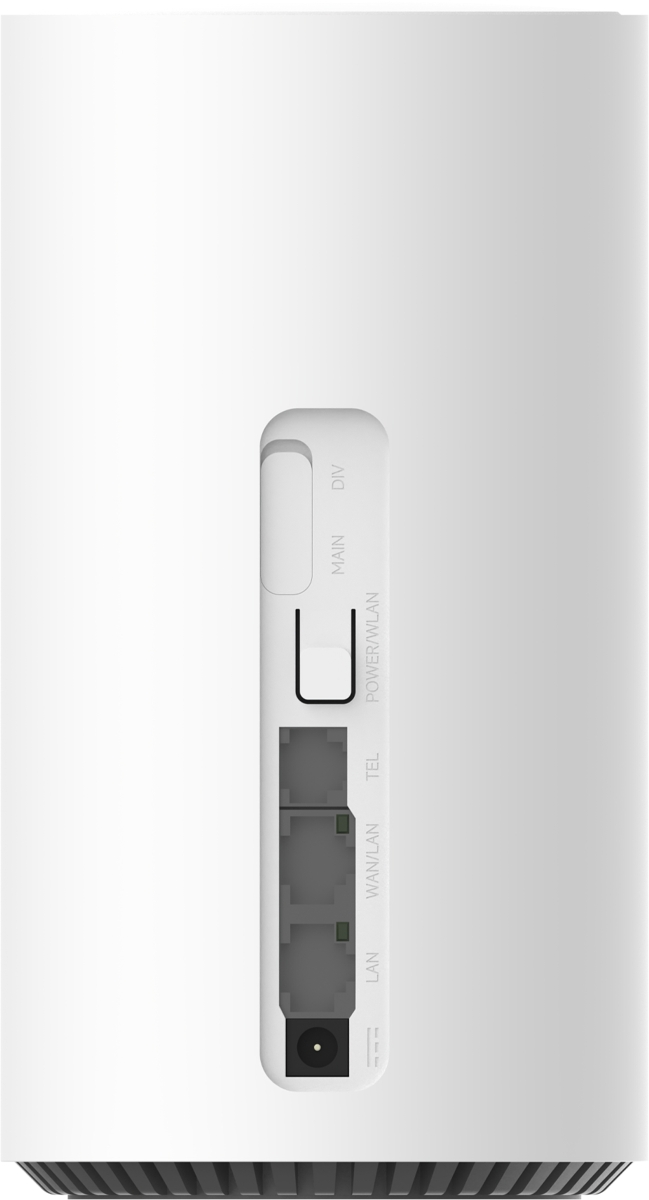

Connectors and Interfaces
LAN speed:
(1) 100/1000/2500Mbps LAN/WAN + (1) 10/100/1000Mbps
Gigabit LAN:
Yes

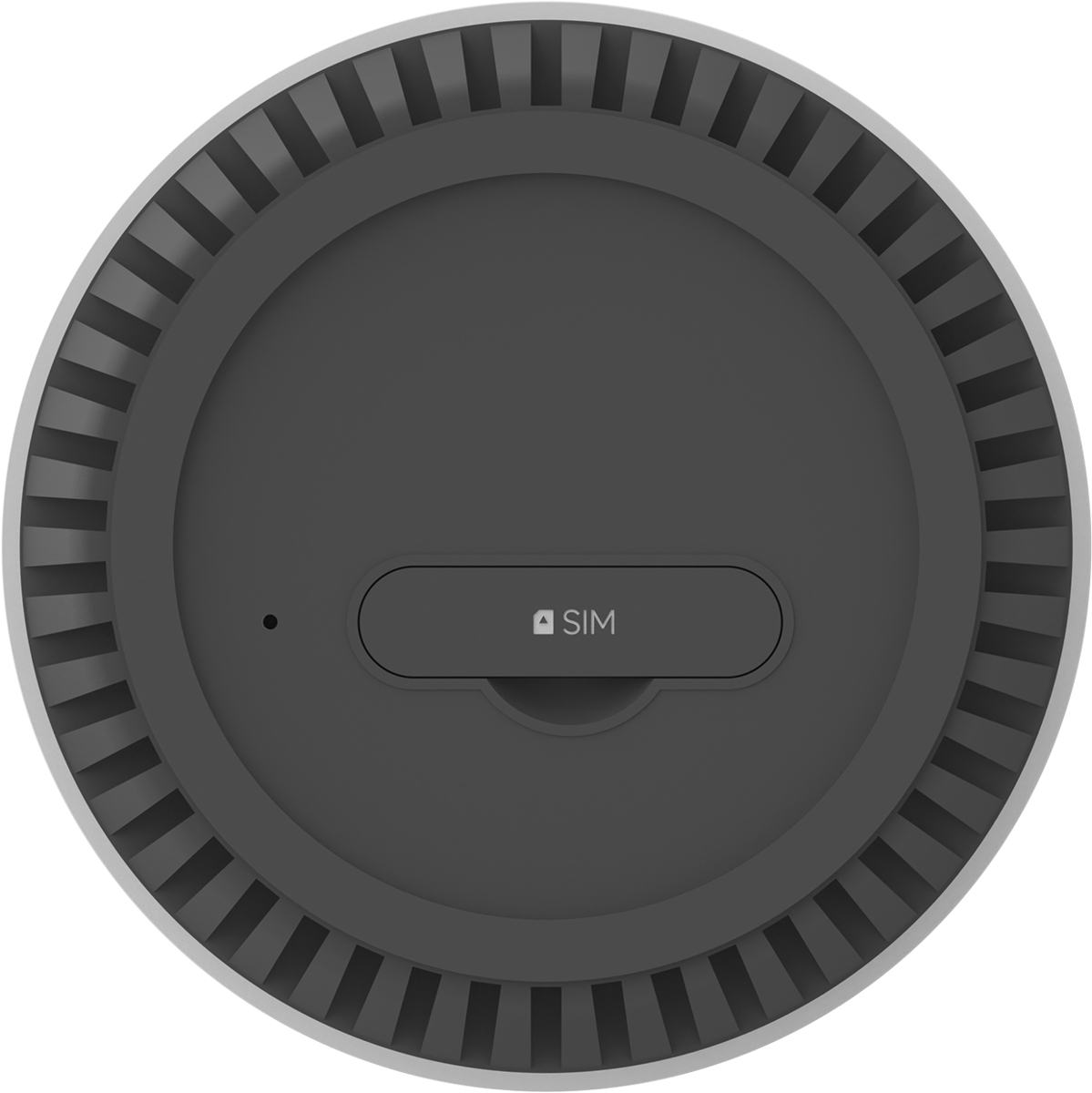

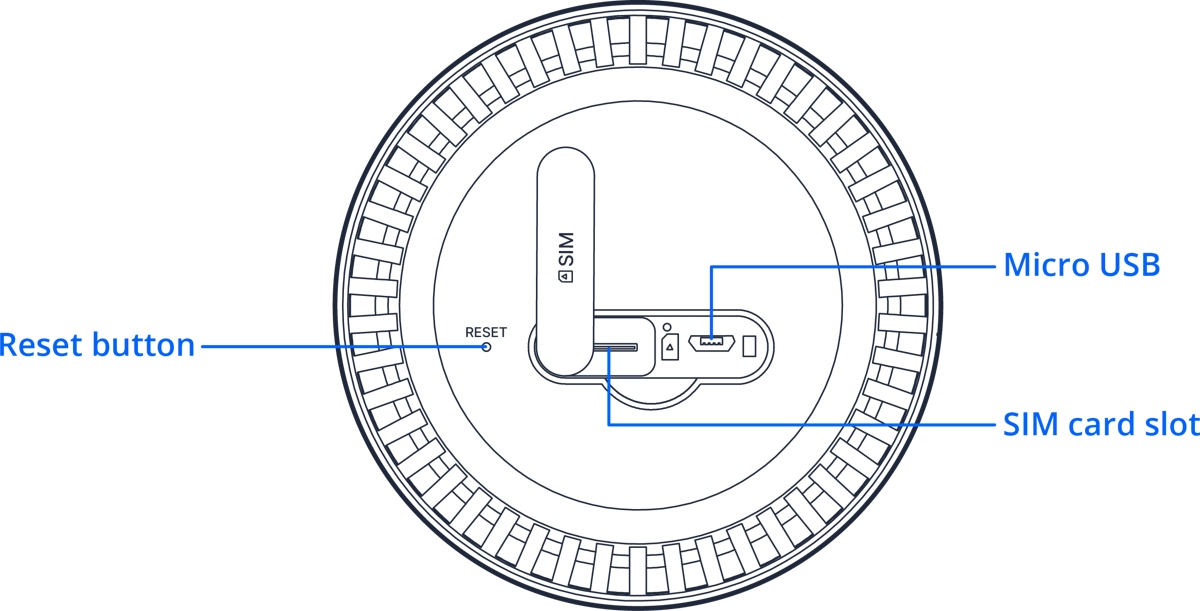

SIM slot:
Yes
SIM slots quantity:
1
USB:
Yes
Power
Power type:
DC connector
Max. power consumption [W]:
24
Power via connector/terminal:
12V / 2A
Physical characteristics
Design:
Desktop
Purpose:
Indoor
Buttons:
Reset, power
Operating temperature [°C]:
0 up to 45
Weight [g]:
720
Width [mm]:
100
Height [mm]:
185
Depth [mm]:
100
Hardware
Internal storage [MB]:
8 GB
RAM [MB]:
1024
General
Technology and conveniences:
Cloud Management
Software
Operating mode:
AP Router
Operating system:
RutOS (OpenWrt based Linux OS)
IPv6 support:
Yes
Default IP address:
192.168.1.1
Default login and password:
admin / (preset password, see label/engraving)
Product description

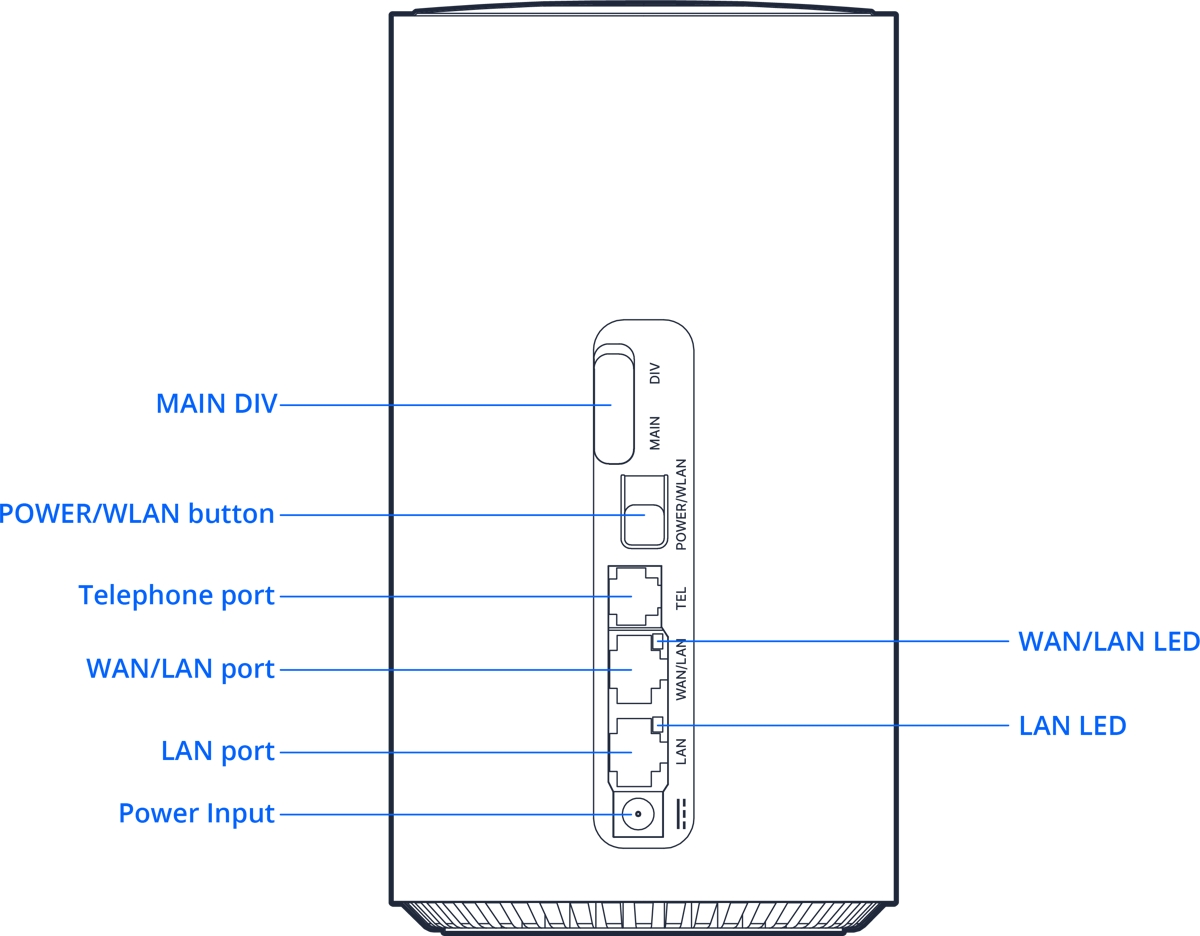

The Teltonika CAP700 Altos is an elegant 5G Wi-Fi 7 router with (1) 2.5G LAN/WAN port, (1) 1Gbit LAN port, (1) nano SIM slot and dual-band Wi-Fi 7 operating simultaneously in the 2.4GHz and 5GHz bands, delivering throughput of up to 6.45Gbps. The router is equipped with a modem supporting 5G, 4G and 3G, with data rates of up to 4000Mbps downlink and 900Mbps uplink, making it perfect for Fixed Wireless Access (FWA) deployments.
Key features
Download
Datasheet Flyer User ManualGPSR
