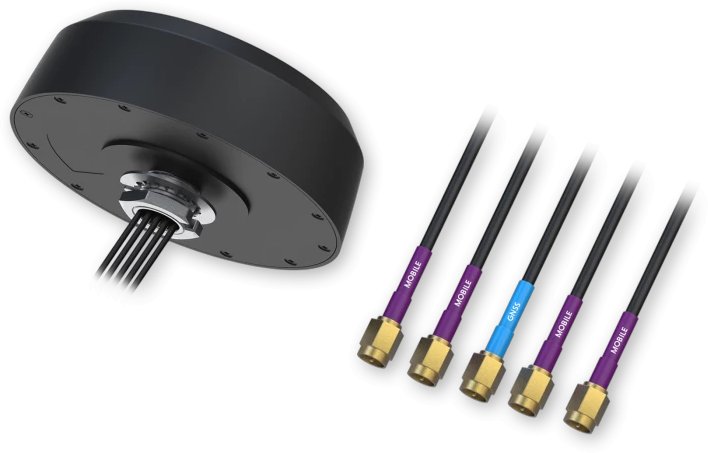

Teltonika PR1KC647 5G Combo MIMO/GNSS Mobile Roof SMA Antenna

Product description

5G Mobile MIMO Antenna

• Frequency range: 600 ~ 960, 1400 ~ 6000 MHz
• Polarization: Linear
• Radiation pattern type: Omni-directional
• Gain: Max 4.9 dBi
• V.S.W.R: < 3.2
• Impedance: 50 ?

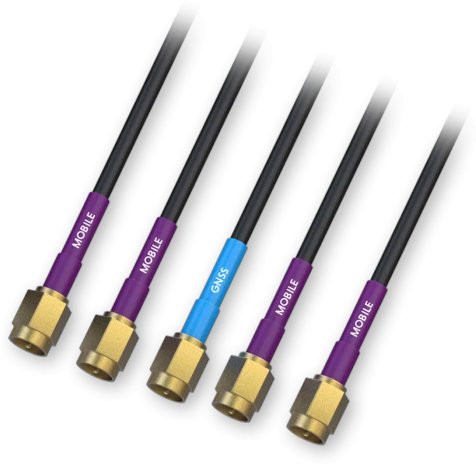

• Connector type and count: 4x SMA Male

GNSS Antenna

• Frequency range: 1164 ~ 1189, 1559 ~ 1606 MHz
• Polarisation: RHCP
• Radiation pattern type: Directional
• Gain: 17 ± 2 dB
• V.S.W.R: < 2
• Impedance: 50 Ohm
• Supply voltage: 3 - 5 VDC
• Current consumption: 16 ± 3 mA
• Connector type and count: 1x SMA Male

Mechanical/Environmental

• Cable: 4x ALS302, 1x RG174, 3000 mm
• Operating temperature: -40 °C to +85 °C

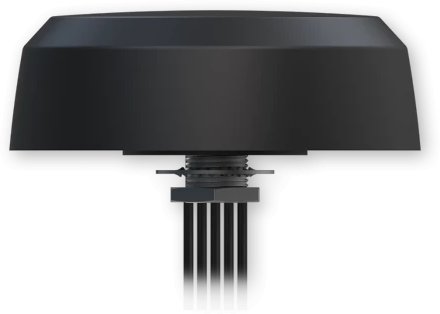

• Mounting method: Screw (M27 nut)
• IP rating: IP67 (after installation) / IP69K (after installation)
• Weight: 780 g
• RoHS compliant: Yes
