Teltonika RUT956 Industrial Cellular Router
We are sorry, this product is no longer in our offer.
PR2FK20M
6.81 EUR excl. VAT
8.24 EUR incl. VAT
Expected 8.8.2025
RMS
1.93 EUR excl. VAT
2.34 EUR incl. VAT
In Stock
PR1KCO28
37.06 EUR excl. VAT
45.08 EUR incl. VAT
In Stock
PR1KCL25
10.74 EUR excl. VAT
13.24 EUR incl. VAT
In Stock
PR1KCS28
21.29 EUR excl. VAT
26.00 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.62 EUR excl. VAT
0.75 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.73 EUR excl. VAT
4.51 EUR incl. VAT
In Stock
Parameters
Download
Video
GPSR
Technical parameters
Wireless features
Wireless frequency:
2.4 GHz, LTE
WiFi standards:
802.11n, 802.11b/g
Transmission speed - 2.4GHz [Mb/s]:
300
2.4GHz MIMO:
2 x 2
Connectors and Interfaces
RF connectors:
(2) RSMA female, (3) SMA female
LAN speed:
(3) 10/100Mbps + (1) 10/100Mbps LAN/WAN
Serial port:
RS-232, RS-485
SIM slot:
Yes
SIM slots quantity:
2
USB:
Yes
GPS modul:
Yes
Power
Power type:
DC connector
Max. power consumption [W]:
7
Power via connector/terminal:
9 .. 30V DC
Physical characteristics
Buttons:
Reset
Operating temperature [°C]:
-40 up to 75
Weight [g]:
287
Width [mm]:
110
Height [mm]:
50
Depth [mm]:
100
Hardware
CPU:
MT7628
CPU frequency [MHz]:
580
Internal storage [MB]:
16
RAM [MB]:
128
Software
Operating system:
RutOS (OpenWrt based Linux OS)
Default IP address:
192.168.1.1
Default login and password:
admin / admin01
Video
Product description

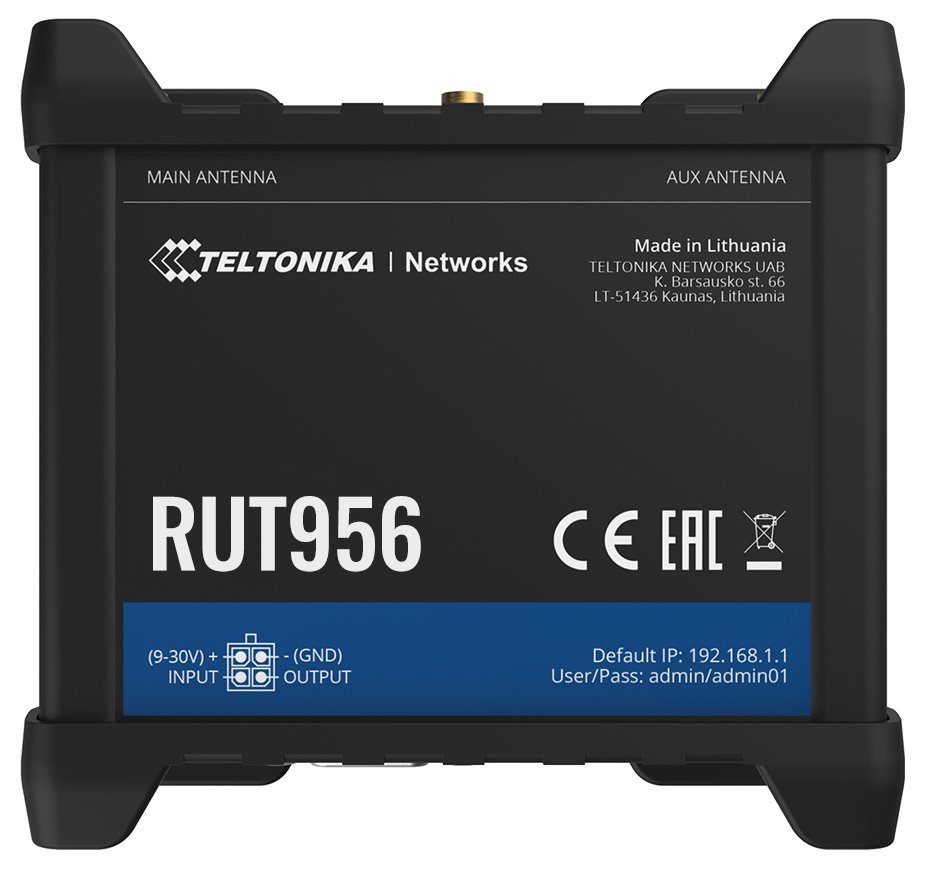

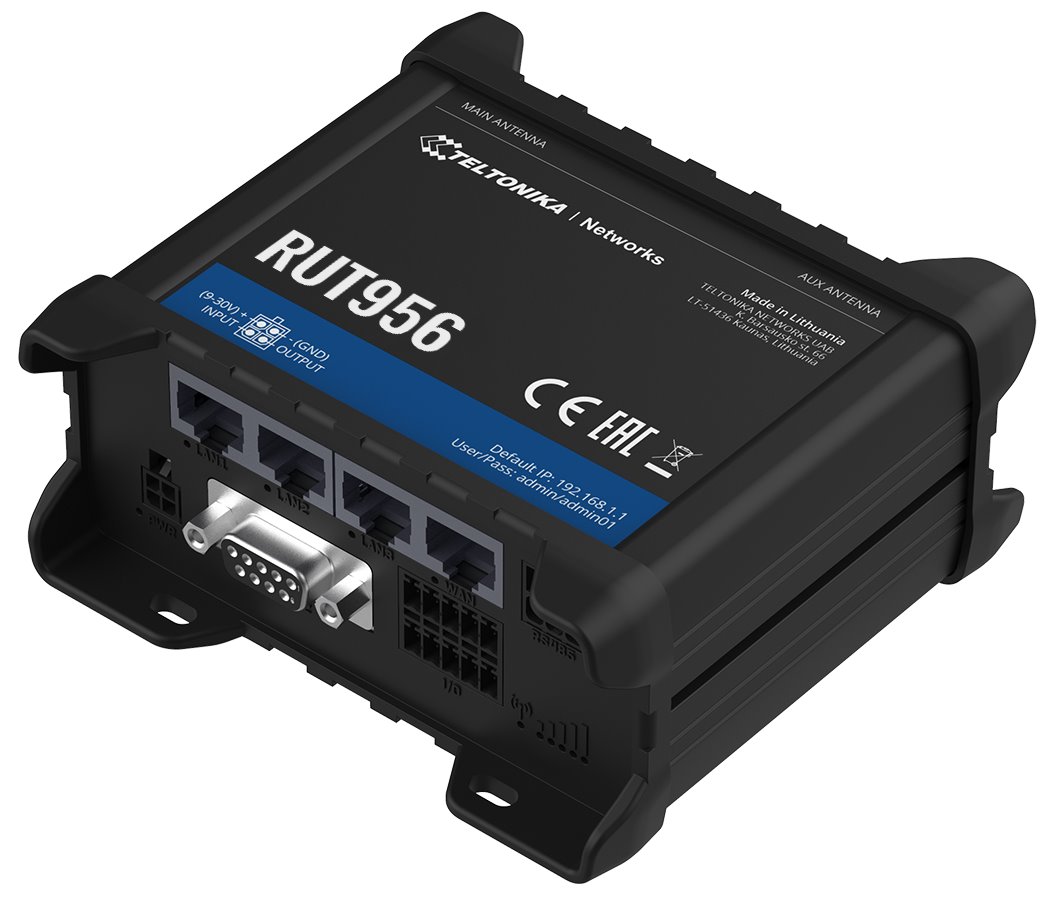

RUT956 is a robust and durable professional 4G / LTE Dual SIM router with industrial level Wi-Fi and Ethernet support. Rapid deployment, easy management and flexibility for applications across the most demanding market sectors.

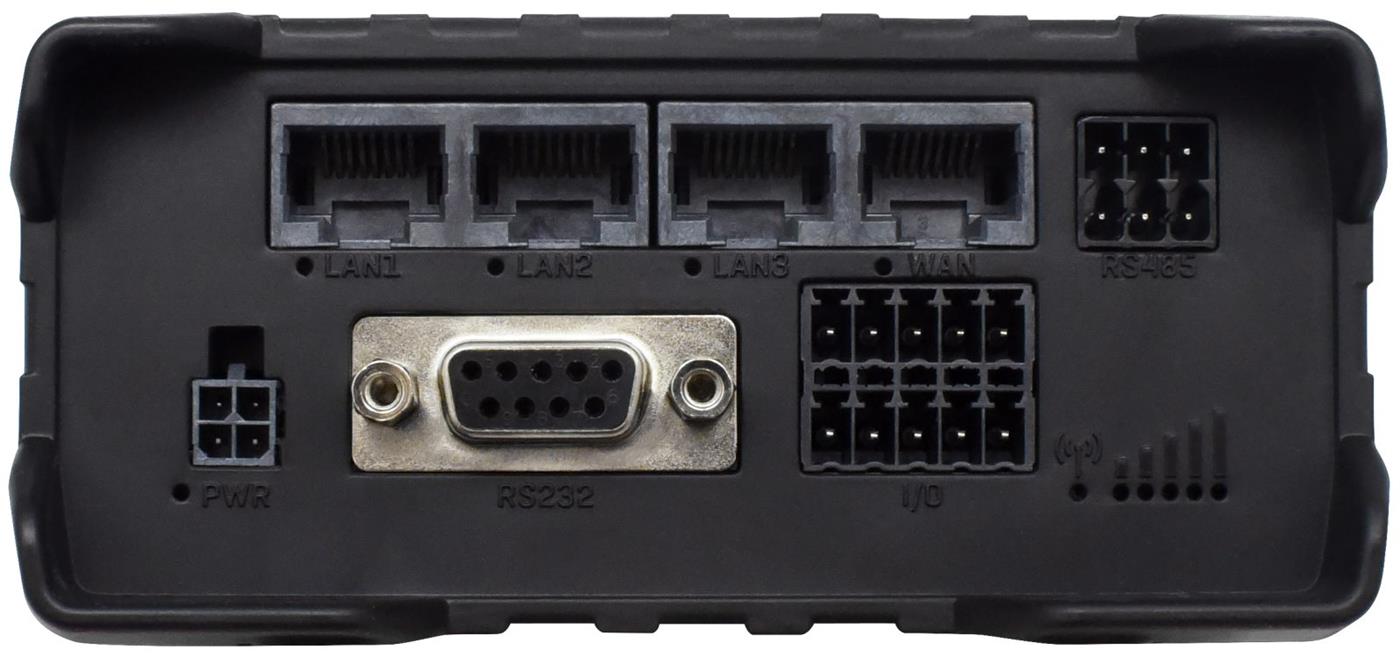

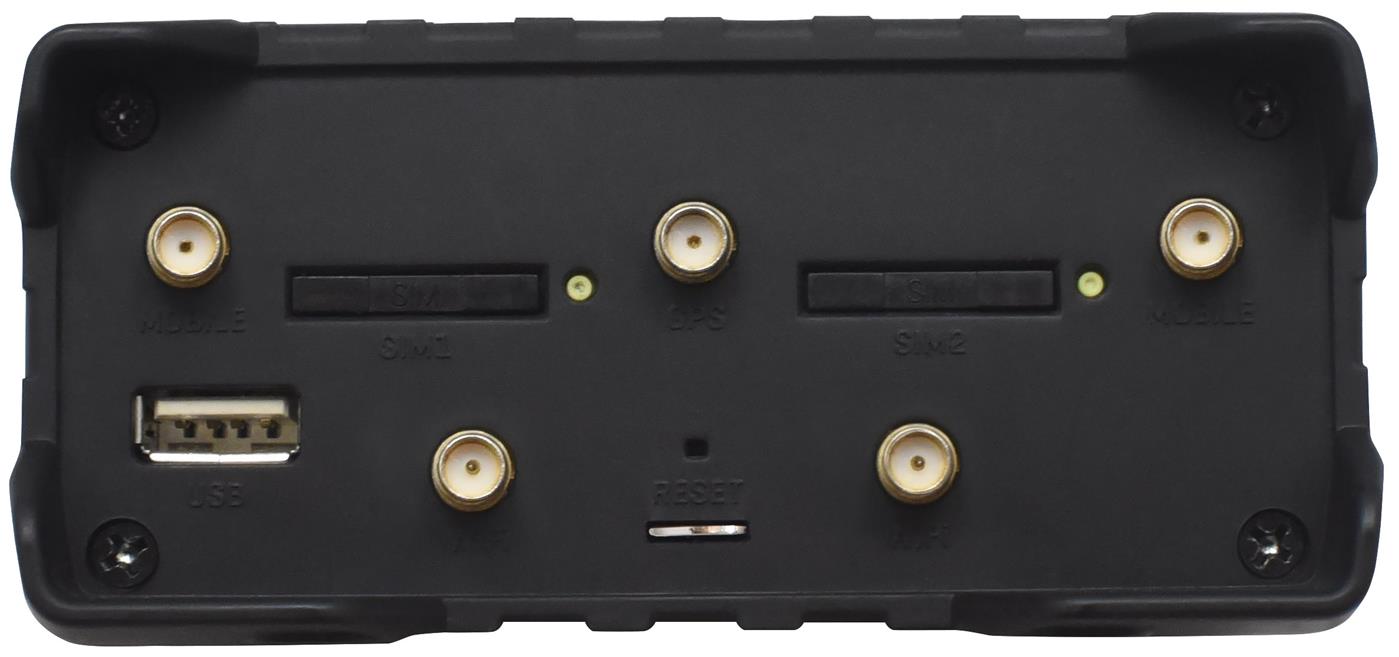

The router is equipped with four ethernet ports, two SIM slots, RS232/RS485, digital I/O and LED indication of signal strength. There is also support for the GNSS system. SMA connectors for connecting external antennas allow for better received signal strength.
The basis of the device is the operating system RutOS, a universal operating system for Teltonika routers, which was created for the most demanding network applications. Device management is possible via the cloud service RMS - Remote management system.

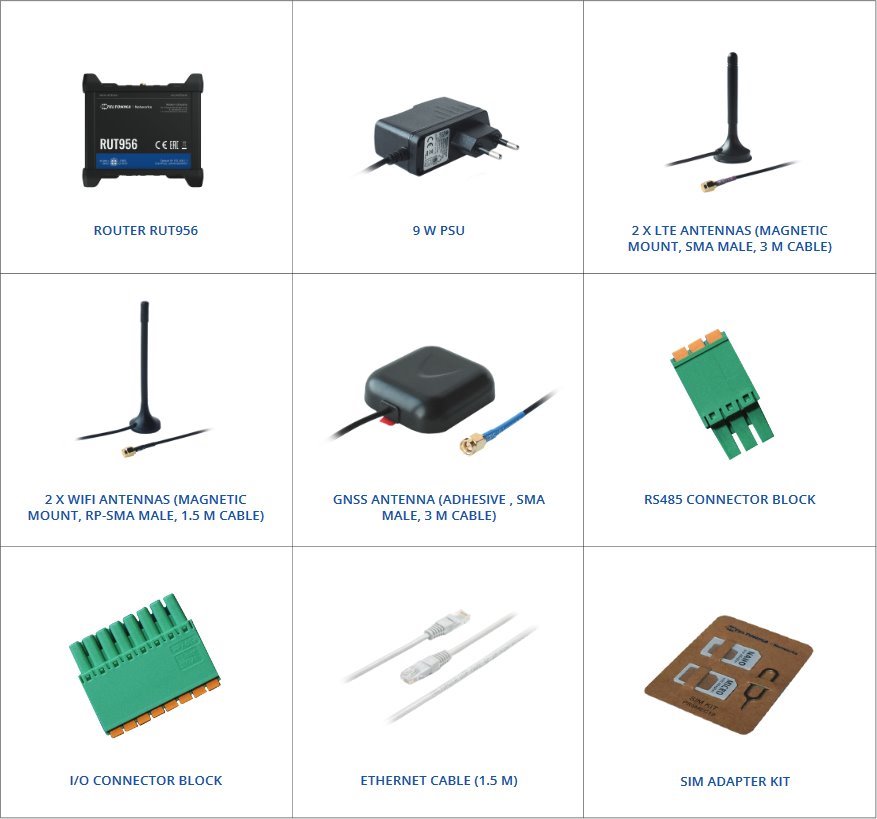

Package contents
Download
Datasheet Quick GuideGPSR
