Teltonika TRB141 4G/LTE Ethernet IoT Gateway
We are sorry, this product is no longer in our offer.
PR2FK20M
6.81 EUR excl. VAT
8.24 EUR incl. VAT
In Stock
RMS
1.93 EUR excl. VAT
2.34 EUR incl. VAT
In Stock
Parameters
Download
Video
GPSR
Technical parameters
Wireless features
Integrated 4G/LTE radio part:
Yes
Connectors and Interfaces
RF connectors:
(1) SMA female
SIM slot:
Yes
SIM slots quantity:
1
USB:
Yes
Power
Power type:
DC terminal
Max. power consumption [W]:
3
Power via connector/terminal:
9 .. 30V DC
Physical characteristics
Buttons:
Reset
Operating temperature [°C]:
-40 up to 75
Weight [g]:
136
Width [mm]:
60
Height [mm]:
18
Depth [mm]:
70
Hardware
CPU:
ARM Cortex A7
CPU frequency [MHz]:
1200
Internal storage [MB]:
512
RAM [MB]:
128
Software
Operating system:
RutOS (OpenWrt based Linux OS)
Default IP address:
192.168.2.1
Video
Product description

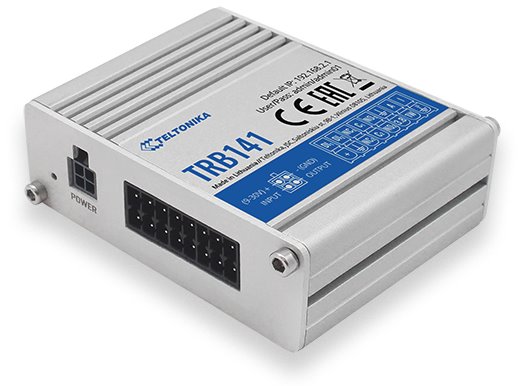

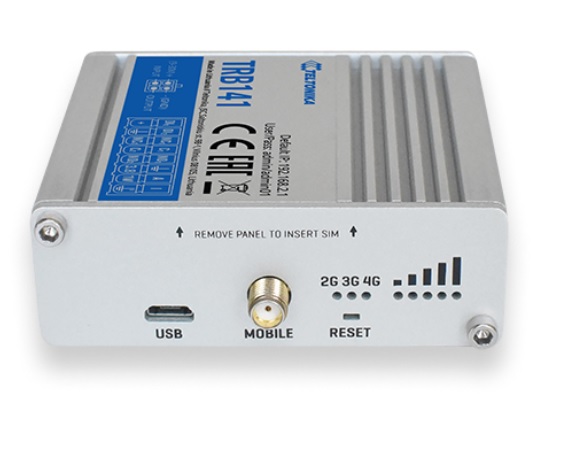

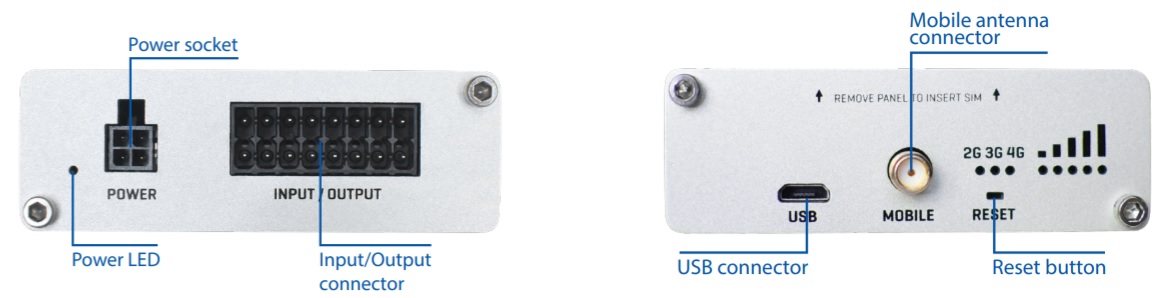

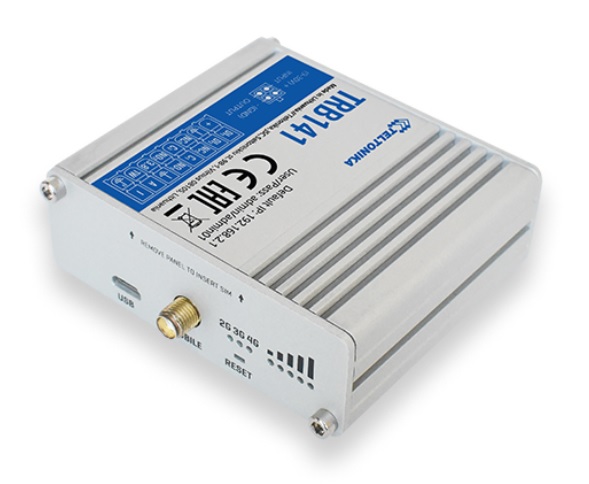

Industrial 4G/LTE Cat1 gateway TRB141 is equipped with 16 pin I/O interface, microUSB port and mini SIM card slot.
The system runs on an ARM Cortex-A7 1.2 GHz CPU.
The gateway is designed for use in industrial installations and therefore has a wide range of SW functions such as control by SMS commands, OpenVPN, IPsec, RMS and FOTA. A firewall is a matter of course.
Package contents
Download
Datasheet Quick GuideGPSR
