Teltonika TSW200 Industrial Unmanaged PoE Switch

Product description

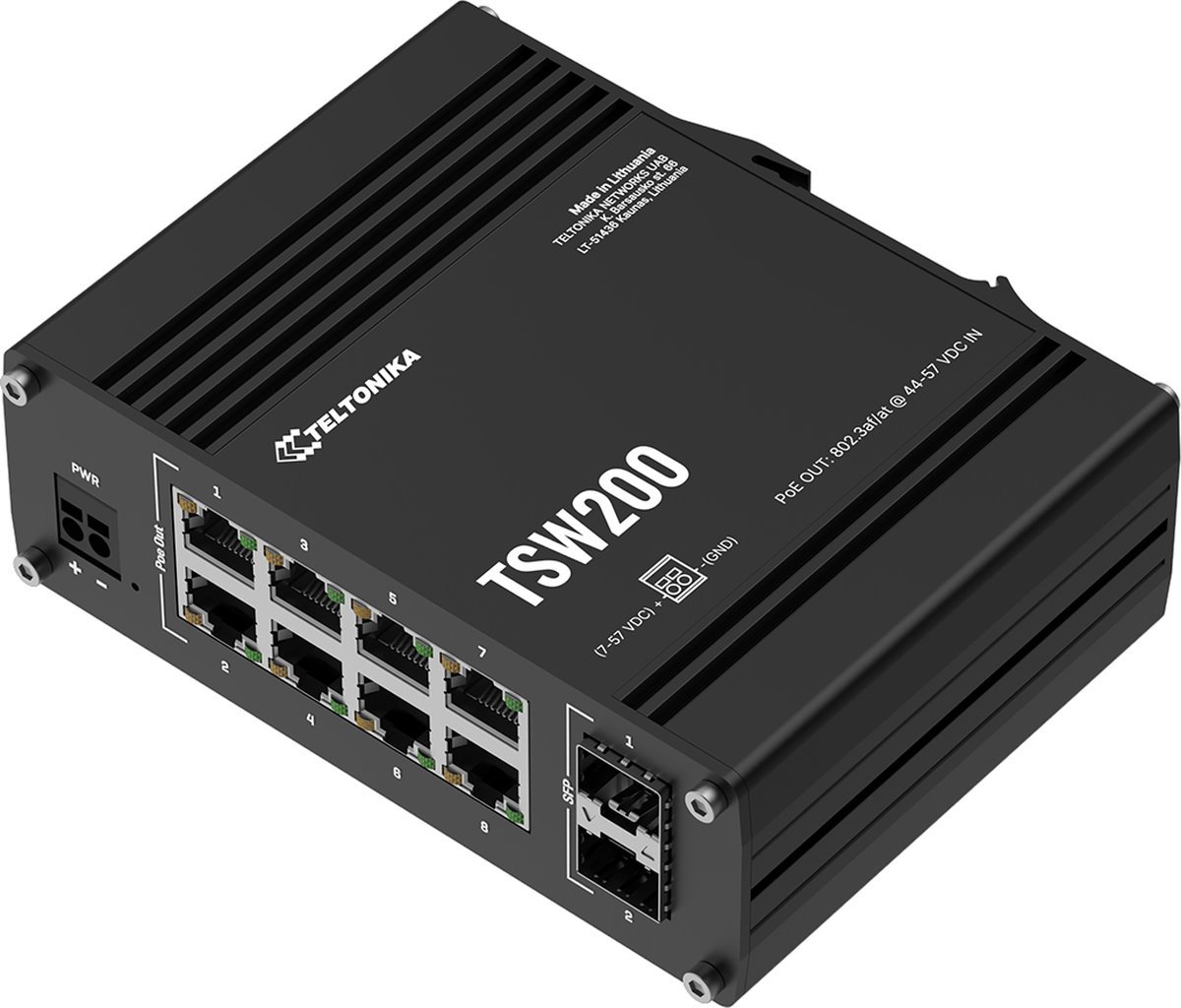

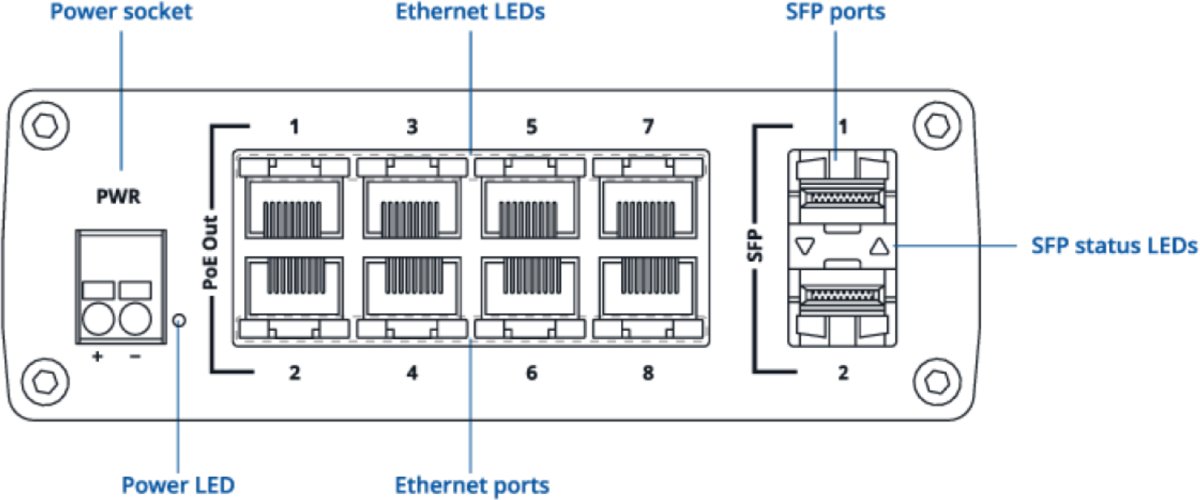

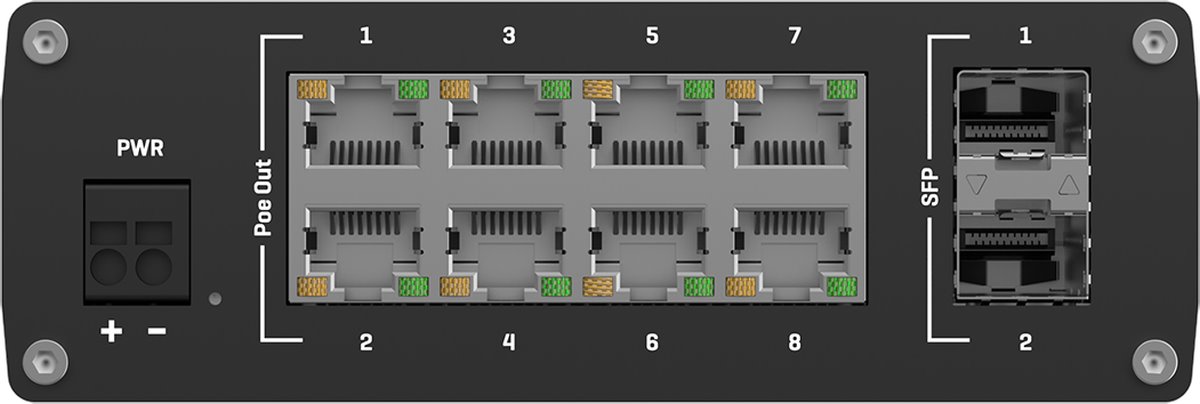

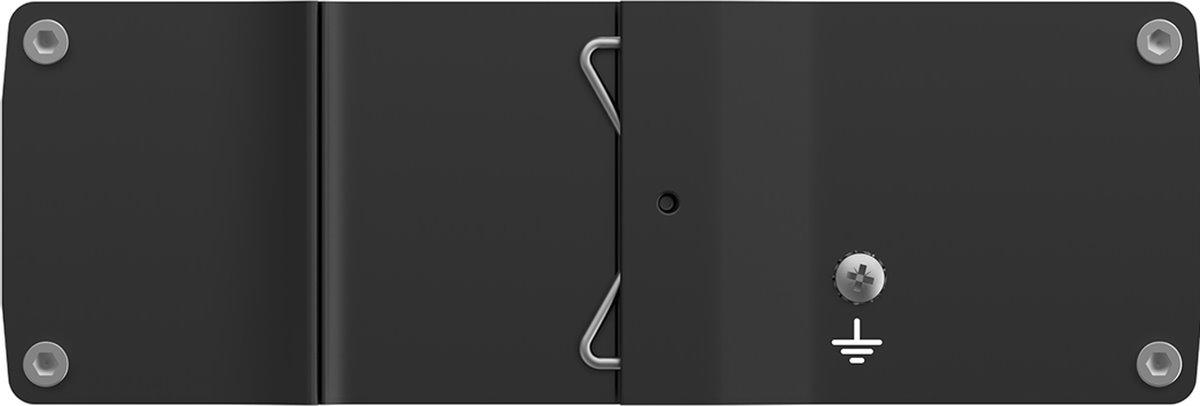

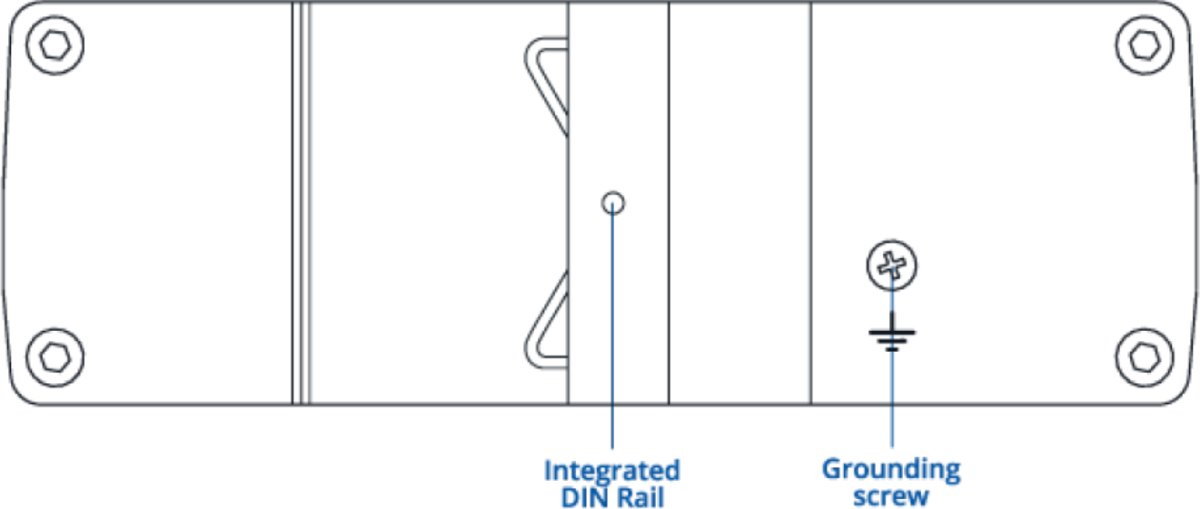

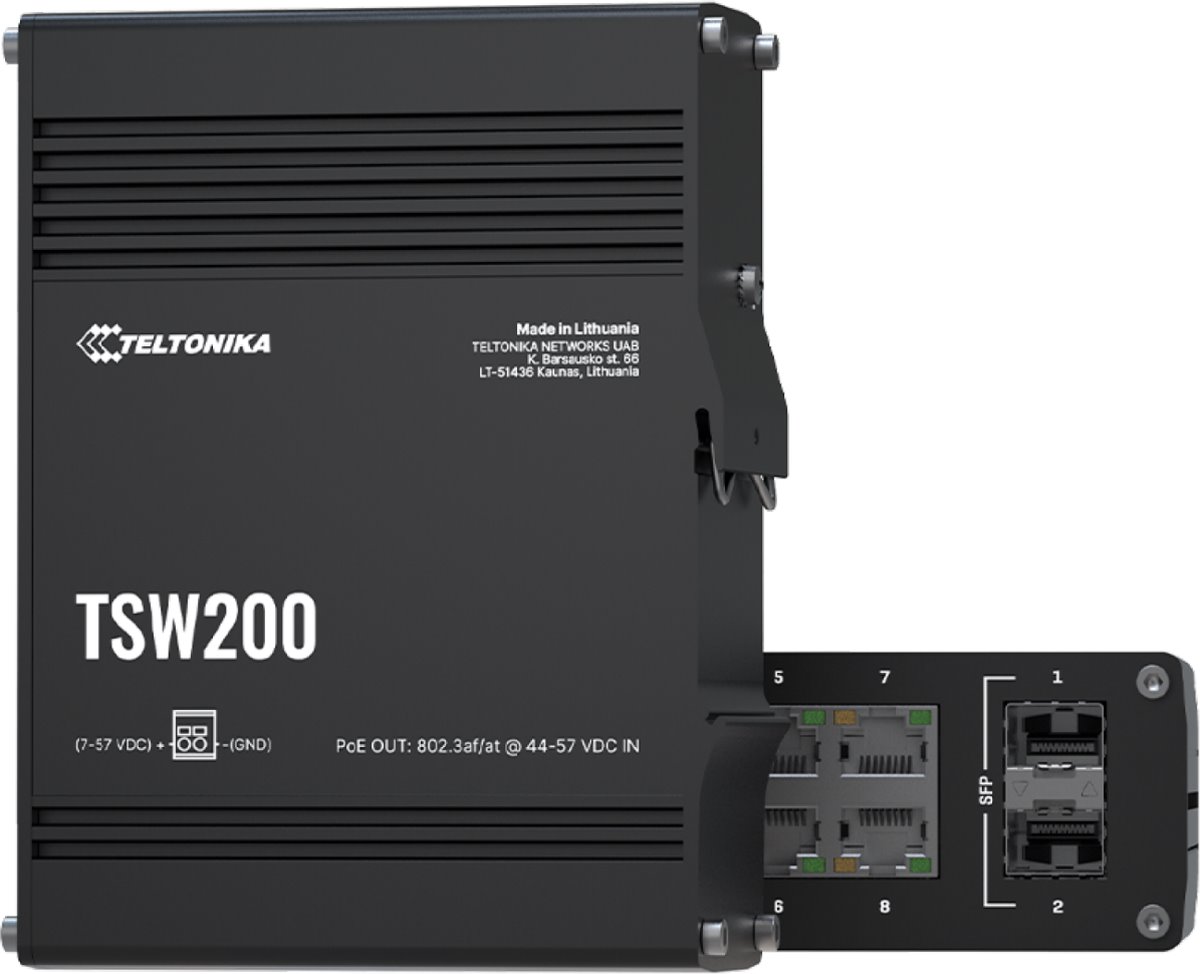

TSW200 is an industrial PoE switch from Teltonika Networks with an aluminum body, passive cooling, without management and the switch can also be installed on a DIN rail with integrated holder. The device offers 2 SFP ports with Gigabit speed, 8 LAN ports with 10/100/1000 Mbps speed, support 802.3af/at PoE (30 W/port) on all eight ports and a total PoE budget of 240 W . The power supply is handled by a 2-pin terminal block with input voltage 7 to 57 V.

PoE ports will not work if voltage is lower than 44 V DC used.

Key features

• SFP: 2 x SFP ports for long-range Fiber-optic communication
• PoE+: 8 x PoE+ ports with 802.af, 802.3at standard support
• POWER BUDGET: Total power budget at PSE up to 240 W
• ETHERNET: 8 x Gigabit Ethernet with speeds up to 1000 Mbps
• INDUSTRIAL PROTOCOLS: Profinet Class A conformance

Package contents

• Device
• QSG (Quick Start Guide)
