TP-Link DS-P7500-16 DeltaStream XGS-PON & GPON OLT

TP-Link DS-P7500-16 DeltaStream XGS-PON & GPON OLT
TP-Link DS-P7500-16 DeltaStream XGS-PON & GPON OLT
×
0/0
TP-Link DS-P7500-16 DeltaStream XGS-PON & GPON OLT
TP-Link DS-P7500-16 DeltaStream XGS-PON & GPON OLT
TP-Link DS-P7500-16 DeltaStream XGS-PON & GPON OLT
TP-Link DS-P7500-16 DeltaStream XGS-PON & GPON OLT
TP-Link DS-P7500-16 DeltaStream XGS-PON & GPON OLT
TP-Link DS-P7500-16 DeltaStream XGS-PON & GPON OLT
TP-Link DS-P7500-16 DeltaStream XGS-PON & GPON OLT
TP-Link DS-P7500-16 DeltaStream XGS-PON & GPON OLT
TP-Link DS-P7500-16 DeltaStream XGS-PON & GPON OLT
TP-Link DS-P7500-16 DeltaStream XGS-PON & GPON OLT
TP-Link DS-P7500-16 DeltaStream XGS-PON & GPON OLT
TP-Link DS-P7500-16 DeltaStream XGS-PON & GPON OLT
TP-Link DS-P7500-16 DeltaStream XGS-PON & GPON OLT
TP-Link DS-P7500-16 DeltaStream XGS-PON & GPON OLT
TP-Link DS-P7500-16 DeltaStream XGS-PON & GPON OLT
TP-Link DS-P7500-16 DeltaStream XGS-PON & GPON OLT
TP-Link DS-P7500-16 DeltaStream XGS-PON & GPON OLT
TP-Link DS-P7500-16 DeltaStream XGS-PON & GPON OLT
TP-Link DS-P7500-16 DeltaStream XGS-PON & GPON OLT
TP-Link DS-P7500-16 DeltaStream XGS-PON & GPON OLT
TP-Link DS-P7500-16 DeltaStream XGS-PON & GPON OLT
TP-Link DS-P7500-16 DeltaStream XGS-PON & GPON OLT
TP-Link DS-P7500-16 DeltaStream XGS-PON & GPON OLT
TP-Link DS-P7500-16 DeltaStream XGS-PON & GPON OLT

Your price excl. VAT
9 693.07 EUR
Recycling fee 0.06 EUR
Your price with RF 9 693.13 EUR
Your price incl. VAT (21%) 11 728.69 EUR
blank

stiqtyfree:0
_17:
avail:0
infocode: avail
queu:
shipmin:
Not in stock
Plzeňtrue
false
false
stiqtyfree:0
_17:
avail:0
infocode: avail
queu:
shipmin:
Not in stock
Availability
at our branches
Manufacturer

TP-Link
Code10411471
Part No.DS-P7500-16
Warranty 60 months
You have a choice of 2 variantscompare all
TP-Link DS-P7500-16 DeltaStream XGS-PON & GPON OLT
(16) PON
DS-P7500-16
9 693.07 EUR

stiqtyfree:0
_17:
avail:0
infocode: avail
queu:
shipmin:
Not in stock
TP-Link DS-P7501-08 DeltaStream 8-Port Pizza-Box XGS-PON & GPON
(8) PON
DS-P7501-08
6 307.34 EUR

stiqtyfree:0
_17:
avail:0
infocode: avail
queu:
shipmin:
Not in stock
  • Related products14
MaxLink 25G SFP28 optical module, SM, 10km, 2x LC konektor, DDM
MaxLink 25G SFP28 optical module, SM, 10km, 2x LC konektor, DDM
ML-S28-SM-10

36.10 EUR excl. VAT
43.77 EUR incl. VAT

stiqtyfree:0
_17:
avail:0
infocode: avail
queu:
shipmin: 8.1.2026
Expected 8.1.2026
MaxLink 25G SFP28 optical modul, 1270-1330nm, SM, BIDI, 10km, 1x LC connector
MaxLink 25G SFP28 optical modul, 1270-1330nm, SM, BIDI, 10km, 1x LC connector
ML-S28-2733-SM-10

43.65 EUR excl. VAT
52.90 EUR incl. VAT

stiqtyfree:0
_17:
avail:0
infocode: avail
queu:
shipmin: 8.1.2026
Expected 8.1.2026
MaxLink 25G SFP28 optical modul, 1330-1270nm, SM, BIDI, 10km, 1x LC connectors
MaxLink 25G SFP28 optical modul, 1330-1270nm, SM, BIDI, 10km, 1x LC connectors
ML-S28-3327-SM-10

41.91 EUR excl. VAT
50.80 EUR incl. VAT

stiqtyfree:0
_17:
avail:0
infocode: avail
queu:
shipmin: 8.1.2026
Expected 8.1.2026
MaxLink 25G SFP28 optical module, MM, 100m, 2x LC konektor, DDM
MaxLink 25G SFP28 optical module, MM, 100m, 2x LC konektor, DDM
ML-S28-MM-100

21.45 EUR excl. VAT
26.04 EUR incl. VAT

stiqtyfree:8
_17:
avail:2
infocode: stock
queu:
shipmin: 8.1.2026
In Stock
Ubiquiti UACC-OM-QSFP28-LR4 - Optical module, Single-Mode, 100 Gbps, LC UPC Duplex
Ubiquiti UACC-OM-QSFP28-LR4 - Optical module, Single-Mode, 100 Gbps, LC UPC Duplex
UACC-OM-QSFP28-LR4

235.11 EUR excl. VAT
284.57 EUR incl. VAT

stiqtyfree:14
_17:
avail:2
infocode: stock
queu:
shipmin:
In Stock
Ubiquiti UACC-OM-QSFP28-SR4 - Optical module, Multi-Mode, 100 Gbps, MPO-12 UPC
Ubiquiti UACC-OM-QSFP28-SR4 - Optical module, Multi-Mode, 100 Gbps, MPO-12 UPC
UACC-OM-QSFP28-SR4

54.13 EUR excl. VAT
65.58 EUR incl. VAT

stiqtyfree:53
_17:
avail:2
infocode: stock
queu:
shipmin:
In Stock
Ubiquiti UACC-OM-QSFP28-PSM4 - Optical module, Single-Mode, 100 Gbps, MPO-12 APC
Ubiquiti UACC-OM-QSFP28-PSM4 - Optical module, Single-Mode, 100 Gbps, MPO-12 APC
UACC-OM-QSFP28-PSM4

140.68 EUR excl. VAT
170.31 EUR incl. VAT

stiqtyfree:46
_17:
avail:2
infocode: stock
queu:
shipmin:
In Stock
Gembird Power cord 230V, 1,8m, angled
Gembird Power cord 230V, 1,8m, angled
PC-186A-VDE

4.95 EUR excl. VAT
5.99 EUR incl. VAT

stiqtyfree:53
_17:
avail:2
infocode: stock
queu:
shipmin:
In Stock
MaxLink 10G SFP+ optical module, MM, 850nm, 300m, 2x LC connector, DDM
MaxLink 10G SFP+ optical module, MM, 850nm, 300m, 2x LC connector, DDM
ML-S+85D-03

8.46 EUR excl. VAT
10.32 EUR incl. VAT

stiqtyfree:155
_17:
avail:2
infocode: stock
queu:
shipmin: 8.1.2026
In Stock
MaxLink 10G SFP+ optical module, SM, 1310nm, 10km, 2x LC connector, DDM
MaxLink 10G SFP+ optical module, SM, 1310nm, 10km, 2x LC connector, DDM
ML-S+31D-10

13.16 EUR excl. VAT
16.01 EUR incl. VAT

stiqtyfree:162
_17:
avail:2
infocode: stock
queu:
shipmin: 8.1.2026
In Stock
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1270/Rx1330nm, 10km, 1x LC connector, DDM
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1270/Rx1330nm, 10km, 1x LC connector, DDM
ML-S+2733-10

18.65 EUR excl. VAT
22.65 EUR incl. VAT

stiqtyfree:5
_17:
avail:2
infocode: stock
queu:
shipmin: 8.1.2026
In Stock
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1330/Rx1270nm, 10KM, 1x LC connector, DDM
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1330/Rx1270nm, 10KM, 1x LC connector, DDM
ML-S+3327-10

18.65 EUR excl. VAT
22.65 EUR incl. VAT

stiqtyfree:60
_17:
avail:2
infocode: stock
queu:
shipmin: 8.1.2026
In Stock
Masterlan patch cable UTP, Cat5e, 1m, yellow
Masterlan patch cable UTP, Cat5e, 1m, yellow
PCU5E-1YW-MS

0.63 EUR excl. VAT
0.76 EUR incl. VAT

stiqtyfree:0
_17:
avail:0
infocode: avail
queu:
shipmin: 30.1.2026
Expected 30.1.2026
Masterlan comfort patch cable UTP, Cat5e, 5m, gray
Masterlan comfort patch cable UTP, Cat5e, 5m, gray
PCU5E-5-MSC

3.80 EUR excl. VAT
4.60 EUR incl. VAT

stiqtyfree:198
_17:
avail:2
infocode: stock
queu:
shipmin:
In Stock
show moreshow less 9
Parameters
Download
GPSR

Product description

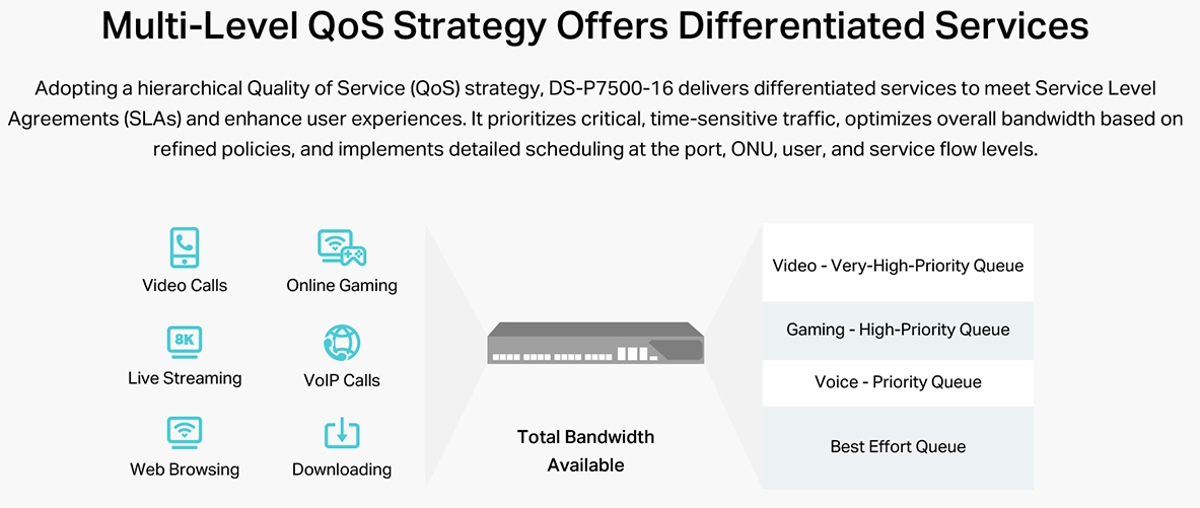

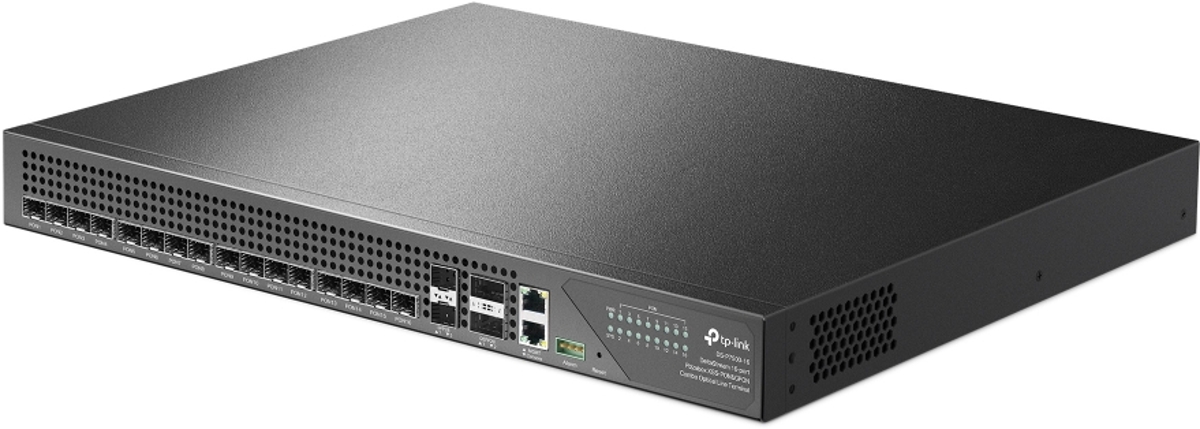

The TP-Link DS-P7500-16 is a 16-port DeltaStream Pizza-Box XGS-PON & GPON combo OLT featuring advanced L2/L2+ functions . It offers high ONU capacity, Multi-Level QoS, Zero-Touch activation, Auto Provisioning and redundant power supplies for maximum reliability.

TP-Link DS-P7500-16 Banner

Key features

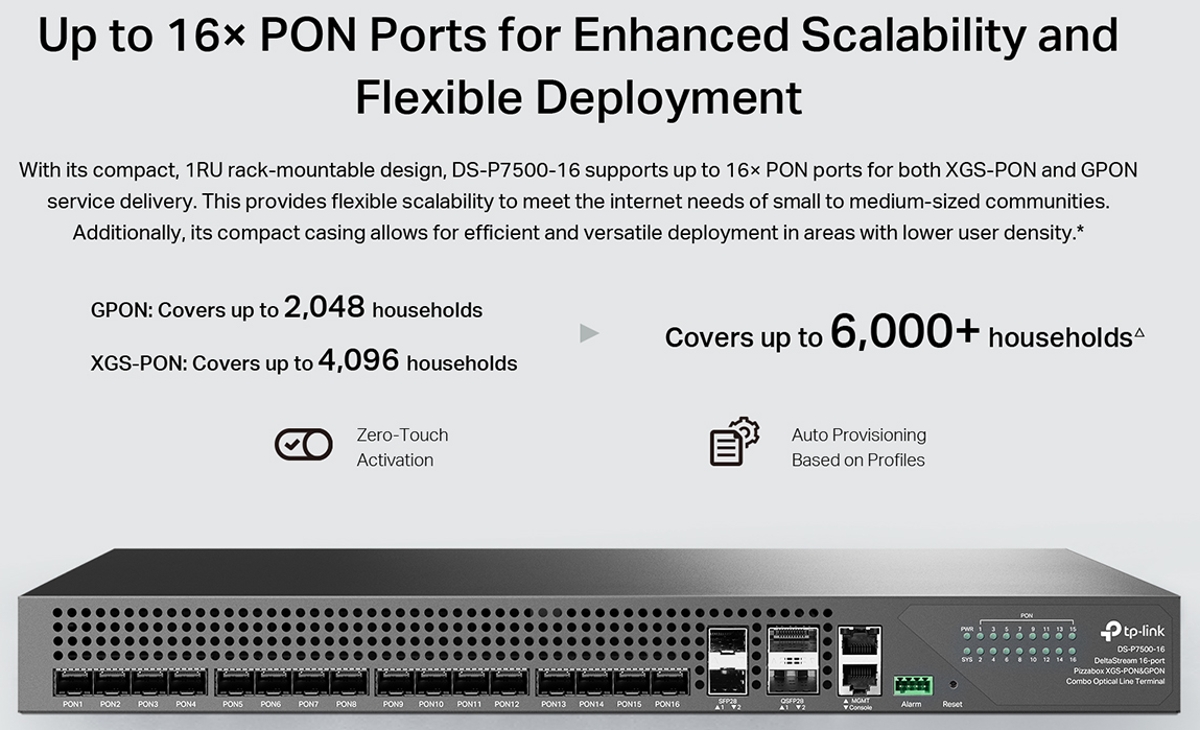

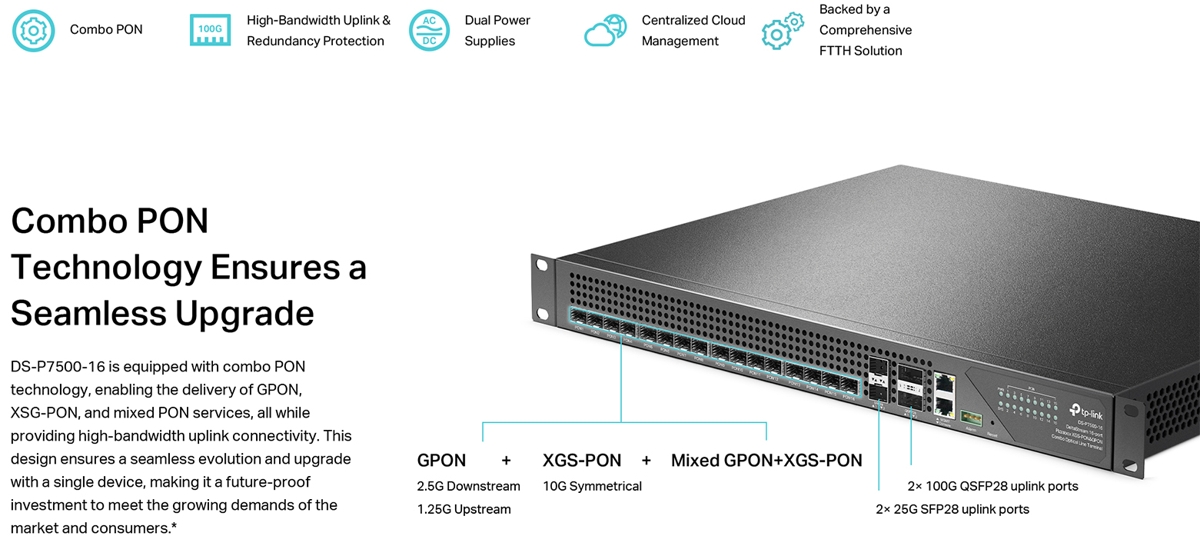

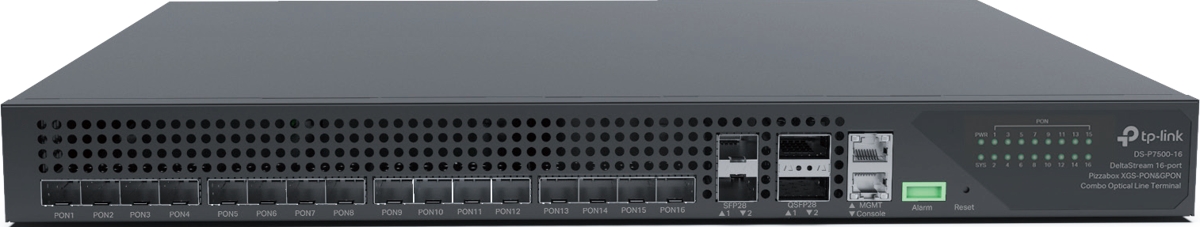

  • (2) 100Gbps QSFP28 uplink slots, (2) 25Gbps SFP28 uplink slots, (16) XGS-PON&GPON combo slots (SFP+), (1) console port, (1) MGMT port
  • High scalability - supports a 1:128 splitting ratio for GPON and 1:256 for XGS-PON

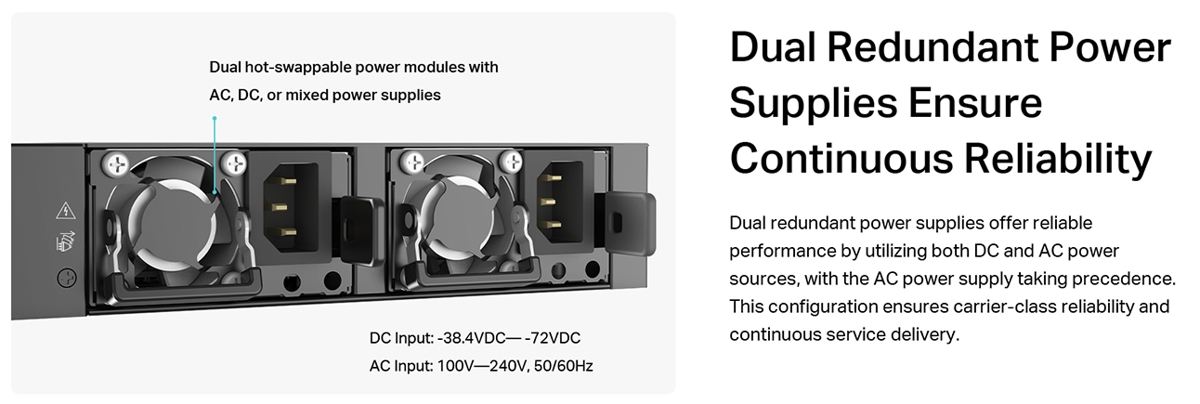

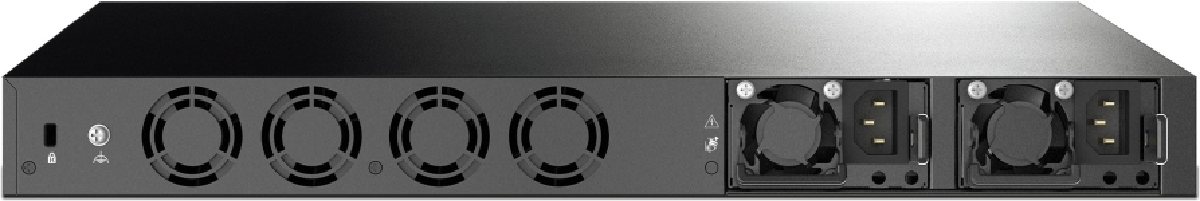

  • Redundant power supplies - dual hot-swappable power modules with AC, DC or mixed-power options
  • Zero-Touch activation - automated ONU onboarding
  • Auto Provisioning - automatic broadband service configuration based on predefined service profiles
  • Advanced L2/L2+ functions - a comprehensive feature set for flexible deployment
  • Centralized management - supports management via DeltaStream PON Management System (DPMS), SNMP, CLI, and Web UI

Package contents

  • Device
  • AC Power cord
  • Console cable
  • Mounting brackets, screws and rubber feet
  • Installation guide

GPSR

Contact:
TP-LINK Czech s.r.o.
Pekařská 695/10, 155 00 Praha 5
support.cz@tp-link.com

Bussines information

Discomp s.r.o., +420 377 221 177, sales@discomp.cz

Technical parameters

Optics

Transfer type: GPON, XGS-PON

Connectors and Interfaces

PON SFP cages: 16
Optical interfaces: (16) 10Gbps + (2) 25Gbps + (2) 100Gbps
Serial port: RJ45

Power

Power type: Mains power (230V)
Max. power consumption [W]: 165

Physical characteristics

Fans: Yes
Buttons: Reset
Operating temperature [°C]: 0 up to 50
Width [mm]: 440
Height [mm]: 44
Depth [mm]: 380

Software

Default IP address: 192.168.0.1, 192.168.1.1
Default login and password: admin / admin
