TP-Link EAP120
We are sorry, this product is no longer in our offer.
TP-Link EAP120
×
0/0
Sale
PCU5E-1YW-MS
0.61 EUR excl. VAT
0.74 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.69 EUR excl. VAT
4.46 EUR incl. VAT
In Stock
Parameters
GPSR
Technical parameters
Wireless features
Wireless frequency:
2.4 GHz
WiFi standards:
802.11b/g, 802.11n
Transmission speed - 2.4GHz [Mb/s]:
300
Tx power 2.4GHz [dBm]:
20
Security:
64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
2.4GHz MIMO:
2 x 2
Type of antenna:
Built-in
Internal antennas:
2
Roaming:
Yes
Antenna gain [dBi]:
4

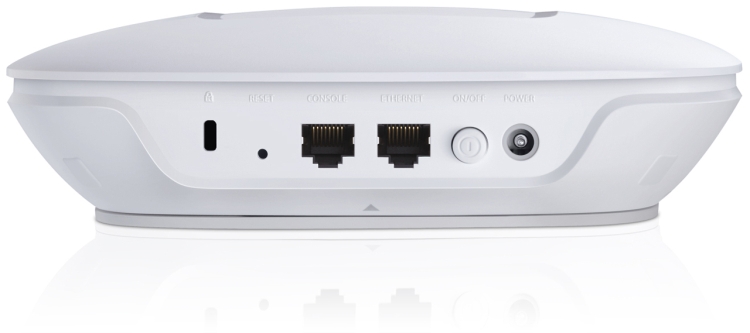

Connectors and Interfaces
LAN speed:
(2) 10/100/1000Mbps
Gigabit LAN:
Yes
Power
Power over Ethernet:
802.3af
PoE type:
PoE-Out + PoE-In
Power via connector/terminal:
12V / 1A
Physical characteristics
Purpose:
Indoor
Buttons:
Reset, power
Operating temperature [°C]:
0 up to 40
Width [mm]:
180
Height [mm]:
48
Depth [mm]:
180
Software
Operating mode:
Access Point
Default IP address:
Dynamic from DHCP
Default login and password:
admin / admin
Product description

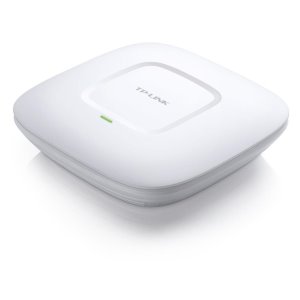

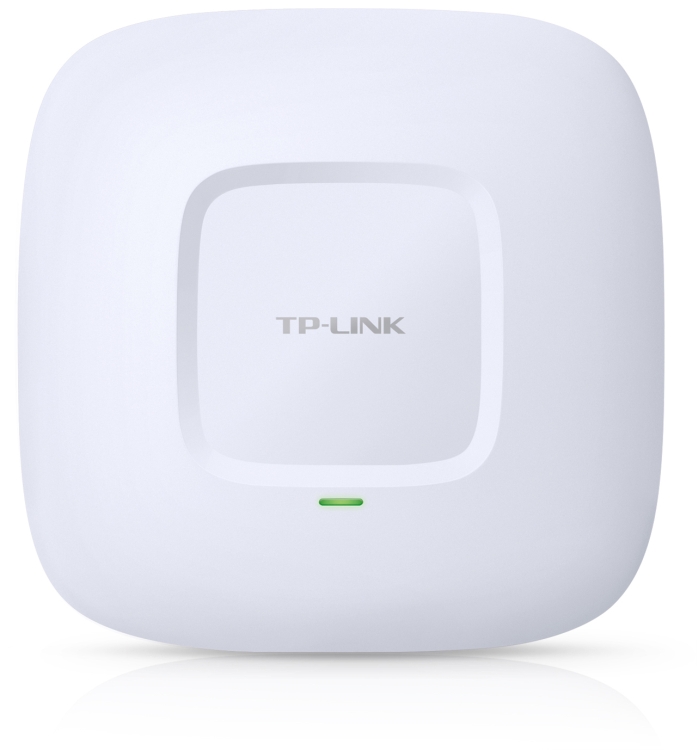

The EAP’s “ceiling lamp” appearance and easy mounting design with chassis make it easy to be integrated seamlessly into any wall or ceiling surface to blend in with most interior decorations. EAP series APs support Power over Ethernet (PoE) to make deployment effortless and flexible.
Business Class Wireless - Powerful Hardware
Centralized Wi-Fi Management Software
The free controller software allows administrators to easy manage up to hundreds of EAPs through a single IP to like an Access Controller.
*For EAP120 that’s currently supporting cluster function, please upgrade the device’s firmware to the latest to be compatible with the EAP controller software.
Efficient Guest Authentication - Captive Portal
Captive portal provides one convenient method of authentication for Wi-Fi guests. A captive portal requires users to perform certain actions before network access is allowed. The required action must be verified by an external portal server or customized database by the administrator, which can be simply viewing and agreeing to an acceptable use policy, or entering a user ID and password.
Applicable to Multi-user Environment
Designed for Business Performance
With easy mounting design, PoE power supply, Cluster feature, Centralized management software, Captive portal, Auto RF management, and business hardware, EAP series are specially designed for the high-density, most demanding business environments, including schools, hotels, and enterprises.
