TP-Link EAP683 LR Omada AX6000 Ceiling Mount Dual-Band Wi-Fi 6 Access Point
We are sorry, this product is no longer in our offer.
MAXPI30
14.39 EUR excl. VAT
17.50 EUR incl. VAT
In Stock
POE160S
20.43 EUR excl. VAT
24.77 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.14 EUR excl. VAT
3.80 EUR incl. VAT
In Stock
Parameters
Download
Video
Technical parameters
Wireless features
Maximum modulation:
1024 QAM
Wireless frequency:
2.4 + 5 GHz (dual band)
WiFi standards:
802.11n, 802.11a, 802.11ac, 802.11b/g, 802.11ax
MU-MIMO:
Yes

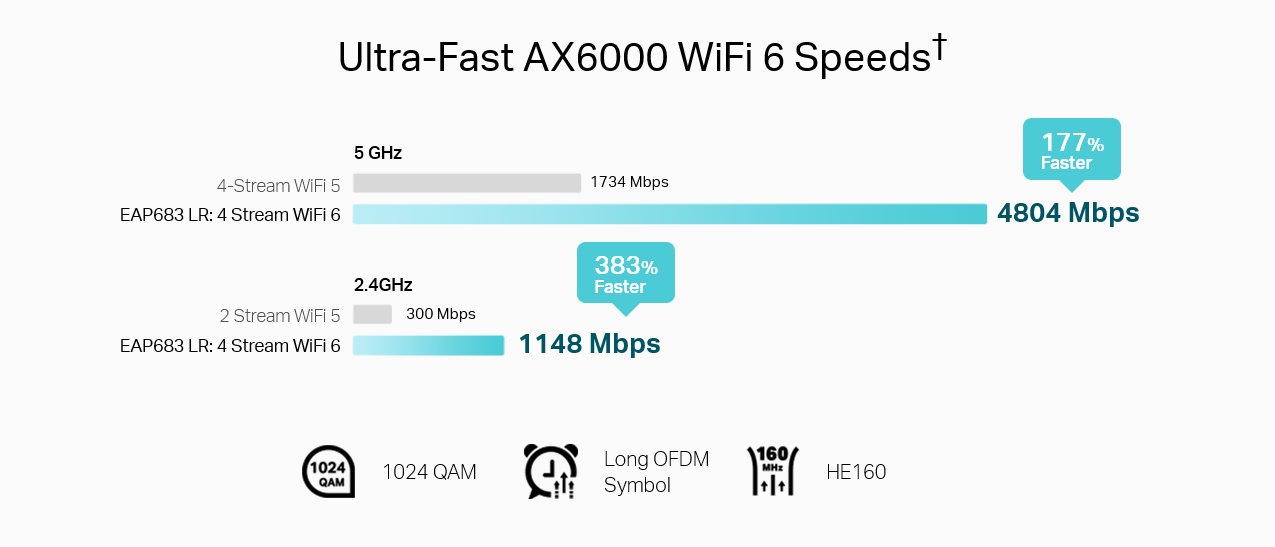

Transmission speed - 5GHz [Mb/s]:
4804
Transmission speed - 2.4GHz [Mb/s]:
1148
Tx power 2.4GHz [dBm]:
20
Tx power 5GHz [dBm]:
28
2.4GHz MIMO:
4 x 4
5GHz MIMO:
4 x 4
Type of antenna:
Built-in
Internal antennas:
4
Roaming:
Yes
Antenna gain [dBi]:
4, 5
Connectors and Interfaces
LAN speed:
(1) 100/1000/2500Mbps
Gigabit LAN:
Yes
Power
Power over Ethernet:
802.3at
PoE type:
PoE-In (only)
Max. power consumption [W]:
21
Power via connector/terminal:
12V / 2A
Physical characteristics
Purpose:
Indoor
Buttons:
Reset
Operating temperature [°C]:
0 up to 40
Width [mm]:
220
Height [mm]:
33
Depth [mm]:
220
Software
Operating mode:
Access Point
Management:

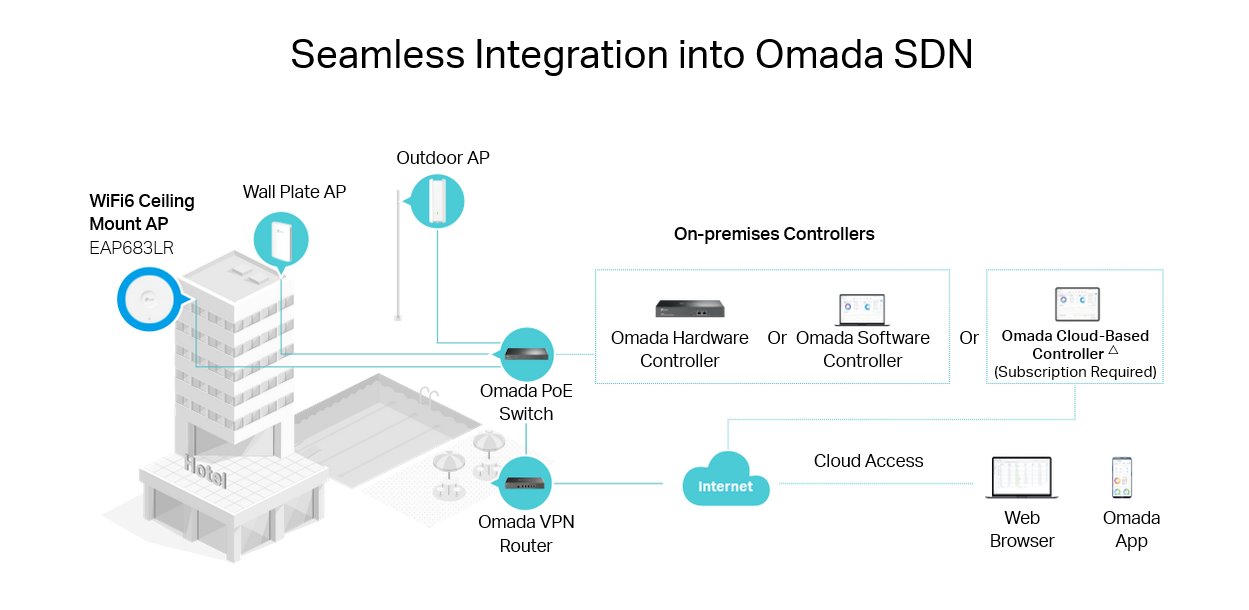

Web management, Omada controller
IPv6 support:
Yes
Product description

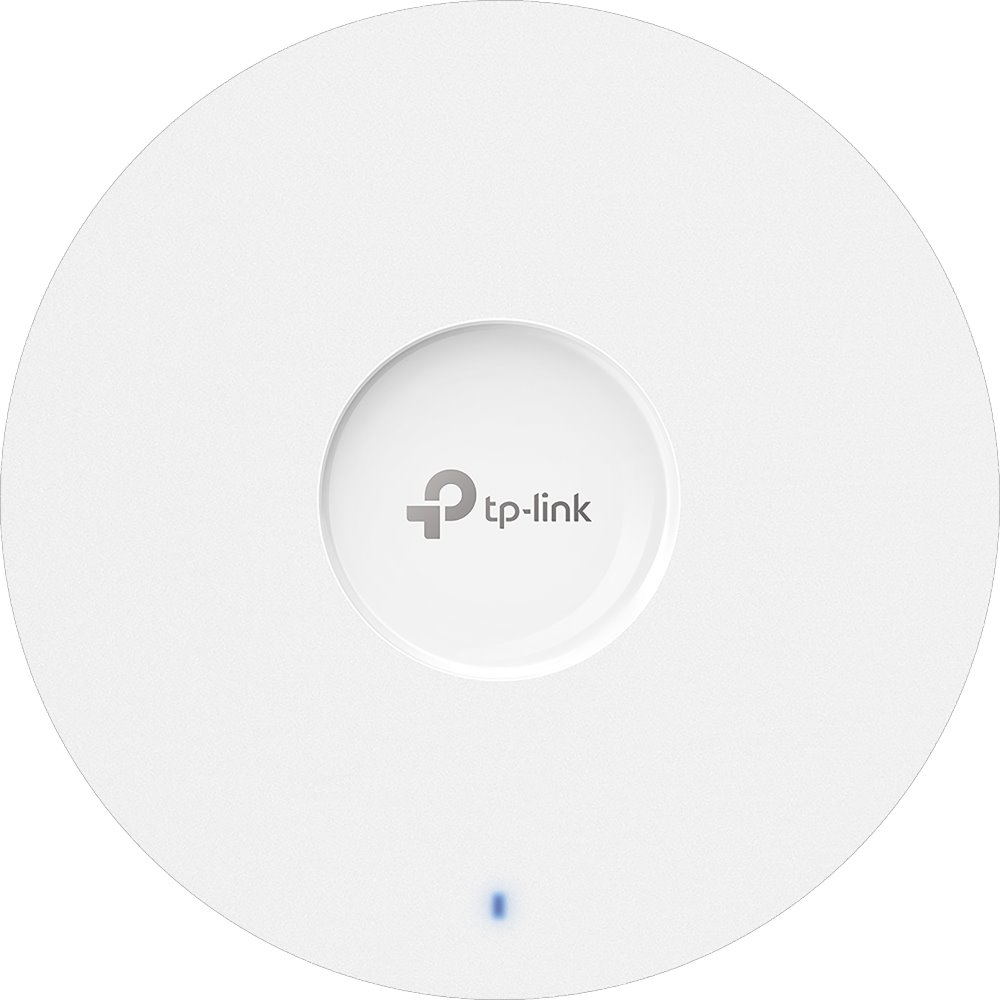

Omada AX6000 Ceiling Mount Dual-Band Wi-Fi 6 Access Point
Package contents
Download
Datasheet Installation GuideTechnical support for TP-LINK products is available at support.cz@tp-link.com email or on telephone number (+420) 212 812 622. Both services are available on working days between 9:00 and 17:00 with the first response to the latest 24 hours.
