TP-Link EC220-G5 Wireless Dual Band Router
We are sorry, this product is no longer in our offer.
TP-Link EC220-G5 Wireless Dual Band Router
×
0/0
Sale
-32%
PCU5E-1YW-MS
0.62 EUR excl. VAT
0.75 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.74 EUR excl. VAT
4.53 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Wireless features
Wireless frequency:
2.4 + 5 GHz (dual band)
WiFi standards:
802.11ac, 802.11n, 802.11a, 802.11b/g
Transmission speed - 5GHz [Mb/s]:
866
Transmission speed - 2.4GHz [Mb/s]:
300
Tx power 2.4GHz [dBm]:
20
Tx power 5GHz [dBm]:
23
Security:
WEP, WPA, WPA2
2.4GHz MIMO:
2 x 2
5GHz MIMO:
2 x 2
Type of antenna:
Fixed
Fixed antennas:
4

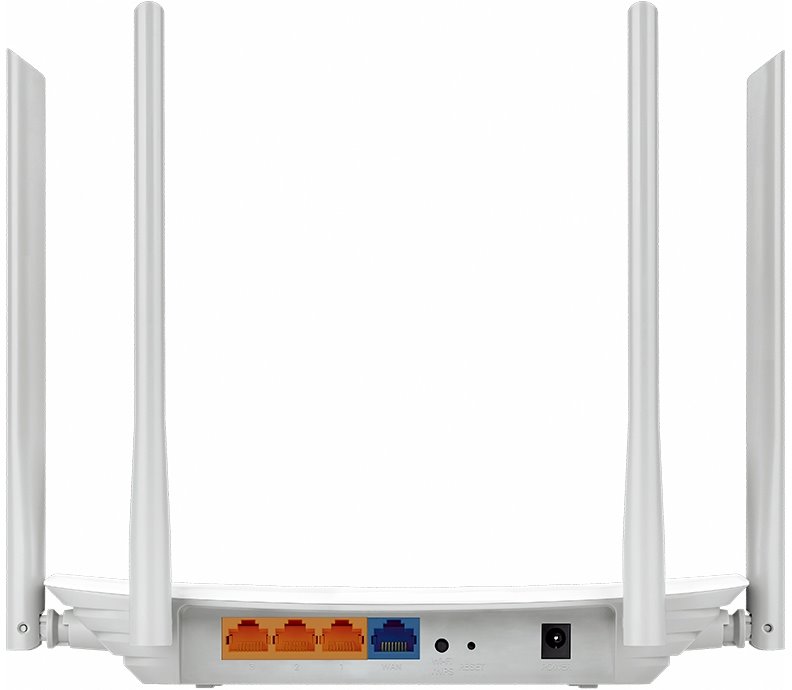

Connectors and Interfaces
WAN speed:
(1) 10/100/1000Mbps
LAN speed:
(3) 10/100/1000Mbps
Gigabit LAN:
Yes
Power
Power via connector/terminal:
12V / 1A
Physical characteristics
Purpose:
Indoor
Buttons:
Reset, WPS
Operating temperature [°C]:
0 up to 40
Width [mm]:
230
Height [mm]:
37
Depth [mm]:
144
Software
Operating mode:
AP Router
IPv6 support:
Yes
Default IP address:
192.168.0.1
Default login and password:
admin / admin
Product description

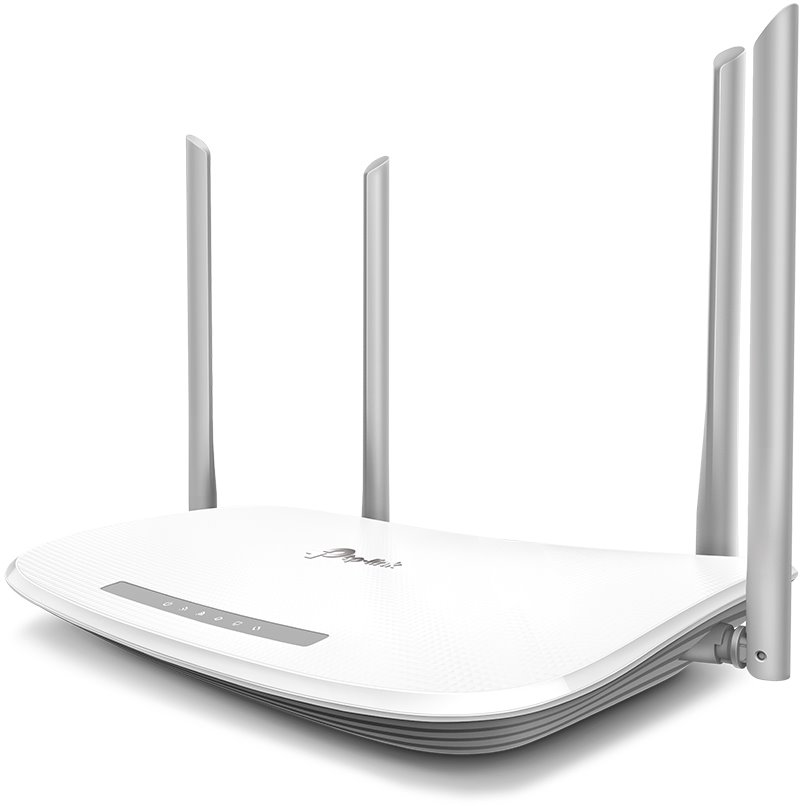

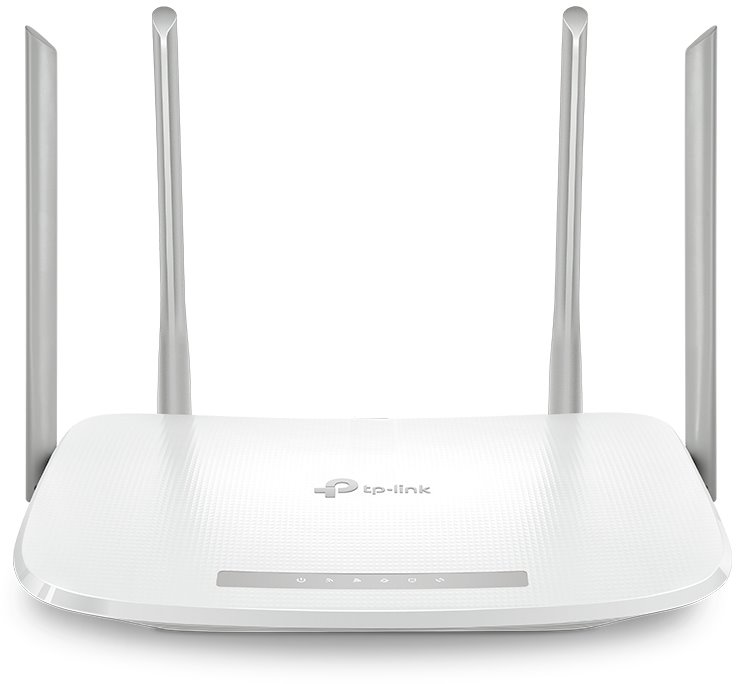

Wireless Dual Band Router EC220-G5 is a compact TP-Link router that includes 3× 10/100/1000 Mbps LAN, 1× 10/100/1000 Mbps WAN and 4 fixed antennas. The wireless part can work in two bands at the same time, at a speed of 300 Mbps in the 2.4GHz band and 866 Mbps in the 5GHz band. The router supports both IPv4 and the latest IPv6 routing.
Important features

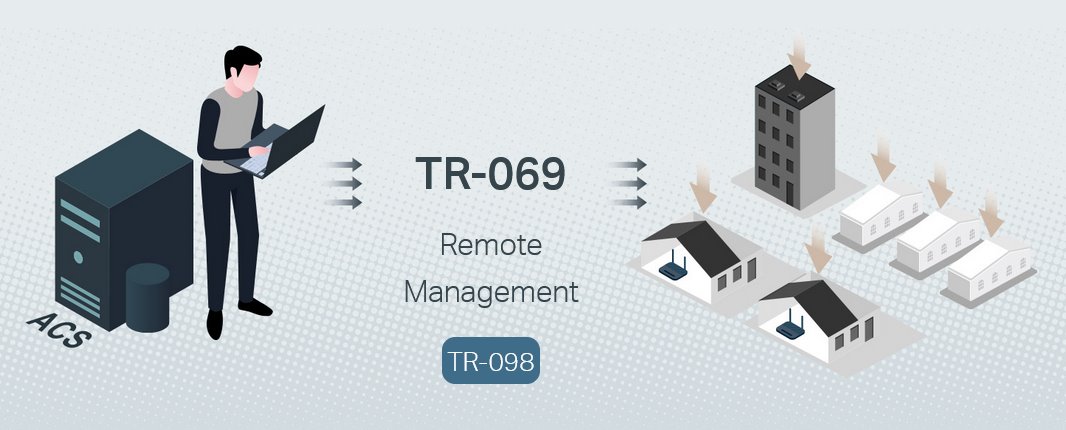

Agile Config support
This feature allows Wireless Internet Service Providers (WISPs) to modify the default configuration according to their requirements, solving the problems WISPs have when end users reset devices.
ISP support product
ATTENTION, this product is not intended for sale to end users, but only to internet connection providers as part of the installation of the service, and therefore may not contain CZ instructions and description.
Package contents
Download
Agile config manualGPSR
