TP-Link EC230-G1(ISP), Dual-Band Wi-Fi Gigabit Router
We are sorry, this product is no longer in our offer.
TP-Link EC230-G1(ISP), Dual-Band Wi-Fi Gigabit Router
×
0/0
Sale
PCU5E-1YW-MS
0.58 EUR excl. VAT
0.70 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.20 EUR excl. VAT
3.87 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Wireless features
Wireless frequency:
2.4 + 5 GHz (dual band)
WiFi standards:
802.11ac, 802.11n, 802.11a, 802.11b/g
Transmission speed - 5GHz [Mb/s]:
866
Transmission speed - 2.4GHz [Mb/s]:
450
Security:
64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK encryption
2.4GHz MIMO:
3 x 3
5GHz MIMO:
2 x 2
Type of antenna:
Fixed
Fixed antennas:
4
Antenna gain [dBi]:
5
Connectors and Interfaces
WAN speed:
(1) 10/100/1000Mbps
LAN speed:
(4) 10/100/1000Mbps
Gigabit LAN:
Yes
Power
Power via connector/terminal:
12V / 1A
Physical characteristics
Purpose:
Indoor
Buttons:
Reset, power, WiFi/WPS
Operating temperature [°C]:
0 up to 40
Width [mm]:
230
Height [mm]:
35
Depth [mm]:
144
Software
Operating mode:
AP Router, Access Point
IPv6 support:
Yes
Default IP address:
192.168.0.1
Default login and password:
admin / admin
Product description

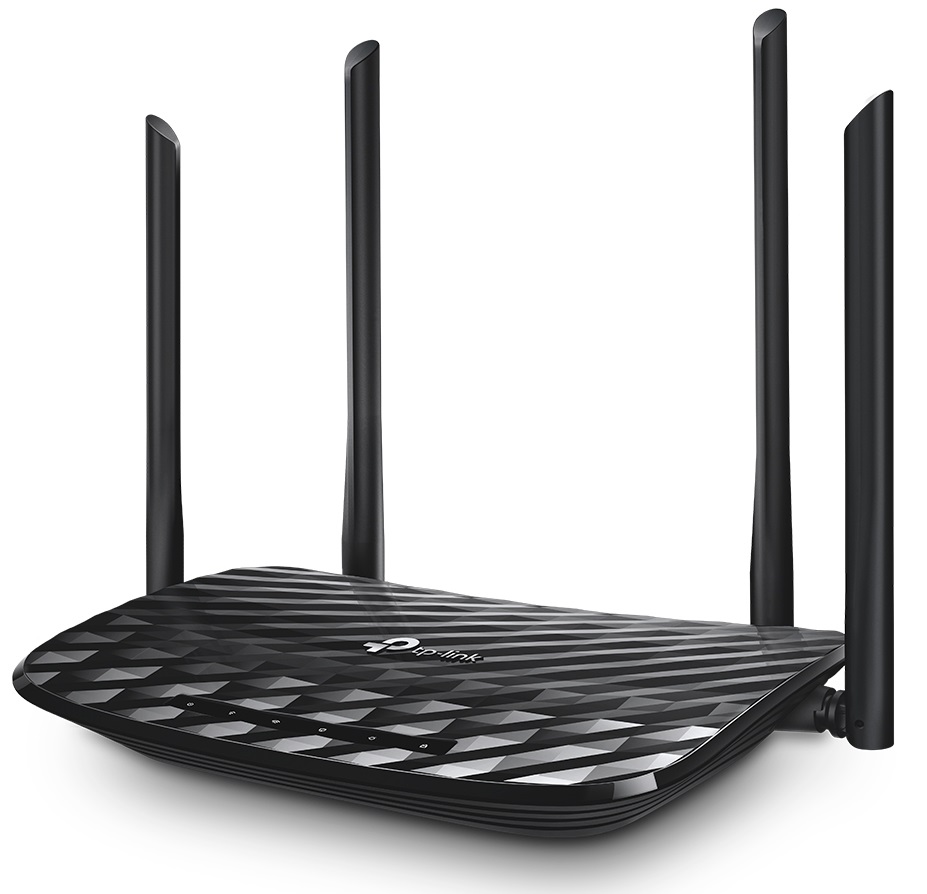

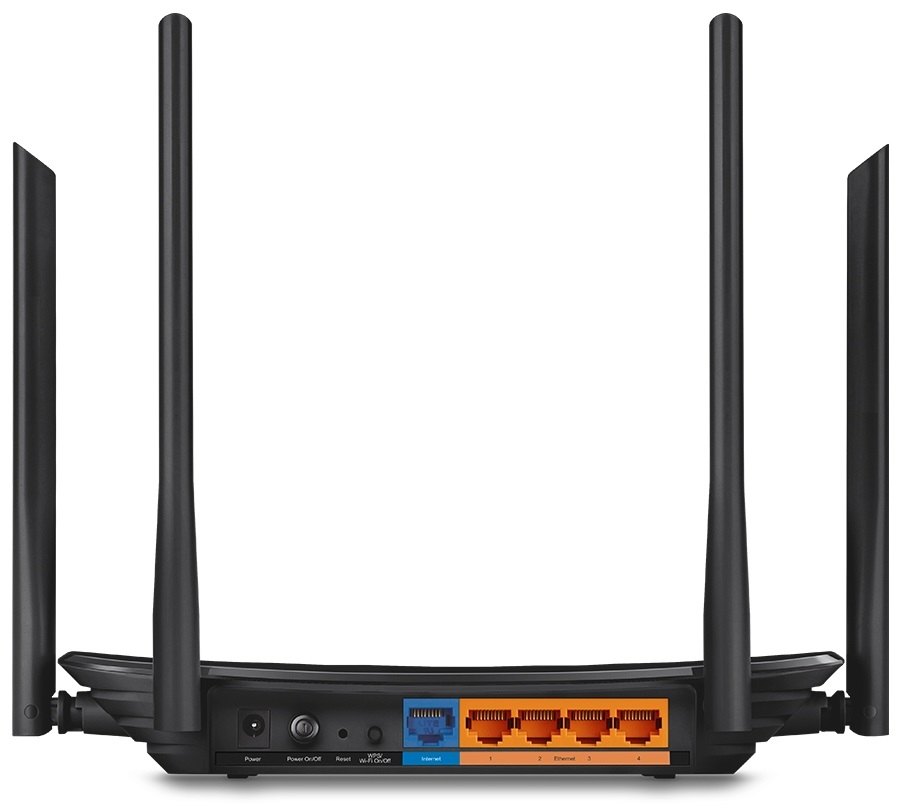

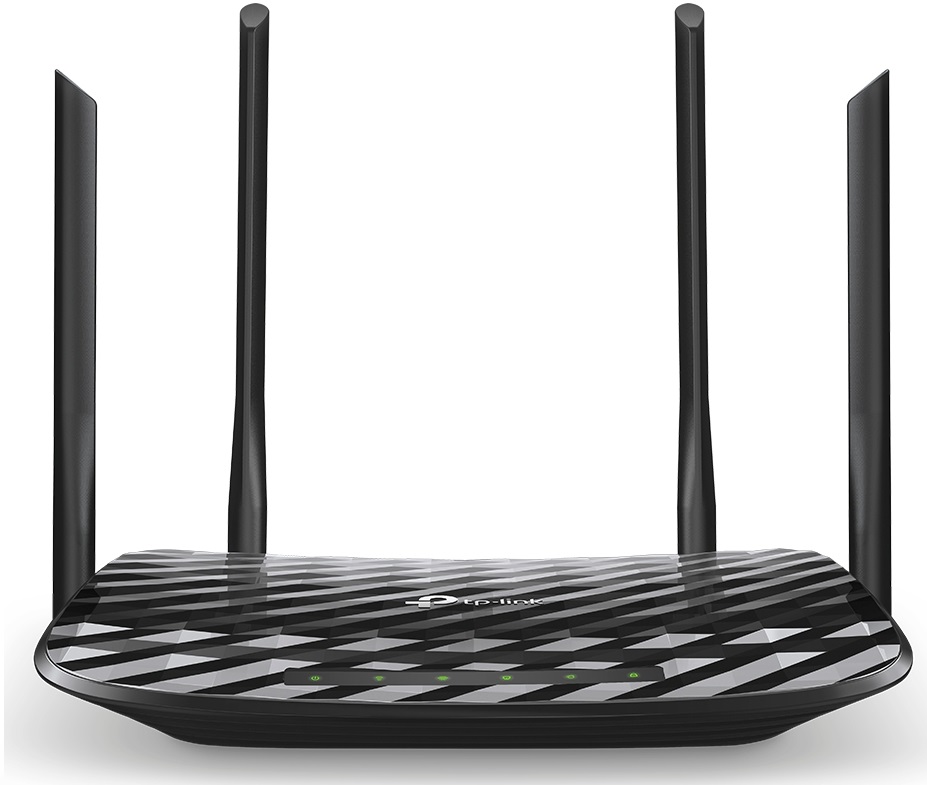

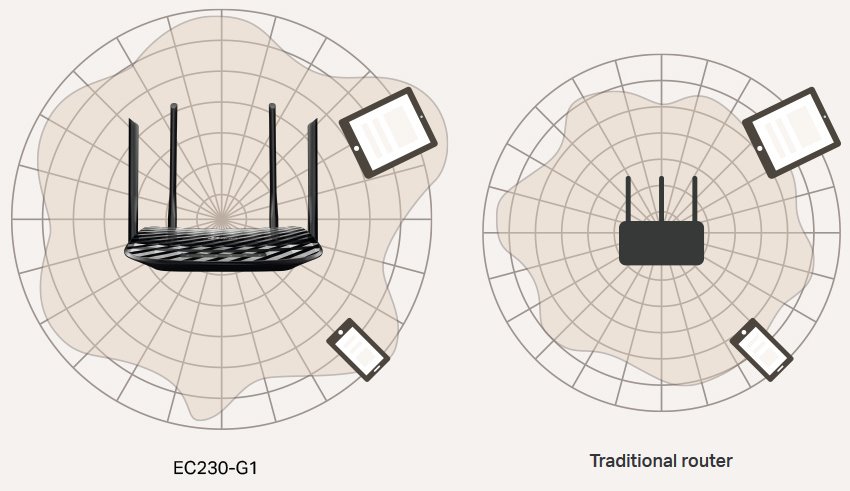

The EC230-G1 is an innovative dual-band gigabit router that follows the popular Archer C5. The transfer rate is 450Mbps for 2.4GHz and 867Mbps for the 5GHz band. The signal is provided by four antennas working with MU-MIMO technology - increasing data throughput when more devices are connected. The Beamforming technology then amplifies the signal in the direction of the connected devices. For communication with end elements (PC, printers, consoles, ...) there are four Gigabit ports, which is supplemented by Gigabit WAN for Internet connection.

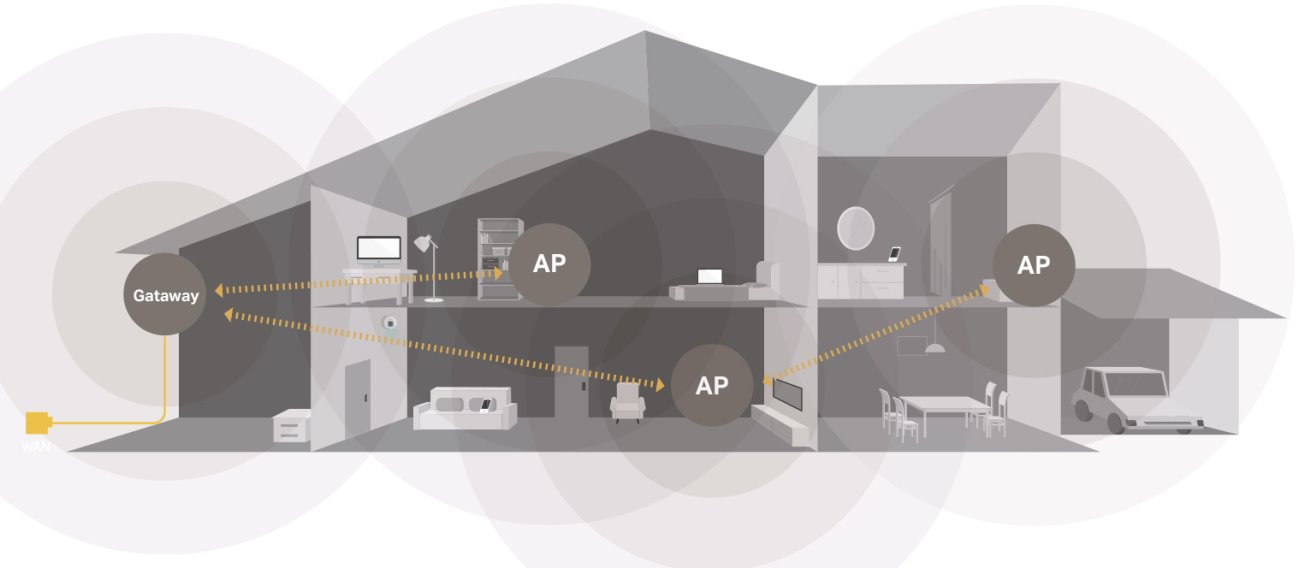

Easy Mesh
The device supports the Easy Mesh function, where you can connect multiple AP´s, which then cover larger and more articulated spaces with a complete signal and the user does not even know which AP is currently connected.
Package Contents
Download
Agile Config Manual CETechnical support for TP-LINK products is available at support.cz@tp-link.com email or on telephone number (+420) 212 812 622. Both services are available on working days between 9:00 and 17:00 with the first response to the latest 24 hours.
