TP-Link MC211CS-20 Omada Gigabit WDM media converter
TP-Link MC211CS-20 Omada Gigabit WDM media converter
×
0/0
New product
Your price excl. VAT
27.97 EUR
| Recycling fee | 0.06 EUR |
|---|---|
| Your price with RF | 28.03 EUR |
| Your price incl. VAT (21%) | 33.92 EUR |
| blank |
Availability
at our branches
at our branches
Per orig. box:
30 pcs.
| Manufacturer |
TP-Link |
|
|---|---|---|
| Code | 10411355 | |
| Part No. | MC211CS-20 | |
| Warranty | 60 months | |
You have a choice of 4 variantscompare all
Tx high, 20 km
MC211CS-20
27.97 EUR
SCupc/SCupc-SSM.9/125-02
2.42 EUR excl. VAT
2.93 EUR incl. VAT
In Stock
SCupc/SCupc-SSM.9/125-03
2.74 EUR excl. VAT
3.32 EUR incl. VAT
In Stock
SCupc/SCupc-SSM.9/125-07
4.44 EUR excl. VAT
5.37 EUR incl. VAT
In Stock
SCupc/SCupc-SSM.9/125-15
6.50 EUR excl. VAT
7.87 EUR incl. VAT
In Stock
LCupc/SCupc-SSM.9/125-01
2.06 EUR excl. VAT
2.49 EUR incl. VAT
In Stock
LCupc/SCupc-SSM.9/125-02
2.38 EUR excl. VAT
2.88 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.62 EUR excl. VAT
0.75 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.71 EUR excl. VAT
4.49 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Optics
For cable type:
Single Mode
Transmission speed:
1 Gbps
Wavelength - Tx/Rx [nm]:
1550 / 1310
Distance [km]:
20
Connectors and Interfaces
Optical Connectors:
(1) SC
LAN speed:
(1) 10/100/1000Mbps
Optical interfaces:
(1) 1000Mbps
Power
Power type:
DC connector
Max. power consumption [W]:
1,8
Power via connector/terminal:
9V / 0,6A
Physical characteristics
Operating temperature [°C]:
-5 up to 50
Width [mm]:
73
Height [mm]:
27
Depth [mm]:
95
Product description

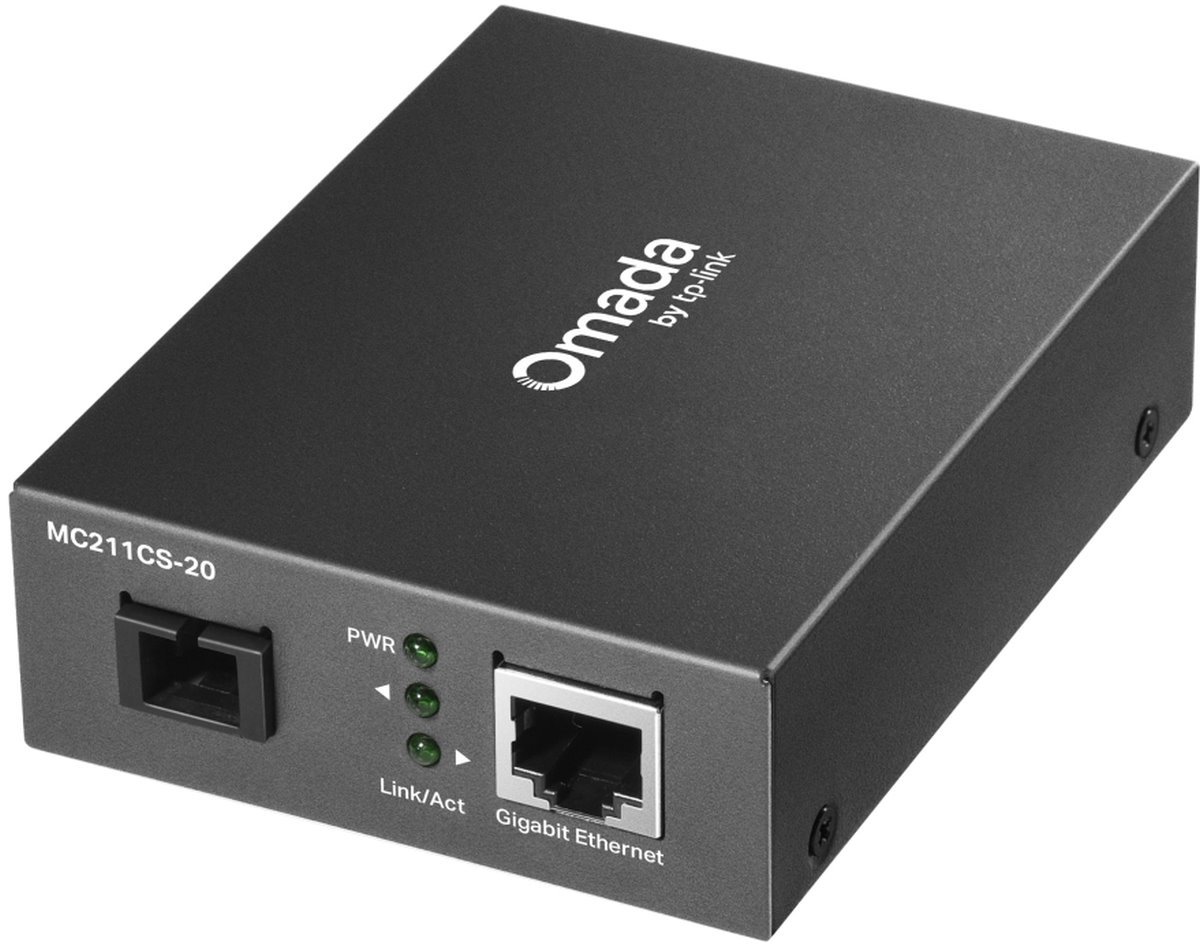

MC211CS-20 is an optical-metallic WDM converter from RJ45 to optical SC connector. Maximum throughput is 1000Mbps FD, which is also adapted to the Ethernet port, which can communicate with your device with 10/100/1000 Mbps speed. The converter can be used up to a distance of 20km with a single-mode (9/125um) optical fiber with one SC connector. The wavelength is 1550 / 1310 nm (Tx/Rx) and for proper functionality it is necessary to have on opposite side model MC212CS-20, which has opposite Tx and Rx than this model.
Package contents
Download
Datasheet Installation GuideGPSR
