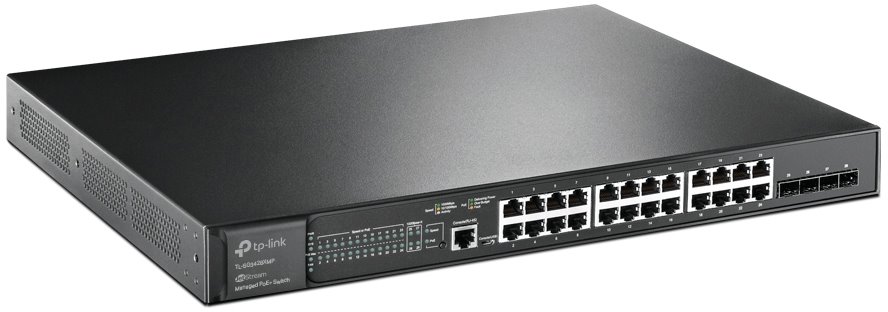

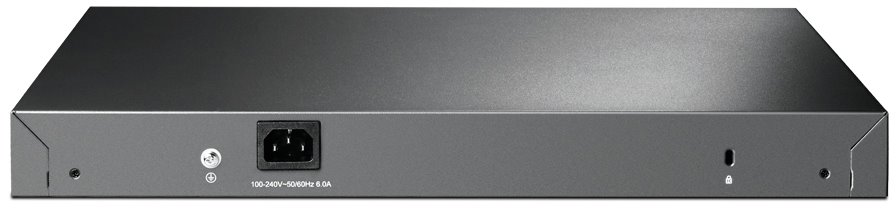

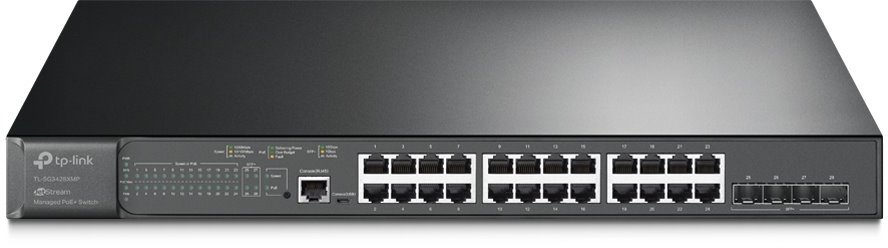

TP-Link SG3428XMP JetStream PoE Switch
TP-Link SG3428XMP JetStream PoE Switch
×
0/0
Your price excl. VAT
600.04 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 600.11 EUR |
| Your price incl. VAT (21%) | 726.13 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
TP-Link |
|
|---|---|---|
| Code | 10410616 | |
| Part No. | SG3428XMP | |
| Warranty | 60 months | |
ML-S+85D-03
8.15 EUR excl. VAT
9.95 EUR incl. VAT
In Stock
ML-S+31D-10
13.19 EUR excl. VAT
16.04 EUR incl. VAT
In Stock
ML-S+2733-10
18.68 EUR excl. VAT
22.69 EUR incl. VAT
In Stock
ML-S+3327-10
18.68 EUR excl. VAT
22.69 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.14 EUR excl. VAT
3.80 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Connectors and Interfaces
LAN speed:
(24) 10/100/1000Mbps
Optical interfaces:
(4) 10Gbps
Serial port:
micro USB, RJ45
Power
Power type:
Mains power (230V)
PoE type:
PoE-Out (only)
PoE-Out standards:
802.3af, 802.3at
PoE Out ports:
24
PoE budget [W]:
384
Max. power consumption [W]:
34
Power via connector/terminal:
230V AC
Physical characteristics
Design:
Rackmount
Fans:
(2) 40 x 40 mm
Chassis design:
Metal
Buttons:
Status (Speed / PoE)
Operating temperature [°C]:
0 up to 45
Width [mm]:
440
Height [mm]:
44
Depth [mm]:
330
General
Switchning capacity [Gbps]:
128
MAC address table:
16000
Jumbo frame [Bytes]:
9000
Packet forwarding rate [Mpps]:
95,2
Software
Web management:
Yes
Management:
Web management, SSH, Telnet, Omada controller
Features:
VLAN, QoS, DHCP snooping
Default IP address:
192.168.0.1
Default login and password:
admin / -
Product description
TL-SG3428XMP is a network edge access switch that provides 24x 10/100/1000 Mbps LAN ports with PoE function (802.3af/at) for powering VoIP / cameras and other devices, PoE budget 384W and a maximum consumption of 30W/port. In addition, 4x 10G SFP+ slots are available for further network expansion. For administration and monitoring, it is possible to use common access via web interface and protocols such as CLI, SNMP, RMO, as well as centralized cloud management and software controller. The Omada hardware controller (OC200 / OC300) is also supported.
