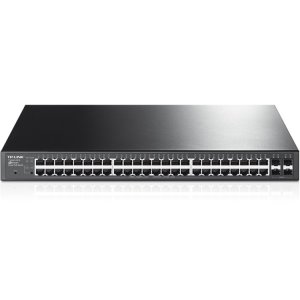

TP-Link T1600G-52PS JetStream PoE Switch

We are sorry, this product is no longer in our offer.

TP-Link T1600G-52PS JetStream PoE Switch
TP-Link T1600G-52PS JetStream PoE Switch
×
0/0
TP-Link T1600G-52PS JetStream PoE Switch
TP-Link T1600G-52PS JetStream PoE Switch
Sale
Manufacturer

TP-Link

Code10120131
Part No.T1600G-52PS(TL-SG2452P)
  • Related products2
Masterlan patch cable UTP, Cat5e, 1m, yellow
PCU5E-1YW-MS

0.61 EUR excl. VAT
0.74 EUR incl. VAT
In Stock
Masterlan comfort patch cable UTP, Cat5e, 5m, gray
PCU5E-5-MSC

3.69 EUR excl. VAT
4.46 EUR incl. VAT
In Stock
Parameters
Download
GPSR

Product description

The T1600G-52PS provides 48x 10/100/1000Mbps RJ45 Ports which support 802.3at/af-compliant PoE, with a total PoE power supply up to 384W, powerful and ­flexible enough for users to deploy wireless access points or IP-based network surveillance cameras. The switch is also equipped with 4 Gigabit SFP slots, expanding your network fl­exibly. In addition, it provides high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, and useful security strategies.

Static Routing helps route internal traffic for more efficient use of network resources. The Storm Control feature protects against Broadcast, Multicast and Unknown unicast Storm. 802.1X and Radius Authentication allows network client to be authenticated through external Radius Servers. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. Moreover, the easy-to-use web management interfaces, along with SNMP, RMON and Dual Image, mean faster setup and configuration with less downtime. With all these advanced features, the JetStream Gigabit Smart PoE+ Switch T1600G-52PS is an ideal choice for projects or business networks which need PoE function.

Features

  • Supports 48 802.3at/af-compliant PoE+ ports with a total power supply of 384W
  • L2+ Feature——Static Routing, helps route internal traffic for more efficient use of network resources
  • IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X and Radius Authentication provide you robust security strategies
  • L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
  • IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery
  • WEB/CLI managed modes, SNMP, RMON and Dual Image bring abundant management features

Package contains

  • Device
  • Power cord
  • Rackmount ears
  • Rubber Feet

Download

Datasheet

GPSR

Contact:
TP-LINK Czech s.r.o.
Pekařská 695/10, 155 00 Praha 5
support.cz@tp-link.com

Bussines information

Luděk Merta, +420 722 926 224 , ludek.merta@discomp.cz

Technical parameters

Connectors and Interfaces

LAN speed: (48) 10/100/1000Mbps
Optical interfaces: (4) 1000Mbps

Power

Power type: Mains power (230V)
PoE type: PoE-Out (only)
PoE-Out standards: 802.3af, 802.3at
PoE Out ports: 48
PoE budget [W]: 384
Max. power consumption [W]: 470
Power via connector/terminal: 230V AC

Physical characteristics

Design: Rackmount
Fans: Yes
Chassis design: Metal
Buttons: Reset
Operating temperature [°C]: 0 up to 40
Width [mm]: 440
Height [mm]: 44
Depth [mm]: 330

General

Switchning capacity [Gbps]: 104
MAC address table: 16000
Jumbo frame [Bytes]: 9000
Packet forwarding rate [Mpps]: 77,4

Software

Web management: Yes
Management: Web management
Features: VLAN, QoS, DHCP snooping, L3
Default IP address: 192.168.0.1
Default login and password: admin / admin
