TP-Link TL-SG3428XPP-M2 JetStream Switch, 24x PoE, 500W
We are sorry, this product is no longer in our offer.
TP-Link TL-SG3428XPP-M2 JetStream Switch, 24x PoE, 500W
×
0/0
Sale
| Manufacturer |
TP-Link |
|
|---|---|---|
| Code | 10410873 | |
| Part No. | TL-SG3428XPP-M2 | |
You have a choice of 2 variantscompare all
(24) PoE
TL-SG3428XPP-M2
976.57 EUR
PCU5E-1YW-MS
0.62 EUR excl. VAT
0.75 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.72 EUR excl. VAT
4.50 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Connectors and Interfaces
LAN speed:
(24) 100M/1G/2.5G
Optical interfaces:
(4) 10Gbps
Serial port:
micro USB, RJ45
Power
Power type:
Mains power (230V)
PoE type:
PoE-Out (only)
PoE-Out standards:
802.3af, 802.3at, 802.3bt
PoE Out ports:
24
PoE budget [W]:
500
Max. power consumption [W]:
629
Power via connector/terminal:
230V AC
Physical characteristics
Design:
Rackmount
Fans:
Yes
Chassis design:
Metal
Operating temperature [°C]:
0 up to 40
Width [mm]:
440
Height [mm]:
44
Depth [mm]:
330
General
Switchning capacity [Gbps]:
200
MAC address table:
32000
Jumbo frame [Bytes]:
9000
Packet forwarding rate [Mpps]:
148,8
Software
Web management:
Yes
Management:
Web management, SSH, Telnet, Omada controller
Features:
VLAN, QoS, DHCP snooping
Default IP address:
192.168.0.1
Default login and password:
admin / admin
Product description

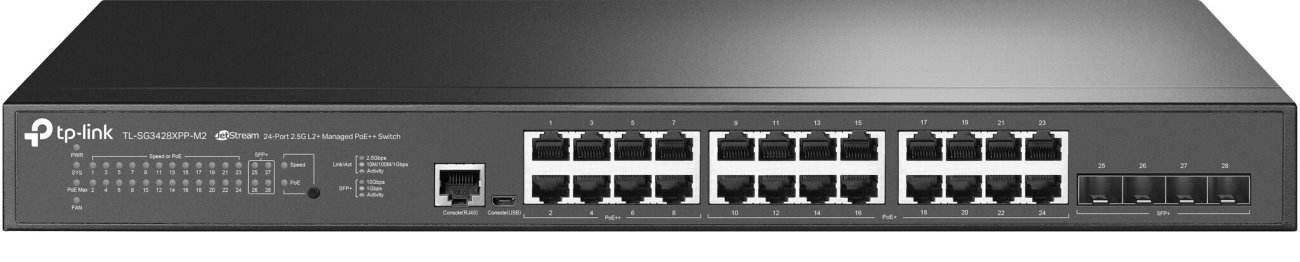

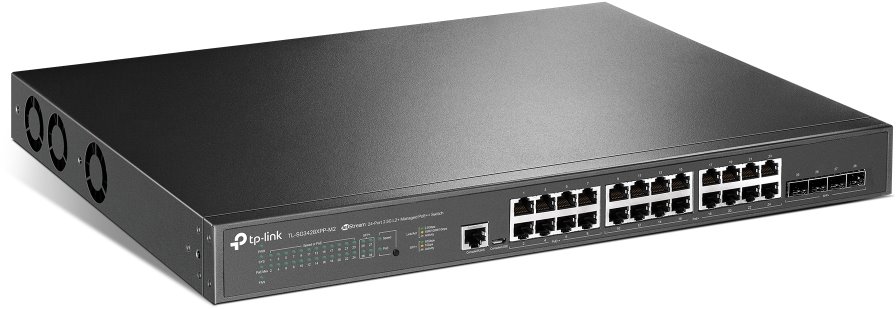

The switch provides 24x 100/1000/2500 Mbps LAN ports for clients and additionally 4x optical SFP+ ports serving primarily as an uplink with a total switching capacity of 200 Gbps. All 24 ports support 802.3af/at (max 30W/port) PoE, 8 ports even 802.3bt (max 60W/port) PoE. The total PoE budget is 500W for all ports.
For management and monitoring, it is possible to use the usual access via the web interface and protocols, for example. CLI, SNMP, RMO, but also centralized cloud management and software controller. Omada hardware controller (OC200/OC300) is also supported.
Switch loaded with features
The switch provides high-performance routing based on IP, MAC, TCP or UDP. All in combination with advanced security strategies (IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication... .). With all these advanced features, the gigabit L2+ JetStream switch is an ideal choice for small and medium-sized business network solutions.
Omada Controller
The Omada Software Defined Networking (SDN) platform integrates network devices, including Access Points, Switches, Gateway routers and provides 100% centralized management in the cloud. Omada creates a highly scalable network including control from a single interface. Provides seamless wireless and wired connectivity, ideal for use in hospitality, education, retail, offices and more.
Package contents
Download
DatasheetGPSR
