TP-Link TL-SL1226P PoE Switch
TP-Link TL-SL1226P PoE Switch
×
0/0
Your price excl. VAT
261.00 EUR
| Recycling fee | 0.04 EUR |
|---|---|
| Your price with RF | 261.04 EUR |
| Your price incl. VAT (21%) | 315.86 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
TP-Link |
|
|---|---|---|
| Code | 19704180 | |
| Part No. | TL-SL1226P | |
| Warranty | 60 months | |
ML-S31D-3
6.28 EUR excl. VAT
7.68 EUR incl. VAT
Expected 16.5.2024
ML-S85D-05
6.56 EUR excl. VAT
8.02 EUR incl. VAT
Expected 16.5.2024
ML-S3155-20
6.28 EUR excl. VAT
7.68 EUR incl. VAT
In Stock
ML-S31D-20
6.56 EUR excl. VAT
8.02 EUR incl. VAT
In Stock
ML-S5531-20
8.62 EUR excl. VAT
10.51 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.14 EUR excl. VAT
3.80 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Connectors and Interfaces
LAN speed:
(24) 10/100Mbps + (2) 10/100/1000Mbps
Optical interfaces:
(2) 1000Mbps Combo
Power
Power type:
Mains power (230V)
PoE type:
PoE-Out (only)
PoE-Out standards:
802.3af, 802.3at
PoE Out ports:
24
PoE budget [W]:
250
Long range PoE - up to 250m:
Yes
Max. power consumption [W]:
17
Power via connector/terminal:
230V AC
Physical characteristics
Design:
Rackmount
Fans:
(2) 40 x 40 mm
Chassis design:
Metal
Operating temperature [°C]:
0 up to 50
Width [mm]:
440
Height [mm]:
44
Depth [mm]:
180
General
Switchning capacity [Gbps]:
8,8
MAC address table:
8000
Jumbo frame [Bytes]:
10240
Packet forwarding rate [Mpps]:
6,55
Product description

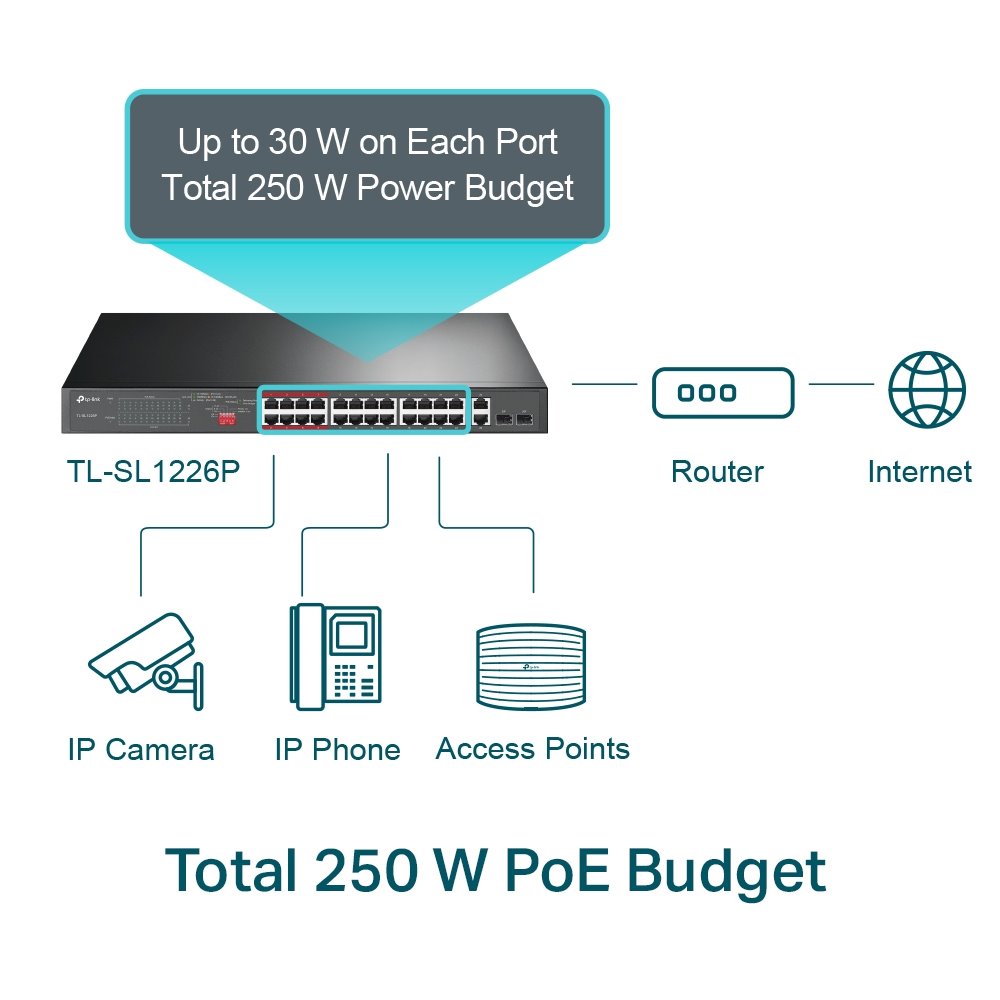

TLSL1226P is the ideal switch for easy installation without management. The device has 24x 10/100Mbps ethernet POE ports with 802.3af/at support.
Thanks to the switch buttons on the front side you can extend POE up to 250m for 3x8 port groups (link speed 10Mbps in this case). You can also set the priority for ports 1-8 to reach maximal quality and availability of connected devices. The ports can be isolated from each other too, to avoid broadcast storms and to increase your network security.
Maximal POE budget is 250W with 30W per port limit. Intelligent Power Management automatically cuts lower ports' power to ensure high-priority ports' power supply.
There are 2x 10/100/1000Mbps ethernet ports for uplink and also 2x Combo SFP slots.
