TRITON 19 "piece 6U rack / 400 mm - spaced FLAT PACK

Name: TRITON 19 piece 6U rack / 400 mm - spaced FLAT PACK
Brand: Triton
SKU: 56792
Price: 127.73 EUR
Availability: OutOfStock

+5 more

TRITON 19 "piece 6U rack / 400 mm - spaced FLAT PACK

0/0

Recommended

Your price excl. VAT

105.56 EUR

Your price incl. VAT (21%)	127.73 EUR
blank

To order within 48h

PlzeňTo order within 48h

Externí sklad UNVTo order within 48h

Availability
at our branches

Manufacturer	Triton
Code	20093983
Part No.	RXA-06-AS4-CAX-A1
Warranty	24 months

Manufacturer's website

Compare Have a question? Suggest a change

You have a choice of 4 variantscompare all

RXA-06-AS4-CAX-A1

105.56 EUR

To order within 48h

TRITON 19 "piece rack 4U / 400 mm - spaced FLAT PACK

RXA-04-AS4-CAX-A1

93.88 EUR

To order within 48h

TRITON 19 "piece cabinet 9U / 400 mm - spaced FLAT PACK

RXA-09-AS4-CAX-A1

124.19 EUR

To order within 48h

TRITON 19 "piece cabinet 12U / 400 mm - spaced FLAT PACK

12U

RXA-12-AS4-CAX-A1

142.79 EUR

To order within 48h

Parameters

GPSR

Product description

Parameter	Value
The type of data cabinet	Wall 19 "
Rack height (U) / total height	6U / 370 mm
The width of the cabinet (mm)	600
Cabinet depth (mm)	400

Specifications:

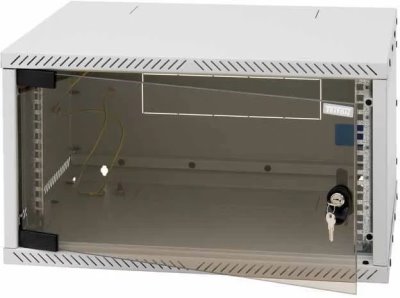

Wall demountable cabinet RXA piece 6U, depth 400 mm

RXA wall-mounted cabinet represents the conception called. Flat-Pack, which is demountable cabinet that is supplied disassembled.

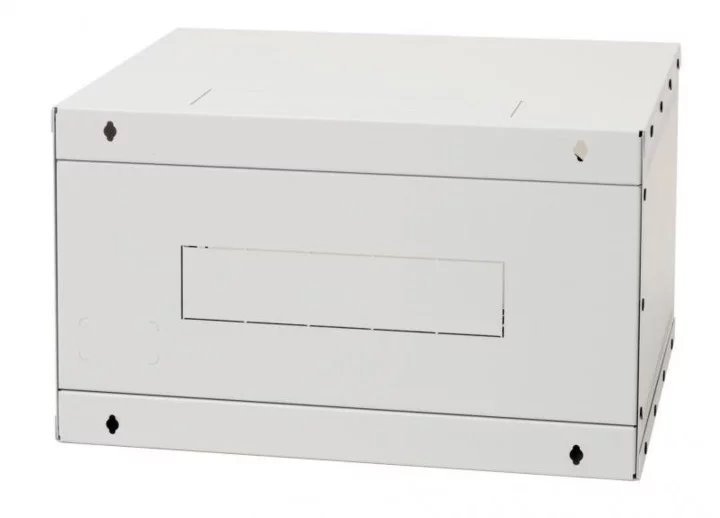

The rack is hung directly on the wall

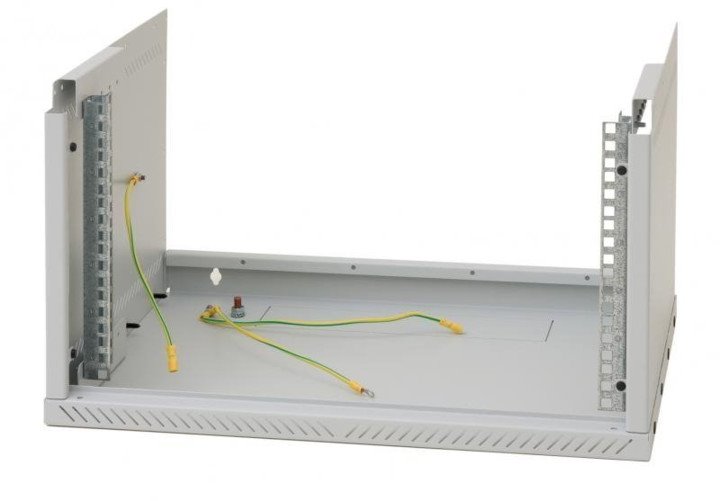

Cabinet includes two adjustable vertical rails
Cabinet construction:
- The distributor of parts joined by plastic pins
- Glass doors with safety tempered glass 4 mm.
Permissible load of the door is max. 10 kg
The minimum coating thickness is 65 micron
Cabinets are intended for installation of data and telecommunication devices and their distribution systems

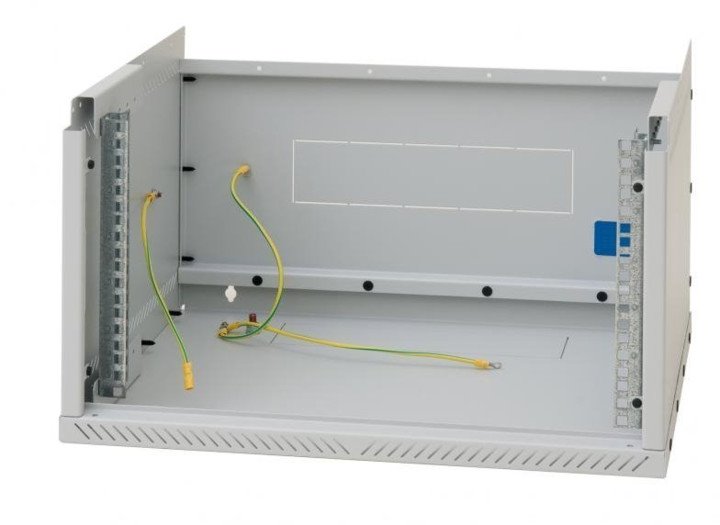

All parts are connected with earthing cables that have to be properly fixed and inserted into konektorůpo entire duration of the cabinet
At the bottom of the rack is placed M8 screw as the main earthing point
Cable openings covered with breakout blanking panels are placed in the top and bottom of the cabinet rear side, others are on the top and bottom side of cabinet.

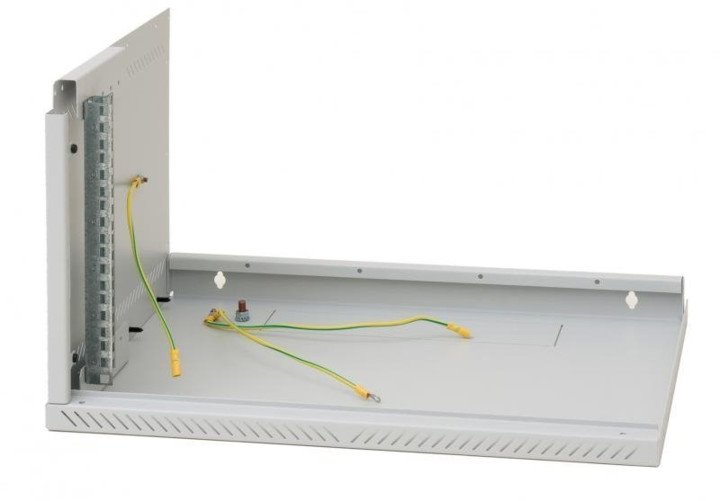

The concept FLAT-PACK:

Reduces cost of transportation and storage. This, together with a unique construction contributes to the attractive price while keeping all functional characteristics.

Installation:

Thanks to the unique design, installation RXA matter of minutes and requires almost no tools (Thorx T25). For connection of individual parts used plastic plug pins.

Doors:

These cabinets are supplied only with a glass door with a lock.

Adjustable vertical bar:

One pair of 19 "vertical rails are adjustable in steps in front of the cabinet. This facilitates the installation and configuration of connecting cables.

Breakout plugs:

At the top, bottom and rear of the cabinet are prepared openings covered with breakout cable plugs.

Flexible door opening:

The hinge system allows for convenient access.

The lock on the door:

Safely the cabinet and protects the installed devices.

GPSR

Contact:
Tritón Pardubice, spol. s r. o.
č.p. 130, 530 02 Starý Mateřov
obchod@triton.cz

Bussines information

Discomp s.r.o., +420 377 221 177, sales@discomp.cz

Technical parameters

Physical characteristics

Recommended load [kg]: 25

Protection class: IP30

Size: 19"

Purpose: Indoor

"U" positions: 6

Weight [kg]: 13,3

Width [mm]: 550

Height [mm]: 320

Depth [mm]: 400

Door panel: Glass

Mountable: Yes

Color: Grey

General

Cabinet type: Wall-mounted
