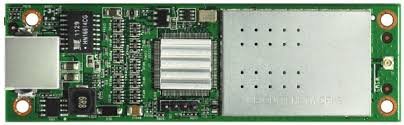

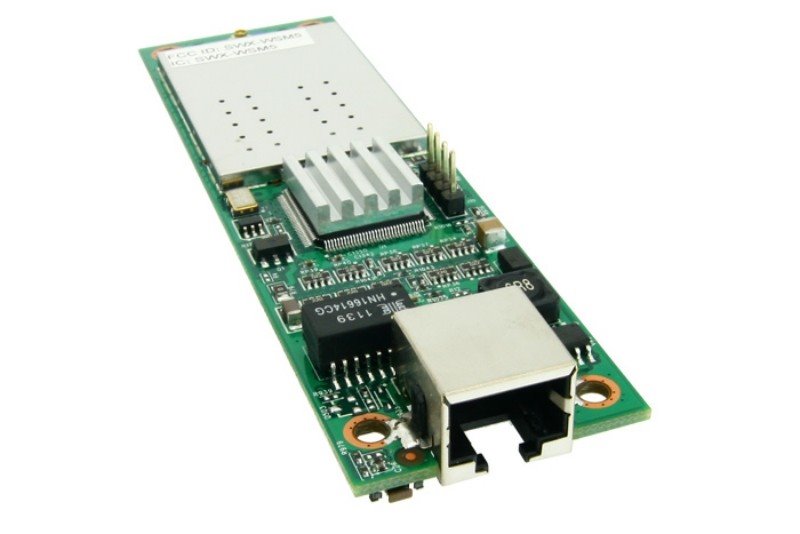

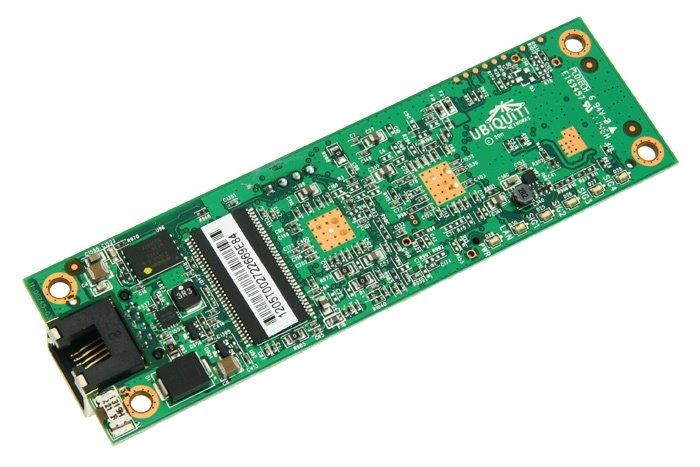

Ubiquiti AirMax WispStation M5 high power 802.11a/n, AirMAX
We are sorry, this product is no longer in our offer.
PCU5E-1YW-MS
0.61 EUR excl. VAT
0.74 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.69 EUR excl. VAT
4.46 EUR incl. VAT
In Stock
Parameters
Download
Video
GPSR
Technical parameters
Wireless features
Wireless frequency:
5 GHz
WiFi standards:
airMAX, 802.11a, 802.11n
Transmission speed - 5GHz [Mb/s]:
150
Tx power 5GHz [dBm]:
23
Security:
WPA2 AES
5GHz MIMO:
1 x 1 SISO
Type of antenna:
Detachable
Detachable antennas:
1
Connectors and Interfaces
RF connectors:
(1) u.Fl
LAN speed:
(1) 10/100Mbps
Power
Power over Ethernet:
24V DC
PoE type:
PoE-In (only)
Max. power consumption [W]:
5
Physical characteristics
Purpose:
Indoor
Buttons:
Reset
Operating temperature [°C]:
-30 up to 75
Weight [g]:
24
Width [mm]:
23
Height [mm]:
15
Depth [mm]:
107
Hardware
CPU:
Atheros MIPS 24KC
CPU frequency [MHz]:
400
RAM [MB]:
32
Software
Operating mode:
Client, Repeater, AP Router, Access Point, Client Router (wisp)
IPv6 support:
Transparent (bridge mode)
Default IP address:
192.168.1.20
Default login and password:
ubnt / ubnt
Product description
Introducing the WispStation™ M5, a long-range 5 GHz Station designed specifically for the WISP OEM Market. The WISP Station M5 features rock solid performance, full Linux SDK support, and 15 kV ESD Protection at RF and Ethernet Ports.
Combined with Ubiquiti’s intuitive airOS™ interface and airMAX™(TDMA Protocol) technology, the WispStationM5 is a powerful, low-cost WISP OEM platform.
Download
CE Datasheet Návod k použitíGPSR
Ubiquiti International Holding B.V.
Ekkersrijt 3102, 5692 CC Son en Breugel
support@ui.com
Technical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.
