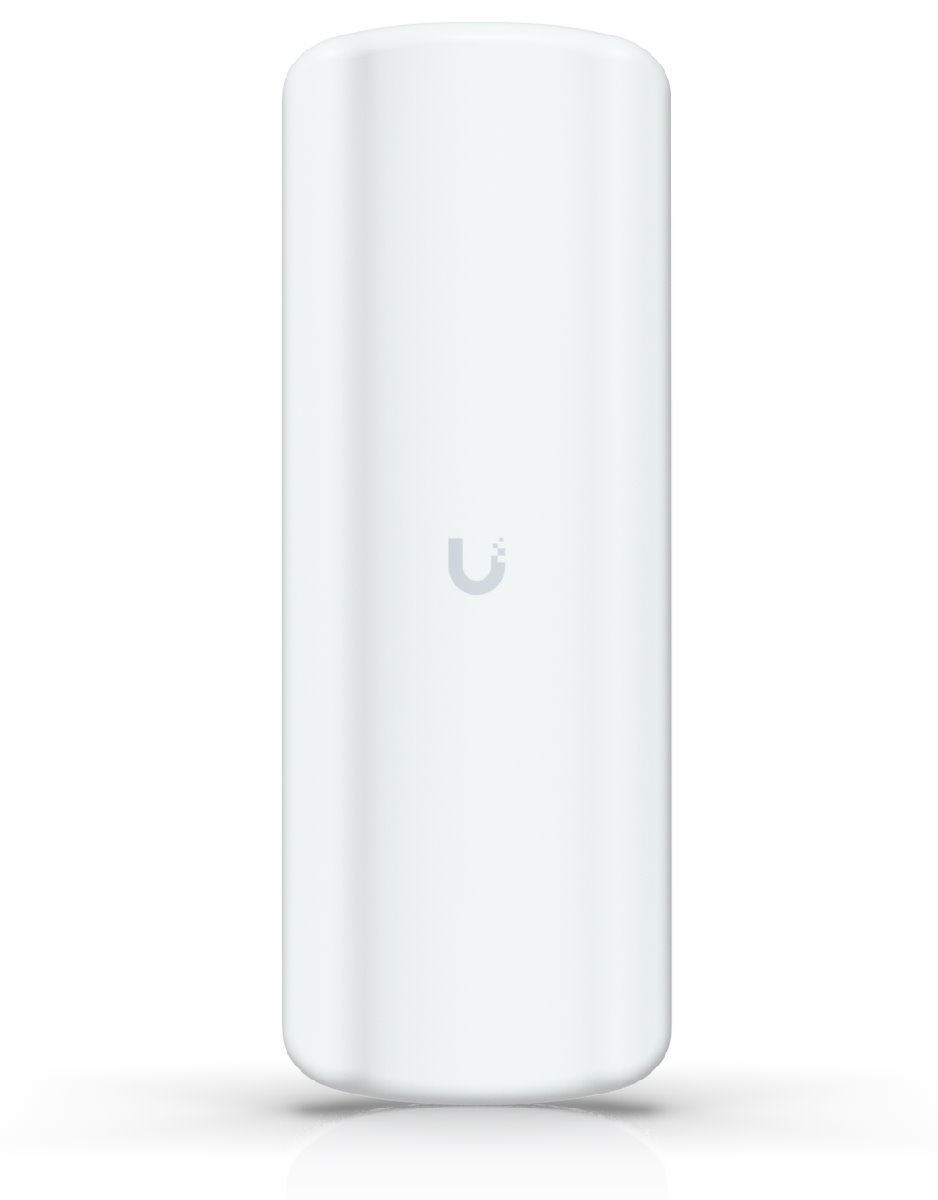

Ubiquiti Device Bridge Pro Sector
Your price excl. VAT
173.44 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 173.51 EUR |
| Your price incl. VAT (21%) | 209.95 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | 10904510 | |
| Part No. | UDB-Pro-Sector | |
| Warranty | 24 months | |
UDB-Pro
165.69 EUR excl. VAT
200.57 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.61 EUR excl. VAT
0.74 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.69 EUR excl. VAT
4.46 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Wireless features
Wireless frequency:
5 GHz
WiFi standards:
802.11n, 802.11a, 802.11ac
Transmission speed - 5GHz [Mb/s]:
400
Tx power 5GHz [dBm]:
25
Security:
WPA2 AES
Azimuth beam width (-6dB) [°]:
90
5GHz MIMO:
2 x 2
Type of antenna:
Built-in
Antenna gain [dBi]:
17
Connectors and Interfaces
LAN speed:
(1) 10/100/1000Mbps
Gigabit LAN:
Yes
Power
Power over Ethernet:
42 .. 57V DC
PoE type:
PoE-In (only)
Max. power consumption [W]:
6
Physical characteristics
Protection class:
IPX6
Purpose:
Outdoor
Buttons:
Reset
Operating temperature [°C]:
-40 up to 60
Weight [g]:
835
Width [mm]:
130
Height [mm]:
360
Depth [mm]:
71
Software
Operating mode:
Access Point
Product description
Device Bridge Pro Sector is a PTMP WiFi 5 access point from the UniFi device family. It operates in the 5 GHz band with a maximum modulation rate of 400 Mbps. The unit features a 90° sector antenna with a gain of 17 dBi and can connect up to 40+ client devices. A Gigabit Ethernet port is used for network connectivity and supports PoE input with a voltage range of 42.5–57 V DC. The device has a maximum power consumption of 6 W.
Key Features
Package Contents
Download
Datasheet Installation guideGPSR
