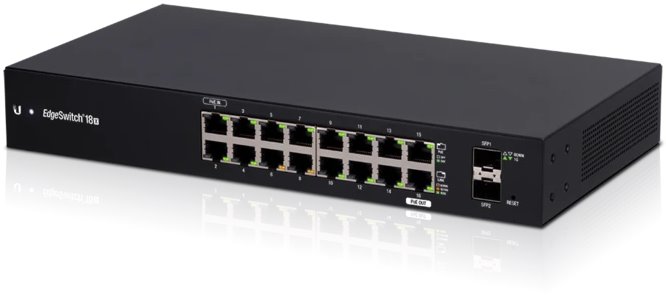

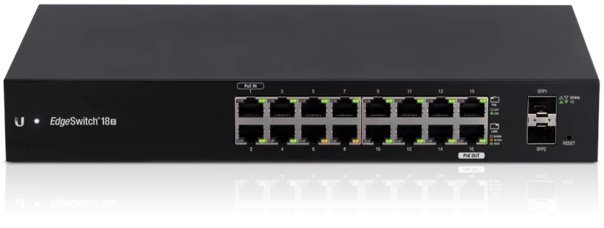

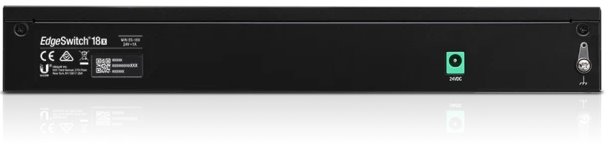

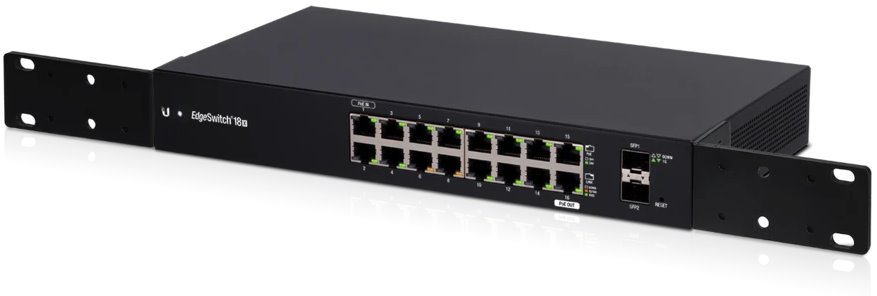

Ubiquiti EdgeSwitch 18X
Ubiquiti EdgeSwitch 18X
×
0/0
Temporarily unorderable
Your price excl. VAT
134.83 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 134.90 EUR |
| Your price incl. VAT (21%) | 163.23 EUR |
| blank |
Availability
at our branches
at our branches
Ordering from the internet is not permitted. For more information, please contact our sales department.
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | 10901749 | |
| Part No. | ES-18X | |
| Warranty | 24 months | |
PCU5E-1YW-MS
0.63 EUR excl. VAT
0.76 EUR incl. VAT
stiqtyfree:0
_17:
avail:0
infocode: avail
queu:
Expected 31.12.2025
PCU5E-5-MSC
3.78 EUR excl. VAT
4.57 EUR incl. VAT
stiqtyfree:469
_17:
avail:2
infocode: stock
queu:
In Stock
Parameters
Download
GPSR
Technical parameters
Connectors and Interfaces
LAN speed:
(16) 10/100/1000Mbps
Optical interfaces:
(2) 1000Mbps
Power
Power type:
PoE, DC connector
PoE type:
PoE-Out + PoE-In
PoE-Out standards:
Passive 24V
PoE Out ports:
1
PoE budget [W]:
15
Max. power consumption [W]:
14
Power via connector/terminal:
9 .. 30V DC
Physical characteristics
Design:
Desktop, Rackmount
Fans:
No
Chassis design:
Metal
Operating temperature [°C]:
-10 up to 50
Width [mm]:
300
Height [mm]:
44
Depth [mm]:
160
General
Switchning capacity [Gbps]:
36
MAC address table:
16000
Jumbo frame [Bytes]:
10240
Packet forwarding rate [Mpps]:
26,78
Software
Web management:
Yes
Management:
Web management
Features:
VLAN, QoS, DHCP snooping
Default IP address:
192.168.1.2
Default login and password:
ubnt / ubnt
Product description
Ideal for larger-scale WISP applications, the EdgeSwitch® 18X is an affordable high-performance switch with SFP ports and a fanless design. Sixteen Gigabit RJ45 ports offer copper connectivity with PoE input on port 1 and PoE passthrough on port 16. Two SFP ports offer fiber connectivity. The browser-based configuration interface offers intuitive control. Management is also available through the Ubiquiti® Network Management System (UNMS™).
